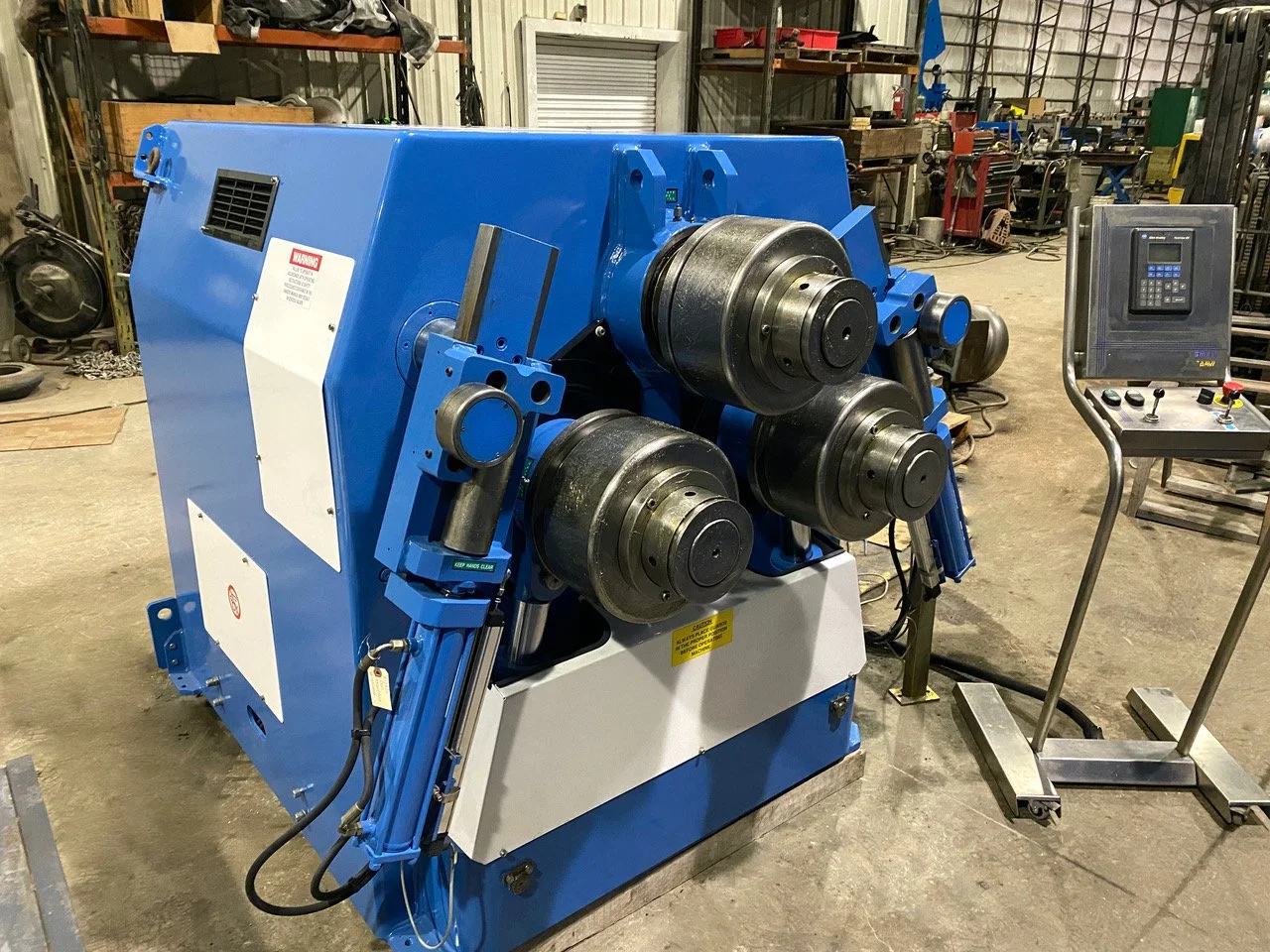

4" x 4" x 1/2" Davi Promau Horizontal & Vertical Angle Bending Roll

VIDEO: 4” x 4” x 1/2” Davi Promau Angle Bending Roll Under Power

  • Stock Number - 13828

    Manufacturer - Davi Promau

    Model - MCP3210

    Serial - 20320008

    Year - 2003

  • Currently positioned for vertical operation

    Can also operate in horizontal position

    Hydraulic guide rolls (up-down)

    Hydraulic tilting/angular guide rolls (toward-away)

    Bottom Rolls Hydraulic Power Rise & Fall Adjustment

    3-Axis Hydraulic Lateral Angle Guide Rolls (Side Rolls Rise/Fall & Swing In/Out)

    Roll Vari-Speed Control

    Initial Roll adjusted by motor drive with electric brake

    Leg In / Out Attachments

    With Read Out

    Allen-Bradley Panel View 300 Programable Controller (8 Function Keys, & Program Keys)

    Safety Power Shut Off trip wire

    (1) set of universal tooling

    (3) sets of pipe tooling

  • Angles, leg out - 4” x 4” x 1/2” ø 45”

    Angles, leg in - 4” x 4” x 3/8” ø 45”

    Channels, leg out - C 7”X14.75# ø 30”

    Channels, leg in - C 7”X14.75# ø 35”

    Flats, on edge - 4” x 1 ø 28” ø 28”

    Flats, on flat - 8” x 1” 3/8 ø 24”

    Rounds - 2-5/16” ø 36”

    Squares - 2” 9/16 x 1 ø 27”

    Tube - 5” Schedule 10 ø 118”

    Pipe - 4” Schedule 40 ø 45”

    RPM - Infinitely Variable to within manufactures specifications

    Shaft diameter - 4-5/16" (10.954cm)

    Main drive motor - 18 hp (4 KW) 240/480 volts

    Volts - 240

    Phase - 3

    Approximate dimensions, vertical position - 72" LR x 69" FB x 60" H

    Operator Control Station - 19" FB x 20" LR x 55" H

    Approximate weight - 5,500 lbs

    Pallet of tooling - 1,500 lbs

  • This Model MCP-3210 Davi Promau angle bending roll was rarely used and is in excellent condition. It has an angle bending capacity of 4” x 4” x ½” and comes equipped with universal tooling and pipe tooling for 2”, 3”, 4” and 5” diameter pipe. This all hydraulic angle bending roll has powered roll drive, roll adjustment & guide rolls and is equipped with a programmable controller, variable speed control, digital readout and safety power shut off trip wire along with many other features.

    For questions or to schedule an inspection of this Davi MCP-3210 angle bending roll, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this Davi MCP-3210 angle bending roll, use the “Request Quote” button on this page.
