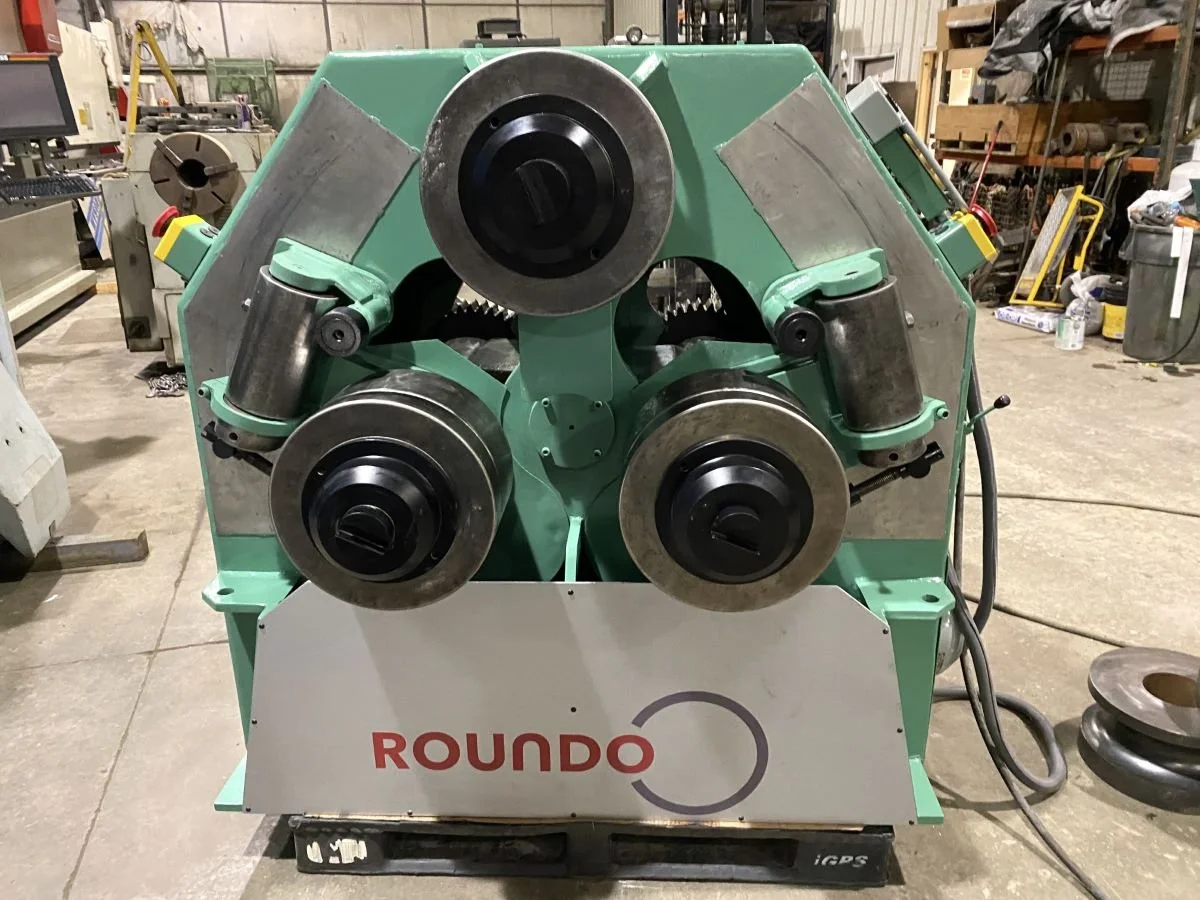

4.5″ X 4.5″ X .5″ ROUNDO HYDRAULIC ANGLE BENDING ROLL | MODEL R-5
VIDEO: Roundo R5 Angle Bending Roll Under Power
sold
-
Manufacturer: Roundo
Model Number: R-5
Serial Number: 822933
Model Year: 1982
Size / Capacity: 4.5″ x 4.5″ x .5″
Stock Number: 13813
-
New wire encoders & LED displays for roll positioning
Operator hand held control & stand
New emergency stop buttons
Vertical or horizontal operation
(1) set of tooling for angle
(1) set of tooling for 4.5″ diameter pipe
*Dimensions listed do not include operator control stand
-
Roll Diameter - 14-1/4"
Diameter of front (upper) shaft - 5.5"
Diameter of rear (lower) shafts - 4.72"
Rolling speed - 0 to 23 FPM
Angle, leg out - 4-1/2" x 4-1/2" x 1/2" (50" dia)
Angle, leg in - 4" x 4" x 3/8" (60" dia)
Tees, leg out - WT 4 x 29 (40" dia)
Tees, leg in - WT 4 x 29 (60" dia)
Tees, on edge - WT 4 x 12 (50" dia)
Flats on edge - 5" x 3/4" (36" dia)
Flats on flat - 10" x 1-3/16" (36" dia)
Square bar - 2-1/2" (26" dia)
Motor - 12 HP
Approximate dimensions, vertical position - 64" x 61" x 56" high
Approximate dimensions, horizontal position - 56" x 61" x 64" high
Approximate weight - 7,700 lbs.
