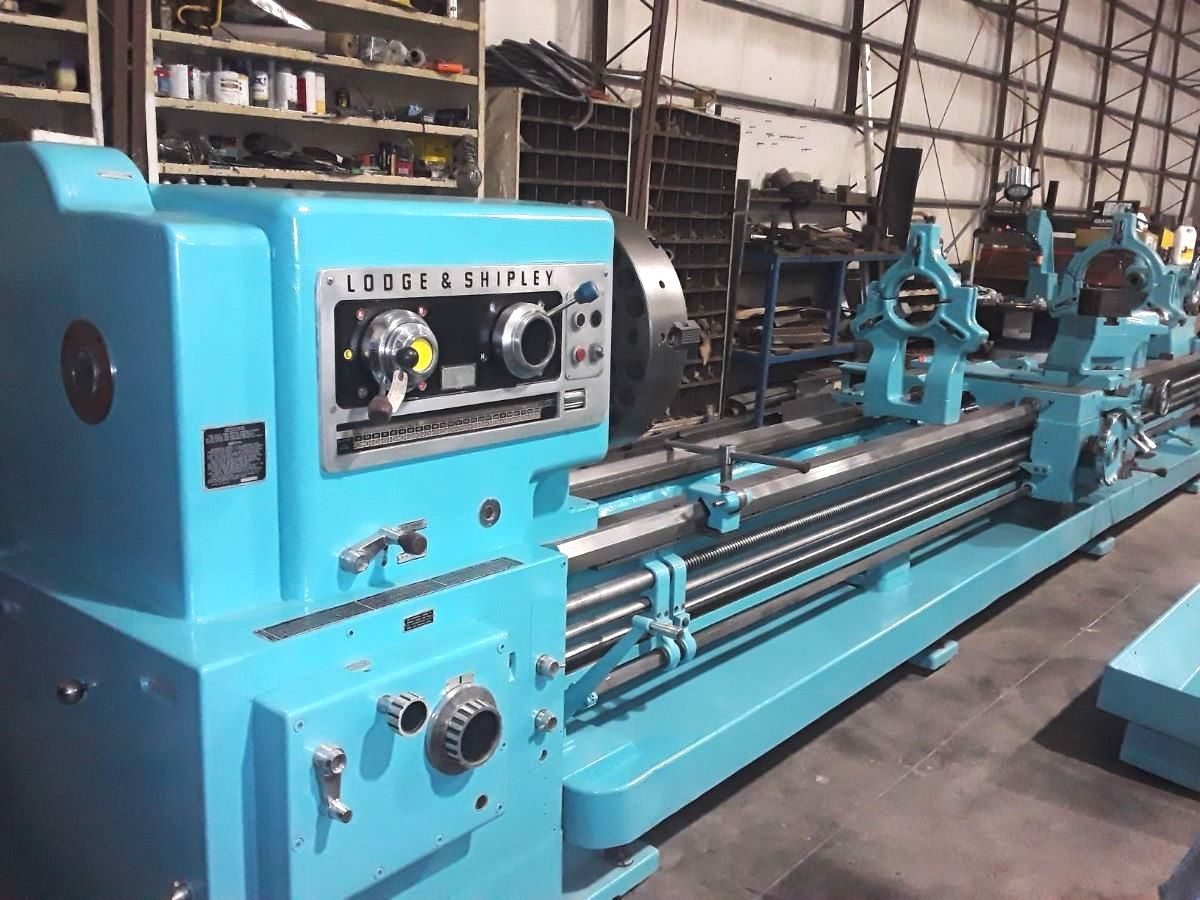

Manufacturer: Lodge & Shipley

Model Number: 2516/27 “Powerturn”

Serial Number: 49163

Model Year: 1974

Size / Capacity: 36″ x 192″

Stock Number: 13502

Taper attachment

(2) steady rests, (8″ and 14.5″)

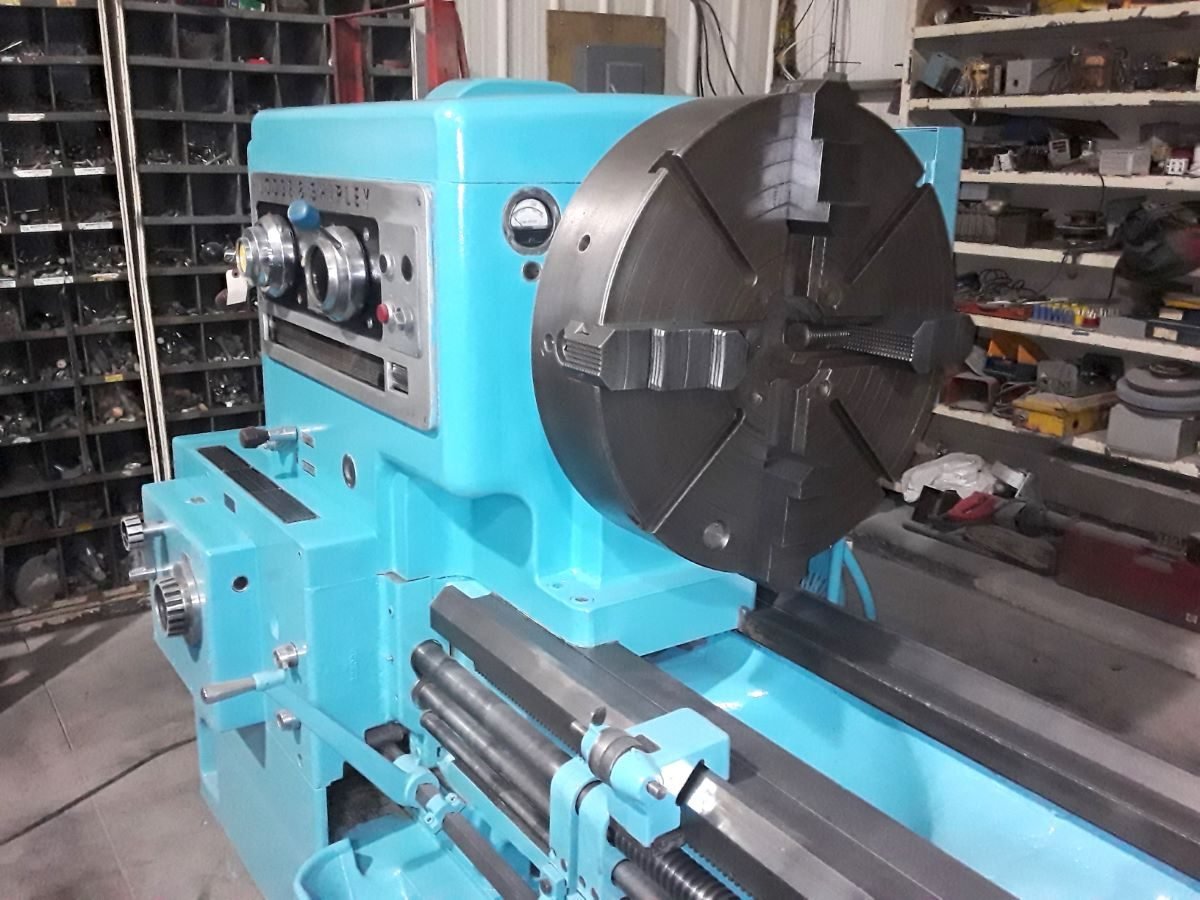

4-jaw chuck (24″)

Faceplate (17″)

Quick change tool post (many holders)

Thread dial

Coolant

Check out these lathes that came from the same facility:

>> 38″ x 96″ Lodge & Shipley “Superturn” lathe, 12.5″ hole

>> 20.5″ x 78″ Lodge & Shipley “AVS” lathe, Rebuilt by Monarch 2016

Swing over bed

36"

Swing over cross slide

27-1/2"

Distance between centers

192" (16')

Spindle bore diameter

2-1/2"

Spindle speeds (#)

(24) 18 to 1000 RPM

Spindle nose

D1-8 camlock

Feeds

(60) 0.0025 to 0.160

Threading

(60) 1-64 TPI

Leads

(60) 0.156 to 1.000

Compound slide travel

5-1/8"

Cross slide travel

20"

Bed width

21-1/4"

Leadscrew diameter

2"

Leadscrew pitch

2 TPI

Tailstock quill diameter

4"

Tailstock quill travel

11"

Tailstock quill taper

#5 MT

Motor

25 HP / 1760 RPM

Volts

230 / 460

Phase

3

Cycles

60

Amps

58/29

Approximate dimensions

24' 2" long x72" wide x 66" high

Approximate weight

20,000 lbs.
