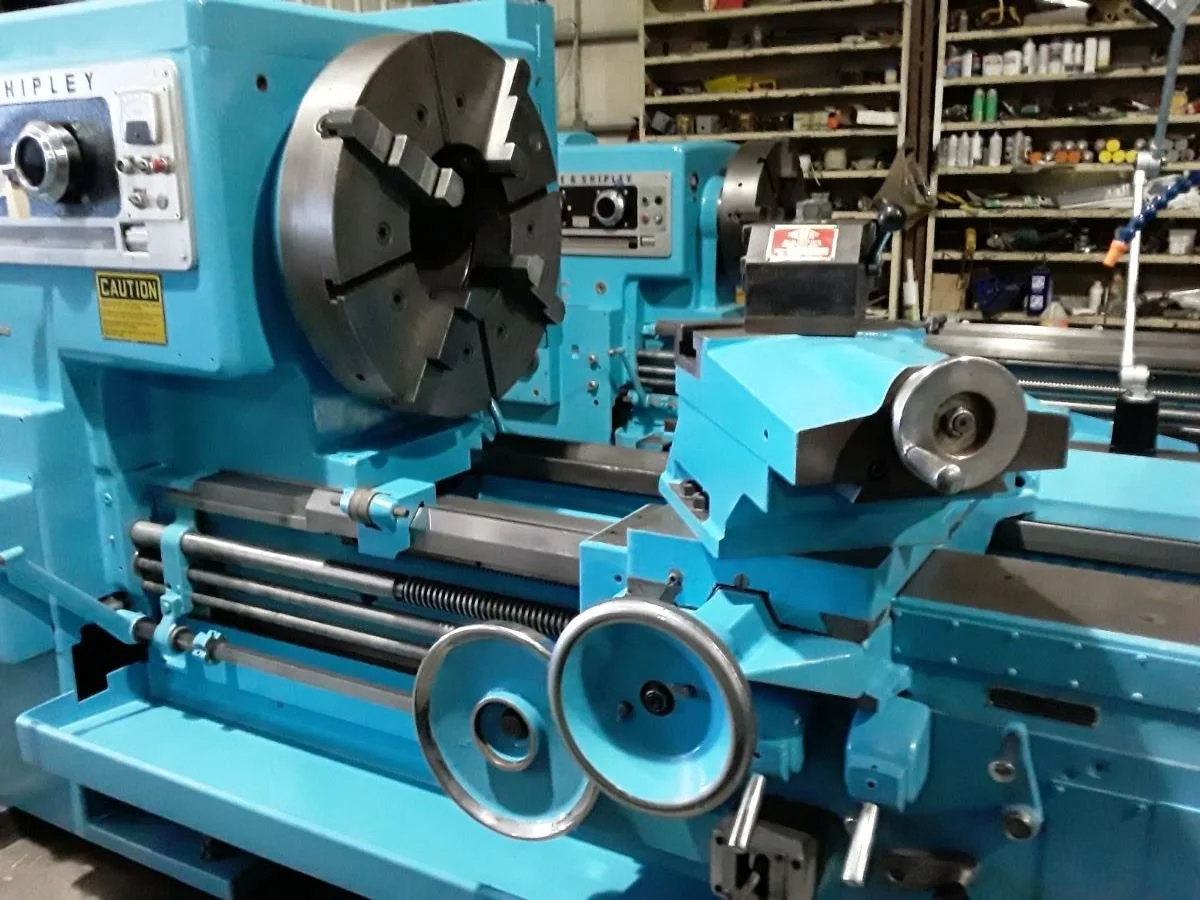

Manufacturer: Lodge & Shipley

Model Number: 2XE 3220-25 “Superturn”

Serial Number: 49164

Model Year: 1974

Size / Capacity: 38″ x 96″

Stock Number: 13500

(2) 28″ chucks, front & back of headstock, 12.5″ hole

30-1/4″ Faceplate with 12.5″ hole

Taper attachment

20-1/2″ Steady rest

Follow rest

KDK quick change tool post (many holders)

Microcarriage stop

Thread dial

Chuck guard

Movable rear splash guard

Coolant

Chip pan

Two-speed tailstock

Check out these lathes that came from the same facility:

>> 36″ x 192″ Lodge & Shipley “Powerturn” lathe, 12.5″ hole

>> 20.5″ x 78″ Lodge & Shipley “AVS” lathe, Rebuilt by Monarch 2016

Swing over bed

37-1/2"

Swing over cross slide

29-1/2"

Swing over gap

52-1/2"

Length of gap in front of spindle nose

26-1/2"

Distance between centers

96"

Spindle bore diameter

12-1/2"

Spindle speeds

(32) 5-600 RPM

Feeds

(60) 0.0025 to 0.160

Threading

(60) 1-64 TPI

Bed width

25-1/4"

Leadscrew diameter

2"

Leadscrew pitch

2 TPI

Tailstock quill diameter

6"

Tailstock quill travel

11"

Tailstock quill taper

#6 MT

Motor

40 HP / 1760 RPM

Volts

230 / 460

Phase

3

Cycles

60

Amps

99 / 49.5

Approximate dimensions

18' x 81" x 77" high

Approximate weight

22,000 lbs.
