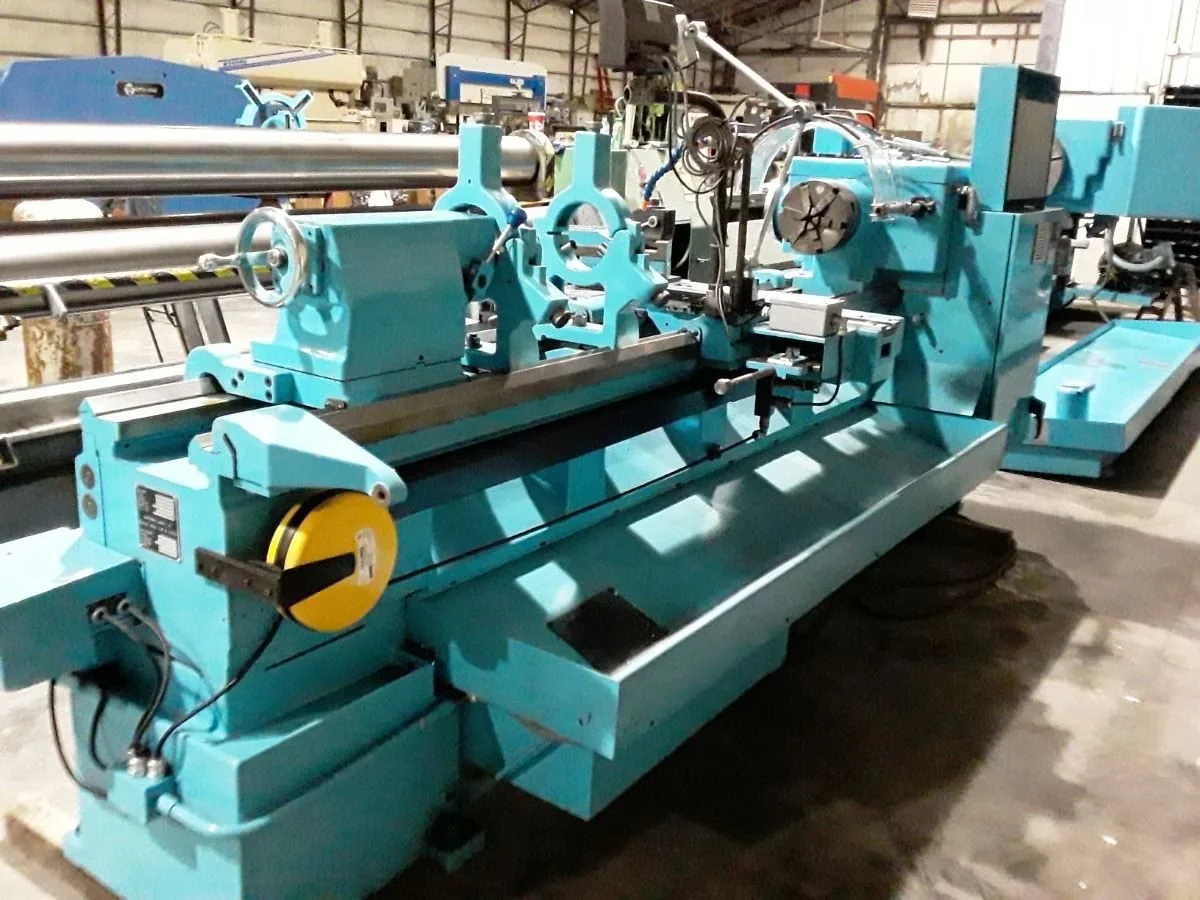

Manufacturer: Lodge & Shipley

Model Number: AVS 2013X78

Serial Number: 49162-R

Model Year: Rebuilt 2016

Size / Capacity: 20.5″ x 78″

Stock Number: 13501

Jenix DSC800 digitial readout

Variable speed spindle drive

Taper attachment

(2) 6″ diameter steady rests

(2) Faceplates (9-3/4″ and 15″)

Follow rest

Microcarriage stop

KDK quick change toolpost

Large assortment of tool holders

Hardinge brand collet closer

Large quantity of collets

3-jaw Cushman chuck (10″)

4-jaw Cushman chuck (12″)

6-jaw chuck (10″)

Thread dial

Coolant

Remanufactured by Monarch in 2016 ($69,000) including electrical system upgrade, mechanical upgrade, bed & carriage reground, lubrication lines and factory paint.

This one owner machine is in exceptional condition and came from the maintenance shop of an energy production facility.

Swing over bedways

20.5"

Swing over cross slide

13.5"

Distance between centers

78"

Spindle bore diameter

2.05"

Spindle nose

D1-6 camlock

Spindle speeds, low range

0-200 RPM

Spindle speeds, med range

70-550 RPM

Spindle speeds, high range

300-1500 RPM

Threading

(60) 1-64 TPI

Feeds

(60) 2.54-163

Cross slide travel

12-1/4"

Compound travel

4"

Leadscrew diameter, pitch

1-1/2", 4 TPI

Bed width

16-1/4"

Tailstock quill diameter

3-5/8"

Tailstock quill travel

6"

Tailstock quill taper

#5 MT

Motor

20 HP / 1770 RPM

Volts

460

Phase

3

Cycles

60

Amps

26

Approximate dimensions

154" x 47" x 70" high

Approximate weight

10,000 lbs.
