(2) foot pedal controls

Semi-automatic length stop system

Rated punch tonnage

110

Punch stroke

3/8" to 2" (infinitely adjustable)

Punch capacity

1-1/4" x 1"

Punch throat depth

20"

Punch strokes per minute

22

Rated shear tonnage

140

Flat bar shear capacity

20" x 5/8"; 16" x 3/4"; 12" x 1"

Flat bar shear length

20-1/4"

Flat bar shear working height

28-3/8"

Angle shear capacity, 90 degree

6" x 6 " x 1/2"

Angle shear capacity, 45 degree

4" x 4" x 1/2"

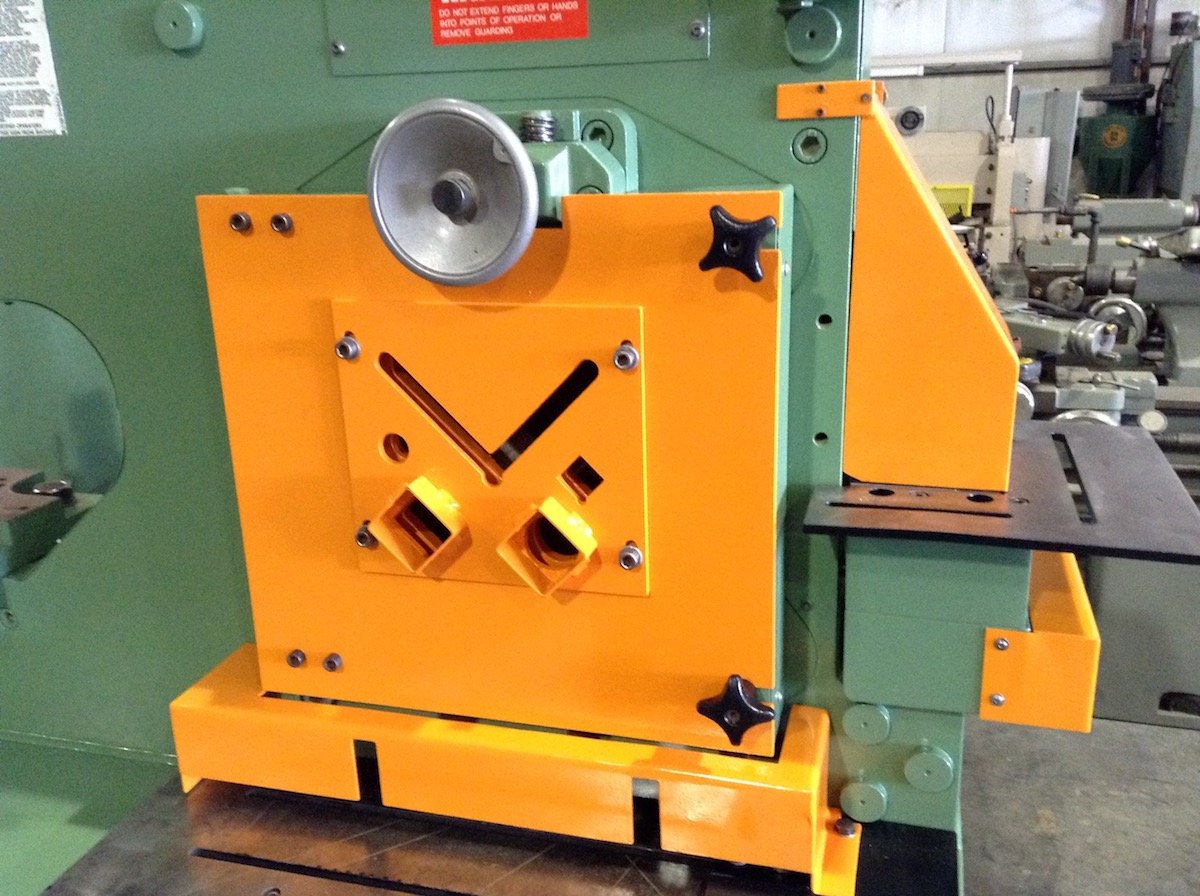

Round bar capacity

2" and 1"

Square bar capacity

2" and 1-3/16"

Notcher capacity, plate

1/2" square, 1/2" triangular

Notcher capacity, angle

3" x 3/8" square, 3" x 3/8" triangular

Notch width

2-9/16" square

Notch depth

3-5/16" square, 2-9/16" triangular

Notch station working height

45-1/2" to center of blades

I-beams

6" H x 12.5 lbs

Flanges

7" H x 14.75 lbs

Oil capacity

28 gallons

Motor

10 HP (7.5 KW)

Volts

230 / 460

Phase

3

Cycles

60

Amps

30.8 / 15.4

Approximate dimensions

78" x 41" x 82" high

Approximate weight

6,500 lbs.
