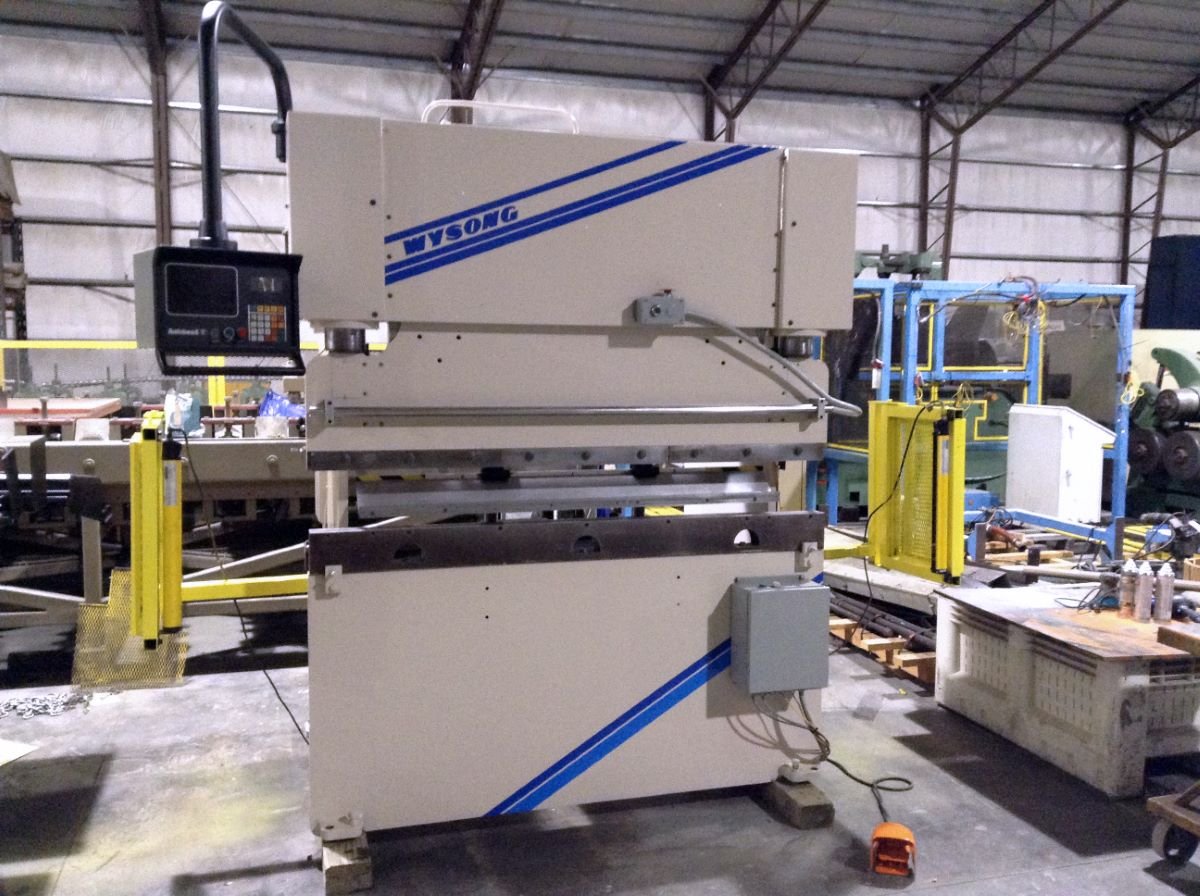

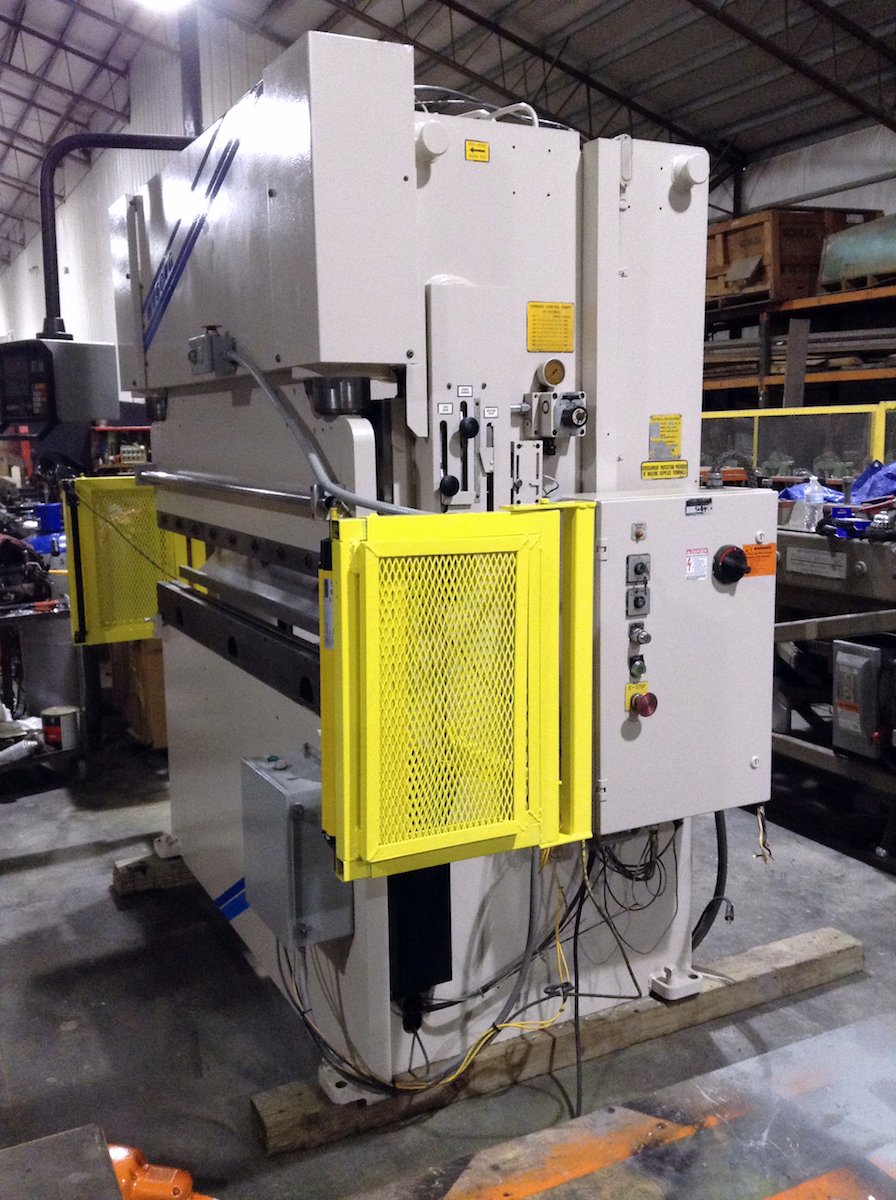

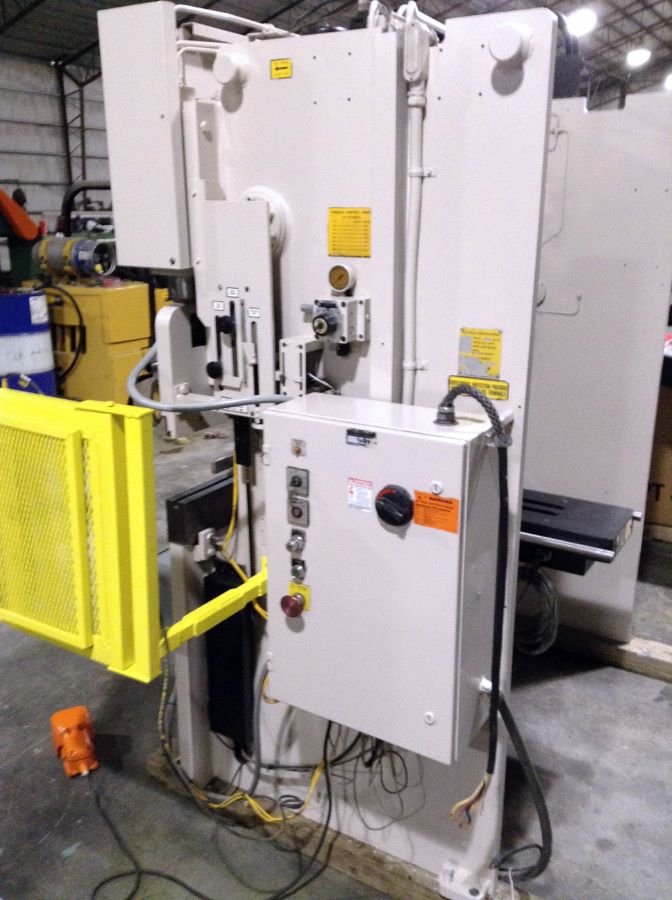

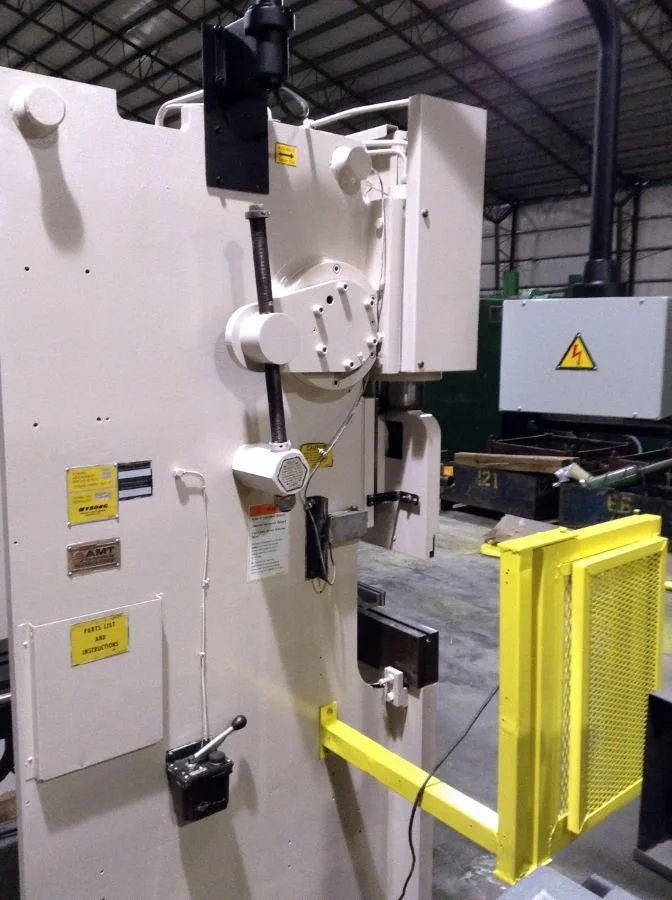

60 ton Wysong CNC Hydraulic Press Brake, MTH60-72


sold

  • Manufacturer: Wysong

    Model Number: MTH60-72

    Serial Number: MT1-220

    Model Year: 2000

    Size / Capacity: 60 ton

    Stock Number: 13367

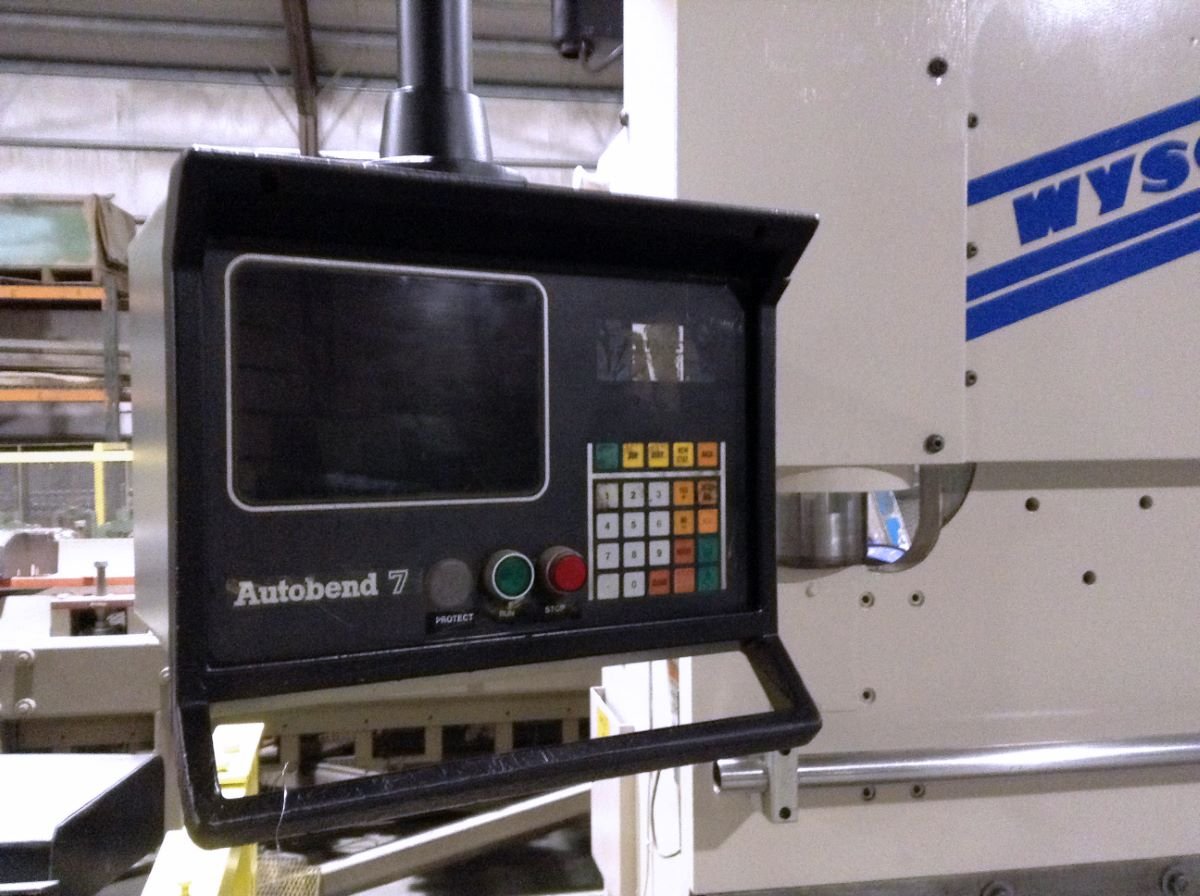

  • Hurco Autobend 7 CNC control

    Back gauge

    Light curtains

  • Tonnage

    60

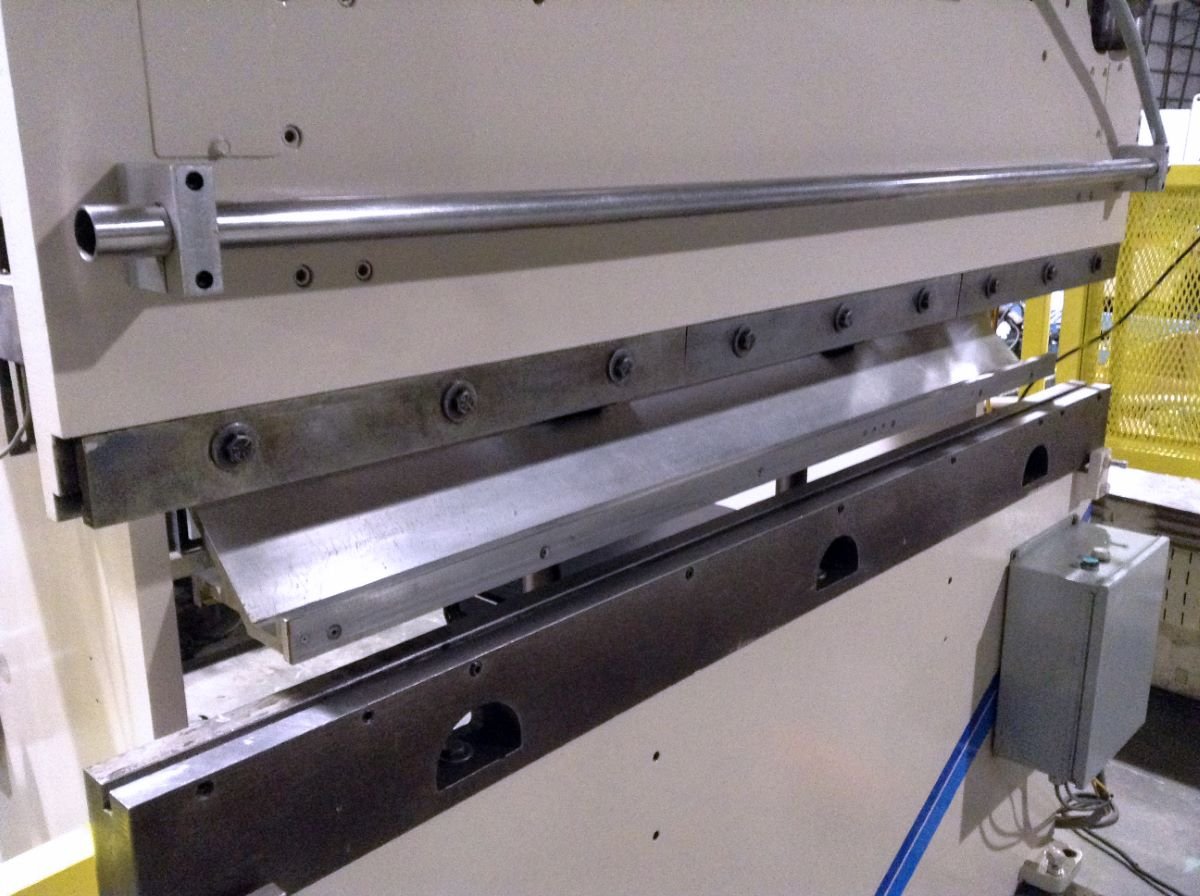

    Length of bed & ram

    72"

    Distance between housings

    62"

    Bending capacity, 6' length

    6' x 10 gauge, mild steel

    Bending capacity, 5' length

    5' x 7 gauge, mild steel

    Stroke

    6"

    Adjustment

    9"

    Open height

    15"

    Shut height

    9"

    Throat depth

    6''

    Approach speed

    300 IPM

    Pressing speed

    20 IPM

    Return speed

    215 IPM

    Oil capacity

    15 gallons

    Motor

    7.5 HP / 1760 RPM

    Volts

    208-230/460

    Cycles

    60 Hz

    Amps

    22.2 – 21.6 / 10.8

    Approximate dimensions

    110" x 67" x 105" high

    Approximate weight

    6,200 lbs.
