Manufacturer: Finn Power

Model Number: FPB 80-3050-U2H AA

Serial Number: 1281

Model Year: 2000

Size / Capacity: 90 ton x 10′

Stock Number: 13807

Cybelec DNC800 4-axis CNC

Pendant arm control

Control axes: X, R, Y1, Y2

Pedestal control stand

Foot pedal control

Wila manual crowning

Rear safety enclosure

Safety side guards

(2) front material supports

with squaring bar

manual adjustment (up & down)

Manuals

TOOLING AVAILABLE

Capacity - 90 tons (800 kN)

Overall length of bed & ram - 120.07" (3050 mm)

Distance between housings - 100.39" (2550 mm)

Stroke length - 7.9" (200 mm)

Throat depth - 9.84" (250 mm)

Throat height - 16.34" (415 mm)

Throat height, without table - 20.08" (510 mm)

Bed width - 3.54" (90 mm)

Approach speed - 18.9 IPM (80 mm/s)

Pressing speed - 2.36 IPM (10 mm/s)

Return speed - 21.26 IPM (90 mm/s)

Maximum stopping time - 96 ms

Maximum pressure - 28.5 MPa

Maximum working pressure - 27 MPa

Oil capacity - 39.62 gallons (150 L)

Motor - 10 HP (7.5 KW)

Transformer input voltage - 200-208-220-230-380-415-440-460-480

Approximate dimensions - 150" x 105" x 101" high

Shipping dimensions w/control to the side - 200" x 79" x 104" high

Approximate weight - 16,800 lbs

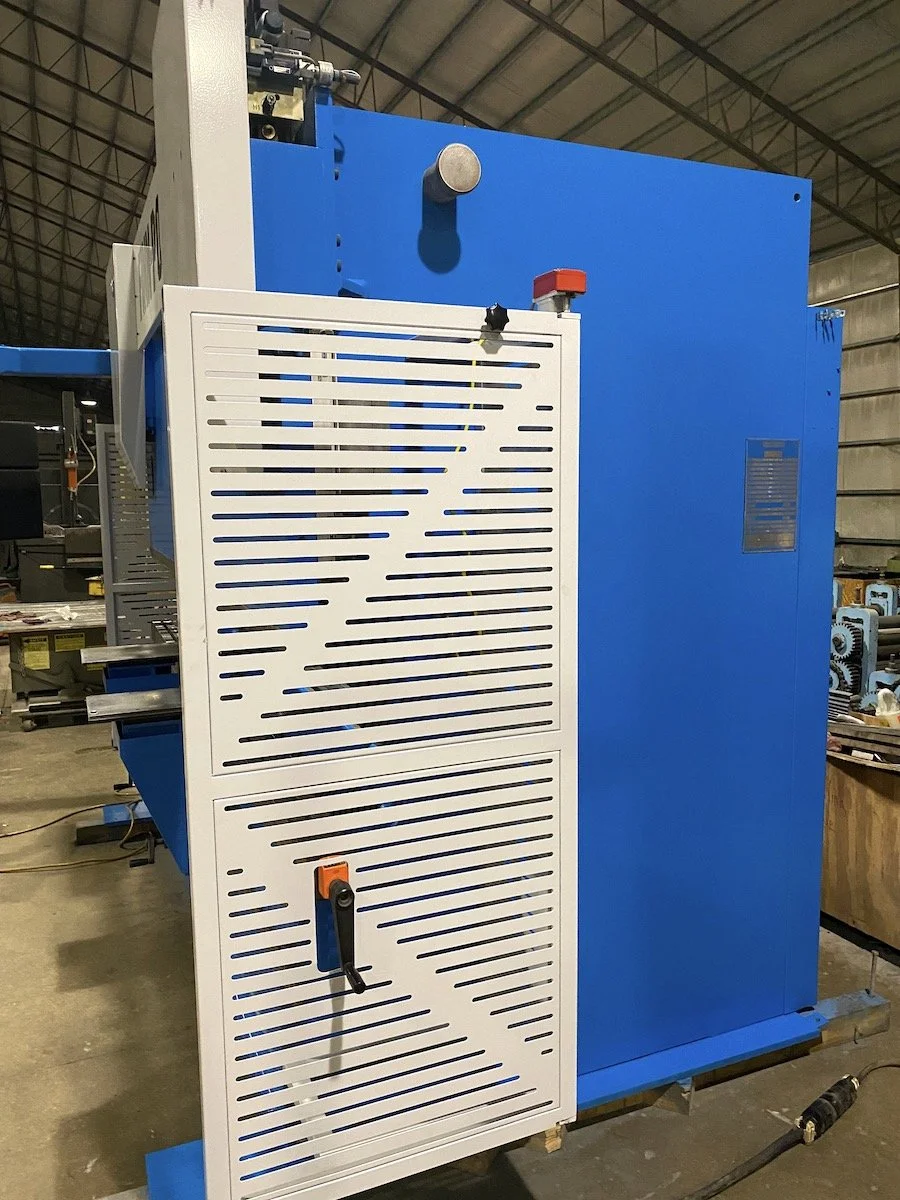

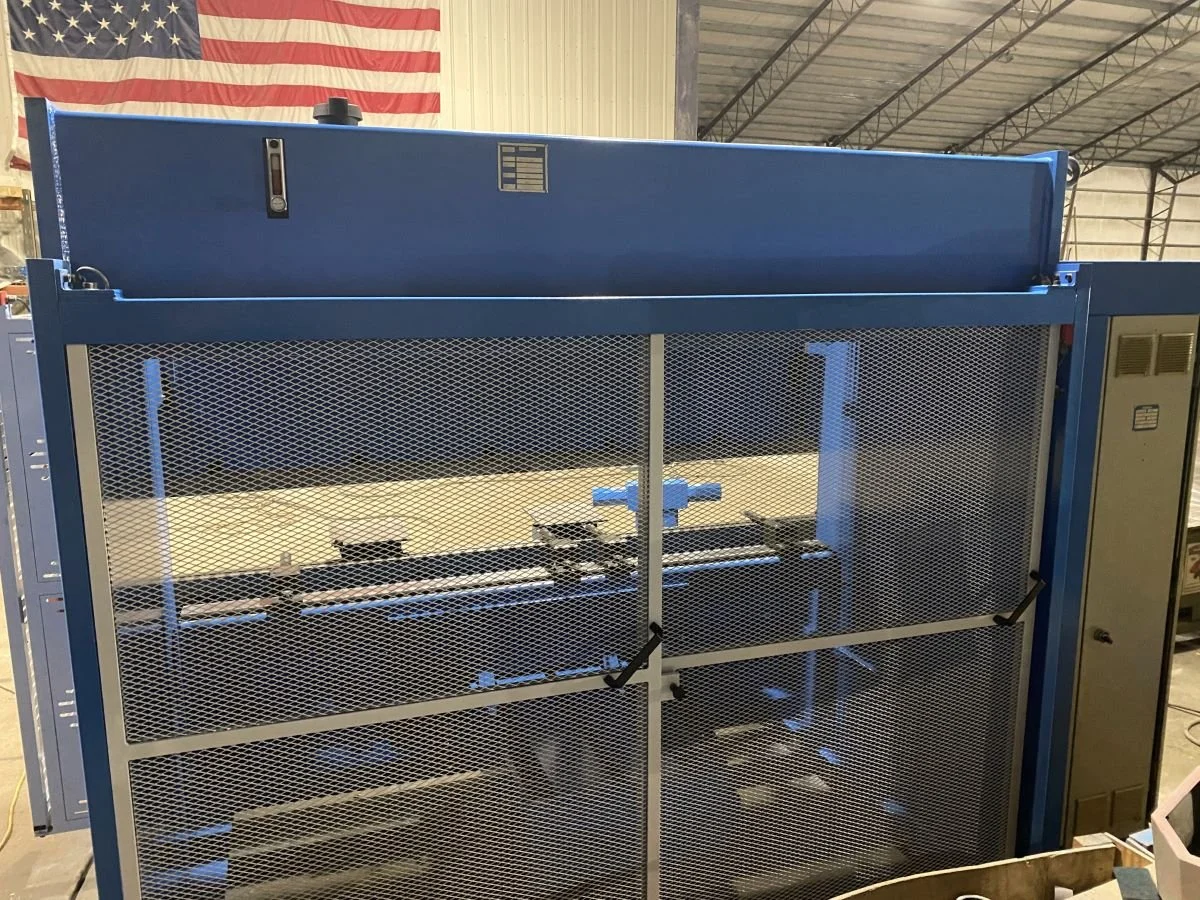

This Finn-Power CNC press brake is a 2000 Model FPB 80-3050. It is equipped with a Cybelec DNC800 4-axis CNC control, pedestal control stand, foot pedal control, Wila manual crowning, rear safety enclosure, safety side guards and (2) front material supports. Wila tooling is also available for this press brake.

For questions or to schedule an inspection of this 90 ton Finn-Power CNC press brake, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 90 ton Finn-Power CNC press brake, use the “Request Quote” button on this page.
