275 ton x 17’/12’ Pullmax 6-Axis CNC Press Brake
VIDEO: 275 Ton Pullmax CNC Press Brake Under Power
-
Manufacturer: Pullmax
Model Number: EKP-CNC 7400 PSG 275
Serial Number: 21470
Stock Number: 13858
Model Year: 1985
-
Cybelec DNC80 6-axis CNC control (Y1, Y2, X, R, Z1, Z2)
Light curtains
Manual crowning
Foot pedal control
-
Tons - 275
Overall length of bed & ram - 202.76" (5150 mm)
Distance between side frames - 147.64" (3750 mm)
Open height (tool space) - 21.65" (550 mm)
Stroke - 9.84" (250 mm)
Throat depth (gap) - 12.01" (305 mm)
Working height - 31.50" (800 mm)
Table width - 9.84" (250 mm)
Approach speed - 212.6 inch/min (90 mm/s)
Press speed - 21.3 inch/min (9.0 mm/s)
Return speed - 224.4 inch/min (95 mm/s)
Main pump motor - 24.8 HP (18.5 kW)
Back gauge servo motors (X, R axes) - 1.88 HP (1.4 kW)
Back gauge motor (Z-axis) - 0.02 HP (17 W)
Maximum operating pressure - 4786 PSI (33 MPA)
Approximate weight - 38,800 lbs
-

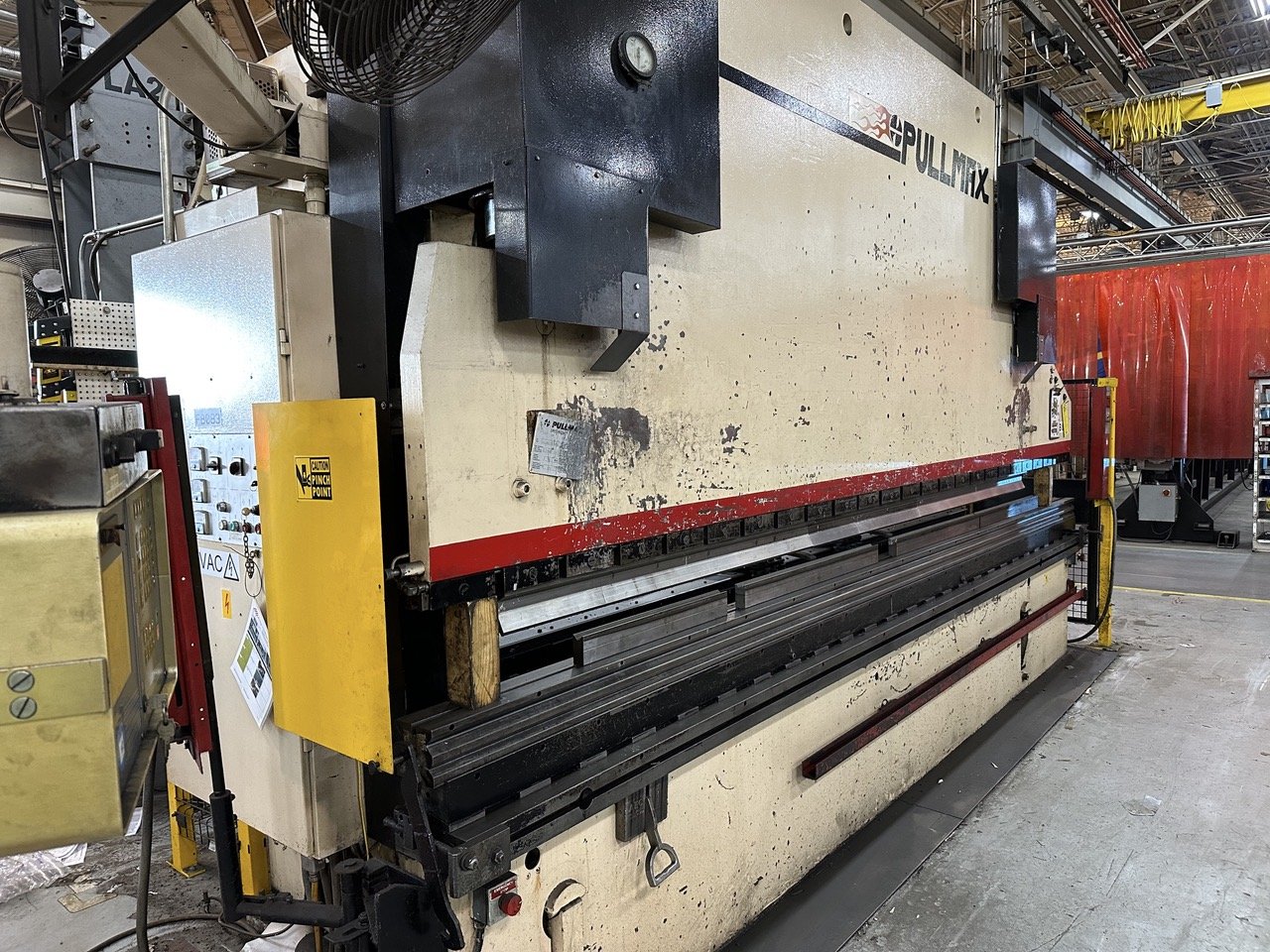

This 275 ton Pullmax CNC press brake is in excellent running condition and comes equipped with a Cybelec 6-axis CNC control, 4-axis back gauge, light curtains, manual crowning and foot pedal control. Overall bending length is 17’ with 12’ between the side frames.
For questions regarding this 275 ton Pullmax CNC press brake, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 275 ton Pullmax CNC press brake, use the “Request Quote” button on this page.
