Powered ram adjustment

One-shot lube system

Tonnage Gauge

Tonnage — 200

Overall length of bed and ram — 122”

Distance between housings — 102”

Ram stroke — 11-1/2”

Throat depth — 11-7/8”

Bed Height — 31-3/4”

Motor — 25 HP / 1760 RPM

Volts — 230/460

Hz — 60

Amps — 58/29

Approx dimension of pit required — 27" deep x 6" wide

Approximate dimensions —133" x 84" x 127" high

Approximate dimensions of bed — 123” x 62” x 16”

Approximate weight of brake w/o bed — 26,000 lbs.

Approximate weight of bed — 6,000 lbs

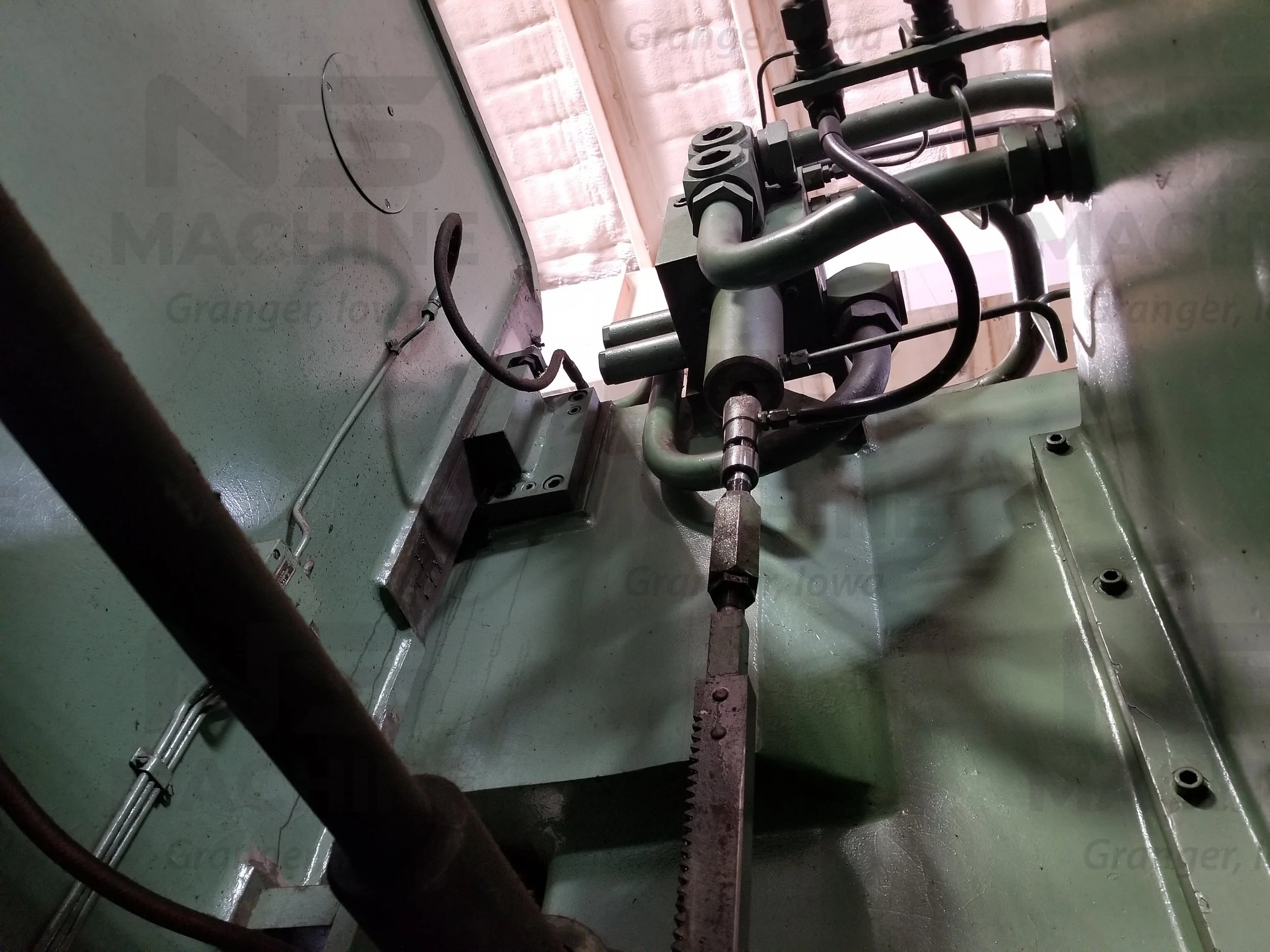

This Scharringhausen hydraulic press brake features a 25 HP motor which generates 200 tons of pressing power. It comes equipped with powered ram adjustment, a one shot lube system and a tonnage gauge. Overall length of the bed and ram is 122” with 102” between the side frames.

For questions or to schedule an inspection of this 200 ton Scharringhausen hydraulic press brake, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 200 ton Scharringhausen hydraulic press brake, use the “Request Quote” button on this page.
