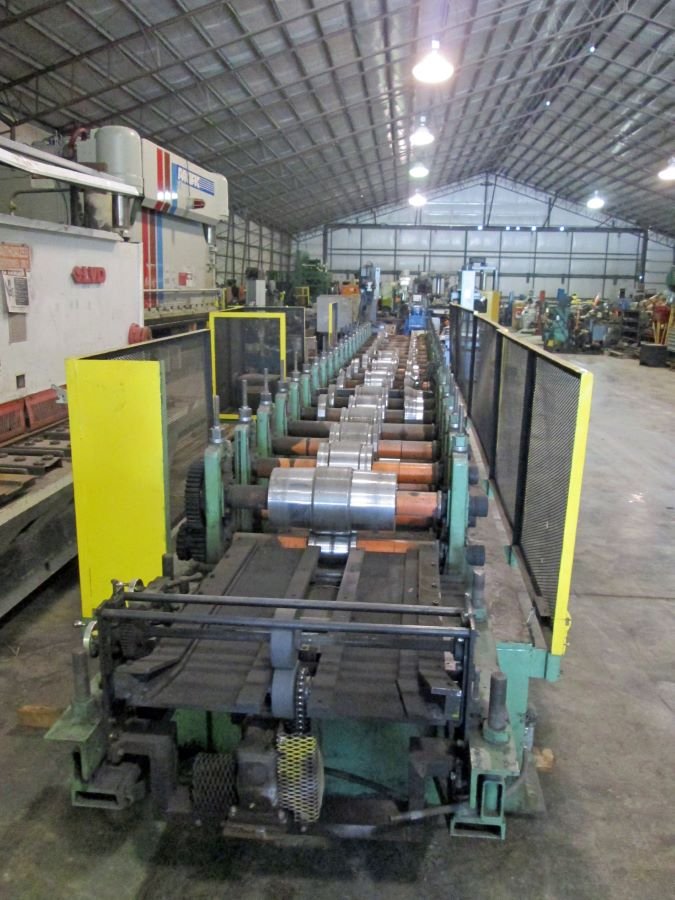

20-Stand Gifford-Hill Rollformer

sold

  • Manufacturer: Gifford-Hill

    Model Number: CAS4-30-20

    Serial Number: 4428M-0110.14

    Size: 20-Stand

    Stock Number: 13038

  • *This rollformer is for the production of roofing panels with a hidden fastener system and includes:

    Tooling for making roofing panels

    (6) sets of fastener dies

    Operations/Maintenance manual

  • Number of forming passes

    20

    Rollspace

    31"

    Arbor diameter

    2.490"

    Arbor key size

    1/2"

    Floor to base height

    27"

    Base to center of lower arbors

    8"

    Center of last pass to end of base

    9-1/2"

    Center of first pass to end of base

    12"

    Horizontal center distance

    18"

    Part center to rollspace edge

    15"

    Base to passline

    11-1/2"

    Rollspace edge to face of outboard stand

    3/4"

    Rollspace edge to face of inboard stand

    1-7/8"

    Stand width

    8-1/2"

    Material flow

    Right to left

    Motor

    20 HP / 1760 RPM

    Volts

    230 / 460

    Phase

    3

    Cycles

    60

    Amps

    52 / 26

    Approximate dimensions

    30' 4" x 67" x 66" high

    Approximate weight

    23,880 lbs.
