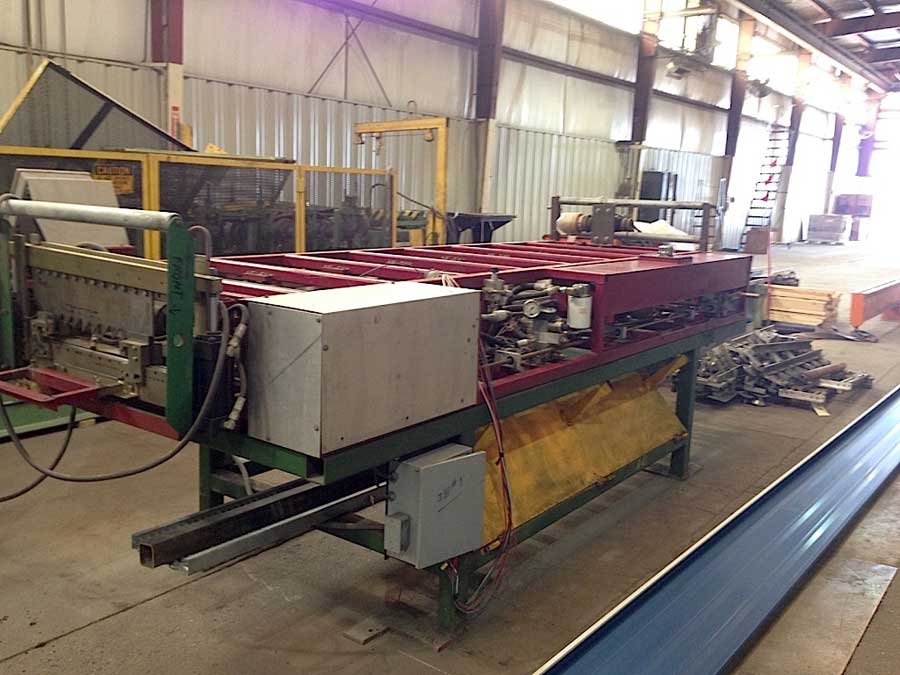

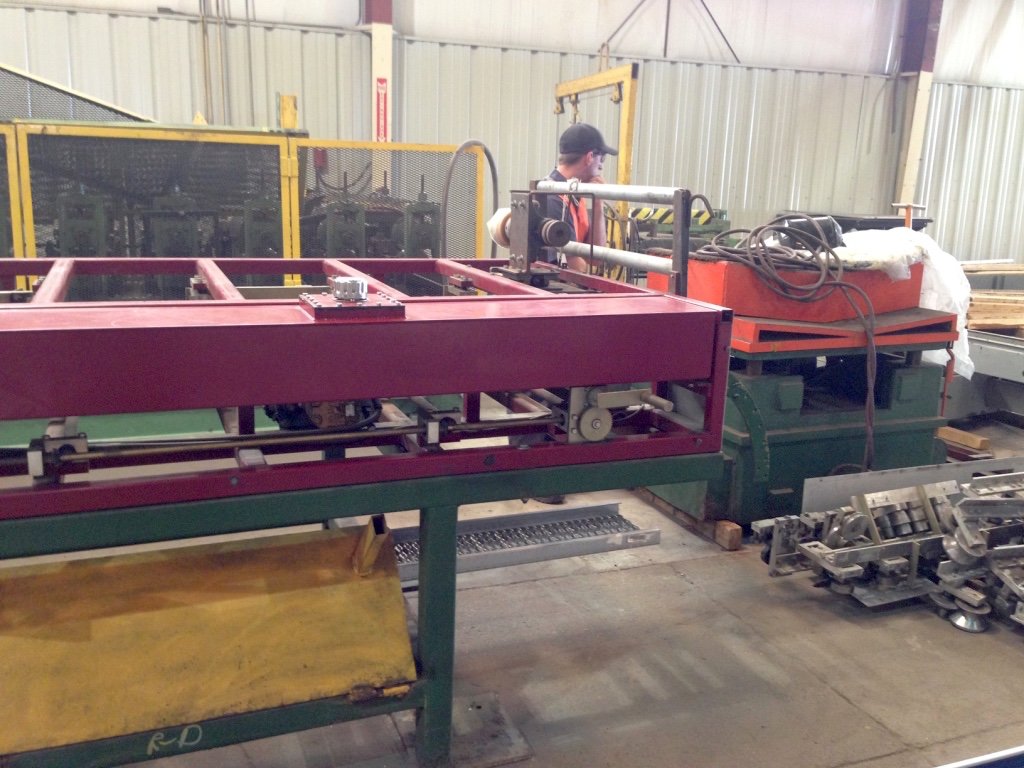

AMS MP400 Series Length Control System Operation & Maintenance Manual

(2) Sets of tooling [SS150, SS550]

Hydraulic drive

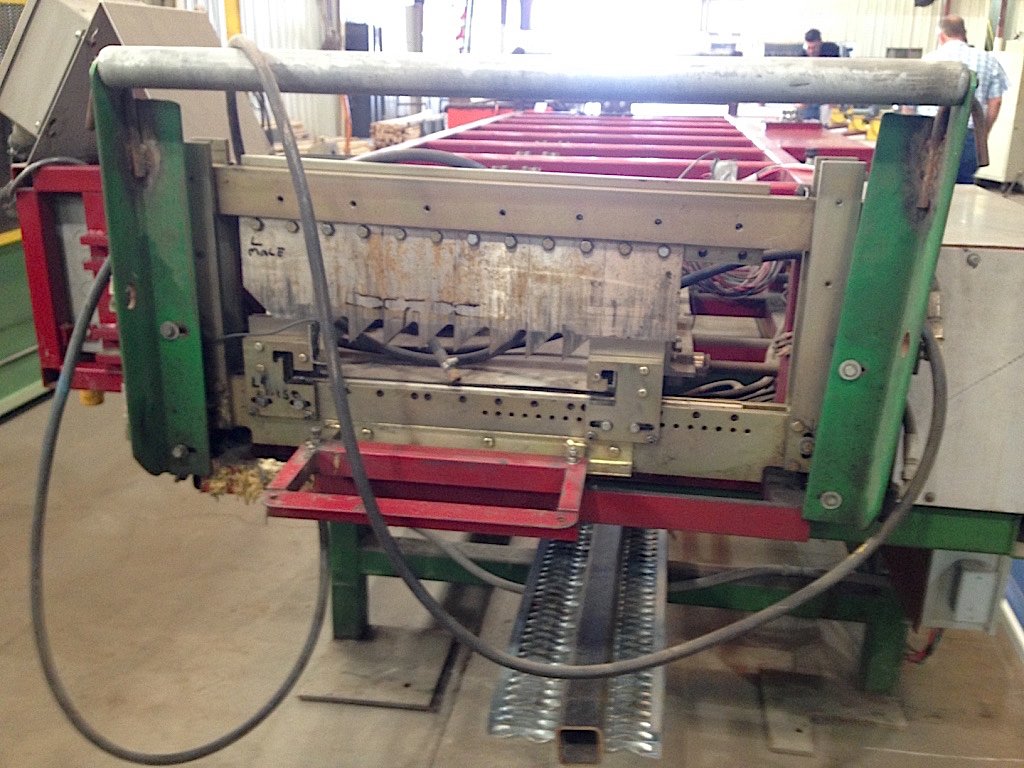

Hydraulic shear

(*) 30″ coil requires expandable arbor or remote de-coiler stand.

Length

12'

Coil width

15" to 30" (*)

Speed

approx. 60 feet / minute

Painted steel capacity

22 ga. max.

Galvanized steel

22 ga. max.

Aluminized steel

22 ga. max.

Aluminum

.023" max.

SS150 panel sizes

12" and 24" wide

SS550 panel sizes

12" and 22-3/4" wide

SS675 panel sizes

12" and 21-7/8" wide

SS200 panel sizes

12" and 22-1/4" wide

SS210 panel sizes

12" and 21-7/8" wide

BP panel sizes

11-1/8" and 24-3/4"

Hydraulic fluid

18 gallons

Motor

7.5 HP / 3505 RPM

Volts

208-230/460

Phase

3

Cycles

60

FLA

17.6-16.8 / 8.4

SFA

18.8-18.0 / 9.0

Approximate dimensions

12' 9" x 64" x 59" high

Approximate weight

2,200 lbs.
