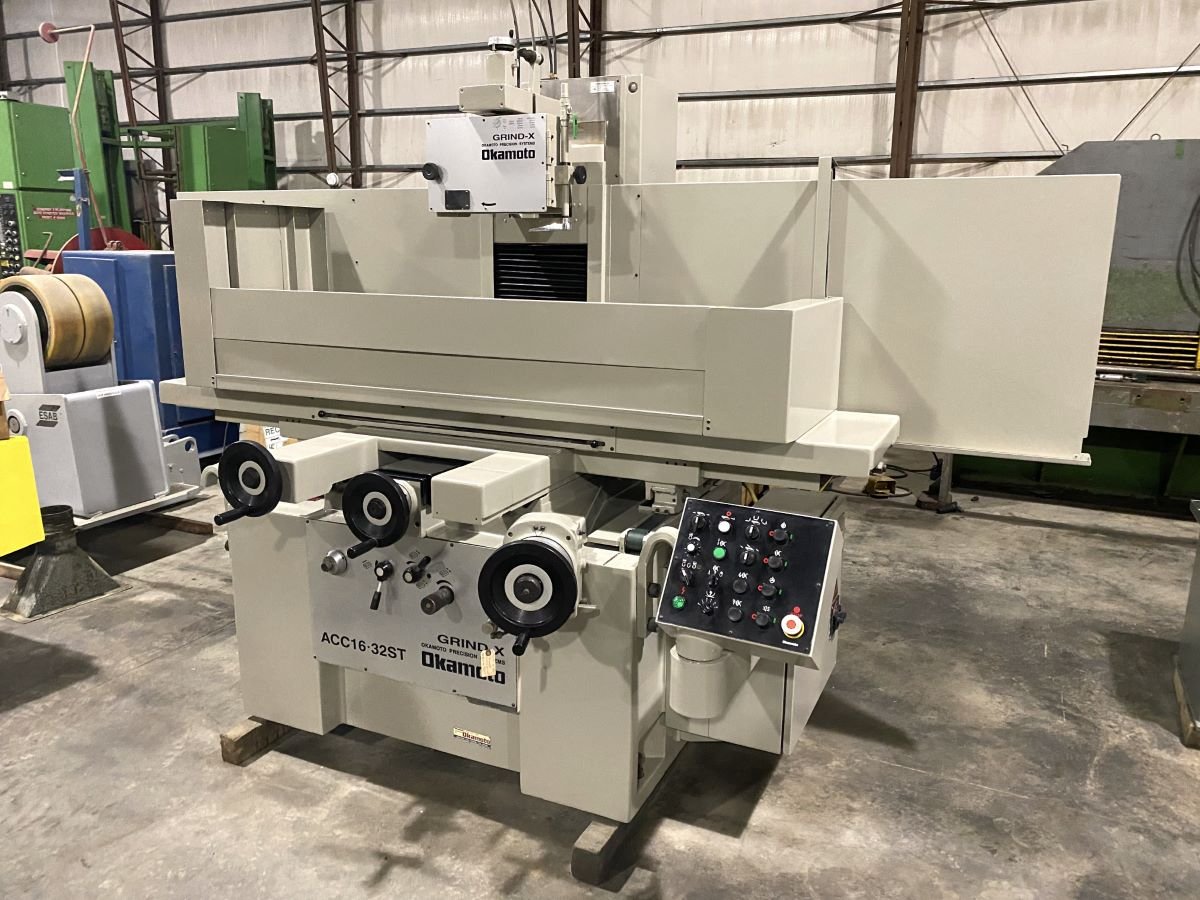

Over the wheel dresser

16″ x 32″ Electromagnetic chuck (fine pole)

Coolant tank & pump with paper filter

3-axis automatic feed

Incremental downfeed (automatic)

Plunge & traverse grinding

Auto sparkout of wheel up to 5 passes

Power elevation

Table working surface

16" x 33.5"

Maximum table movement (manual)

37.5"

Max. distance wheel to table

21.5"

Magnetic chuck size

16" x 32" x 3.5"

Table load capacity including chuck

1,540 lbs.

Grinding Wheel Size

12" x 1.5" x 5" bore

Grinding wheel speed

1800 RPM

Longitudinal feed rate

1-82 FPM

Feed per handwheel revolution

1.85"

Intermittent feed (automatic)

0.02" – 0.8"

Grinding feed (automatic)

4-40 IPM

Wheel vertical feed, downfeed increment (automatic)

0.0001 – 0.0015

Wheel vertical feed, spark out passes (automatic)

0-5

Wheel vertical feed, feeds per handwheel revolution (manual)

0.025"

Wheel vertical feed, feeds per handwheel graduation (manual)

0.0001"

Rapid vertical feed

16 IPM

Motor

5 HP

Vertical feed motor

0.5 HP

Hydraulic oil pump motor

3 HP

Approximate dimensions

130" x 88" x 80" high

Approximate weight

8,820 lbs.
