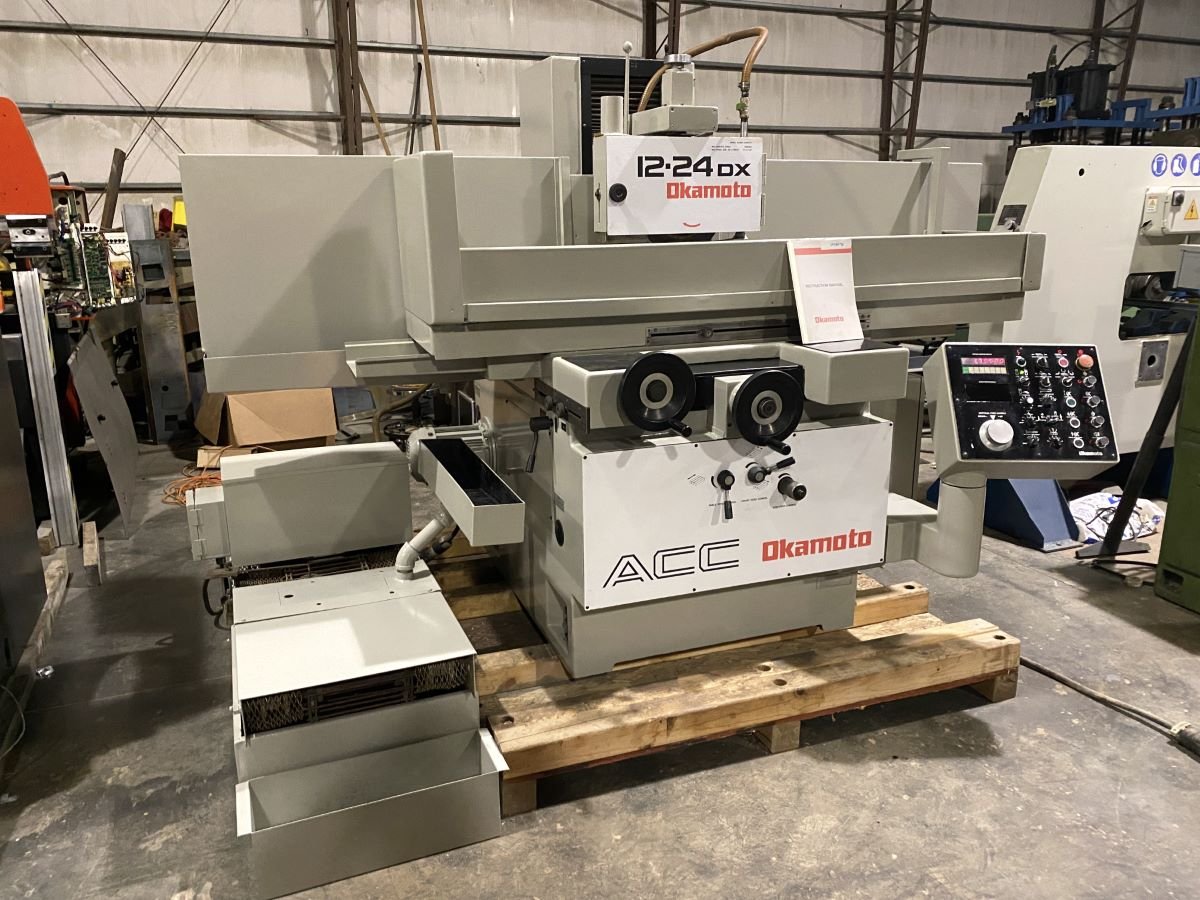

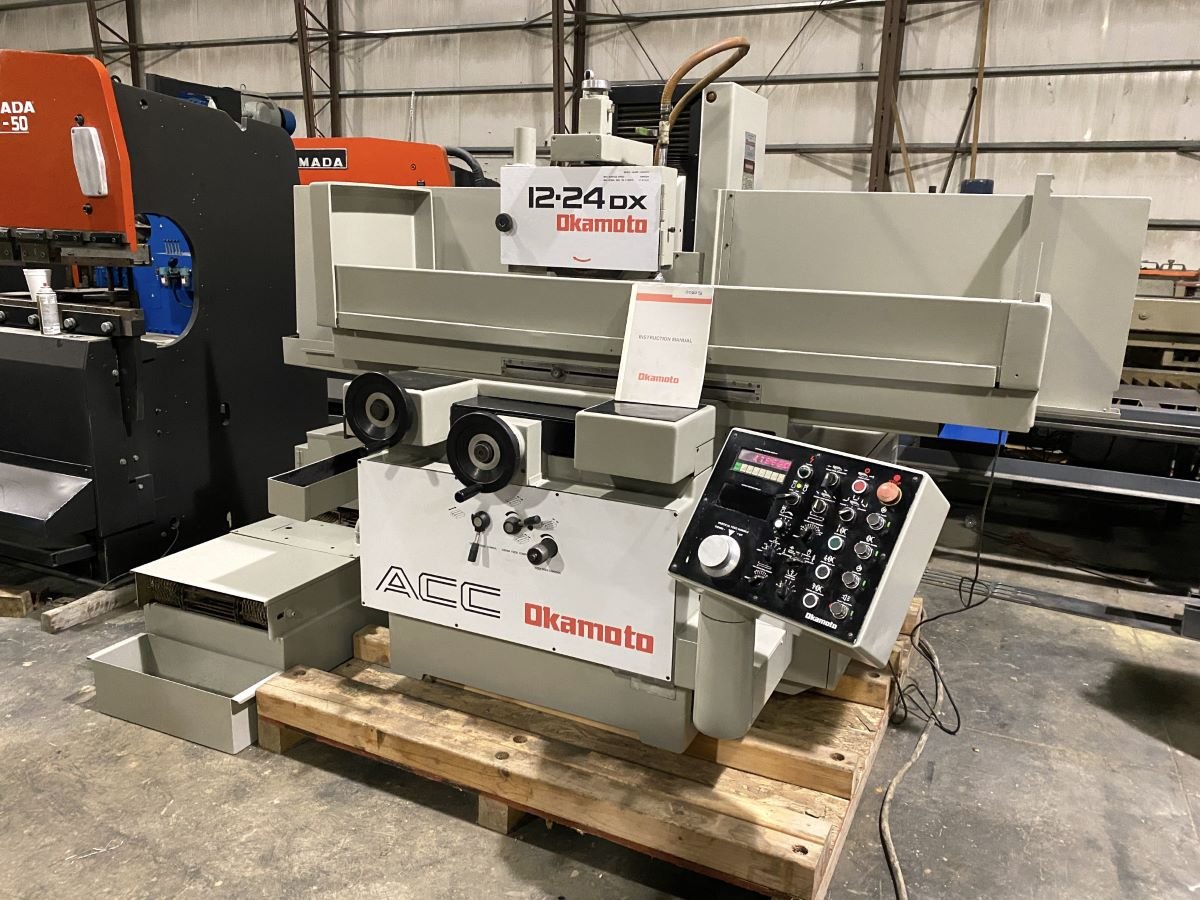

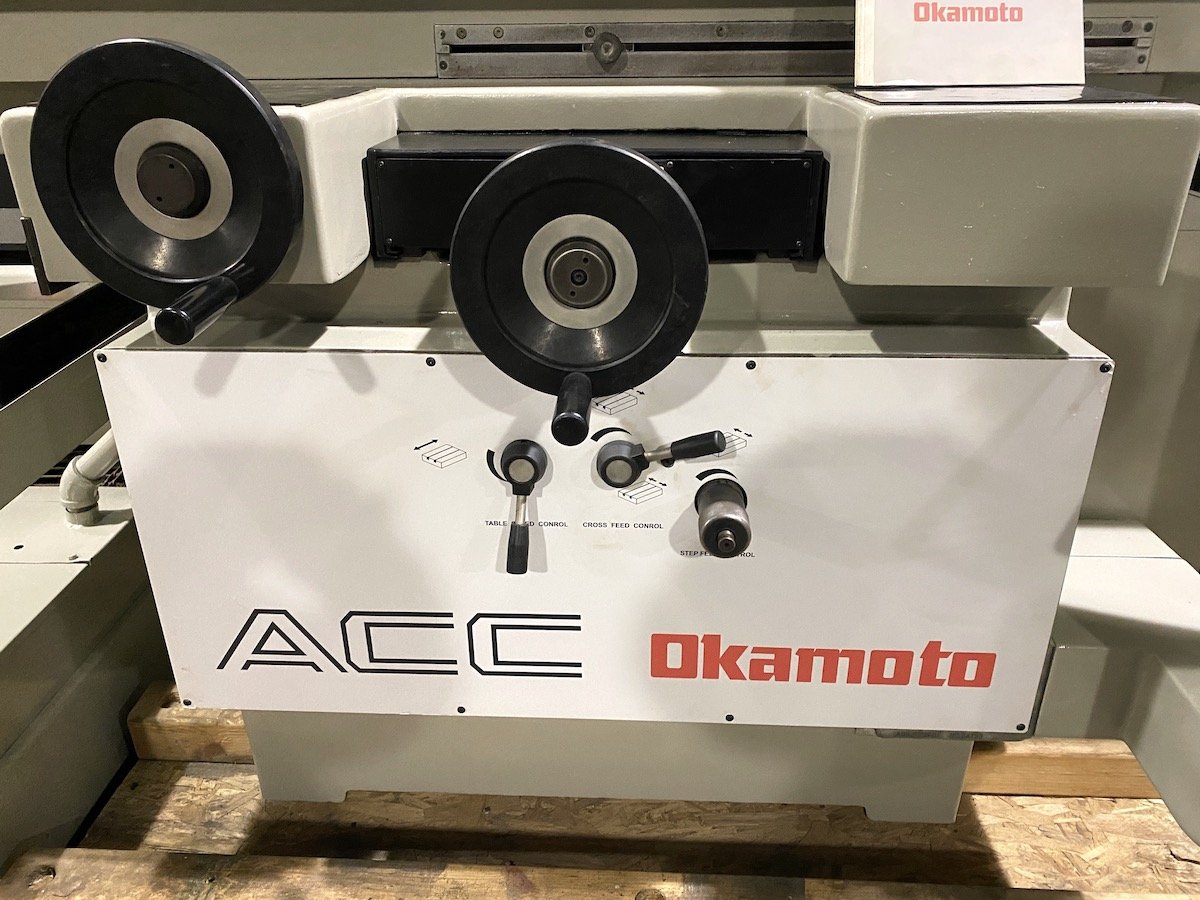

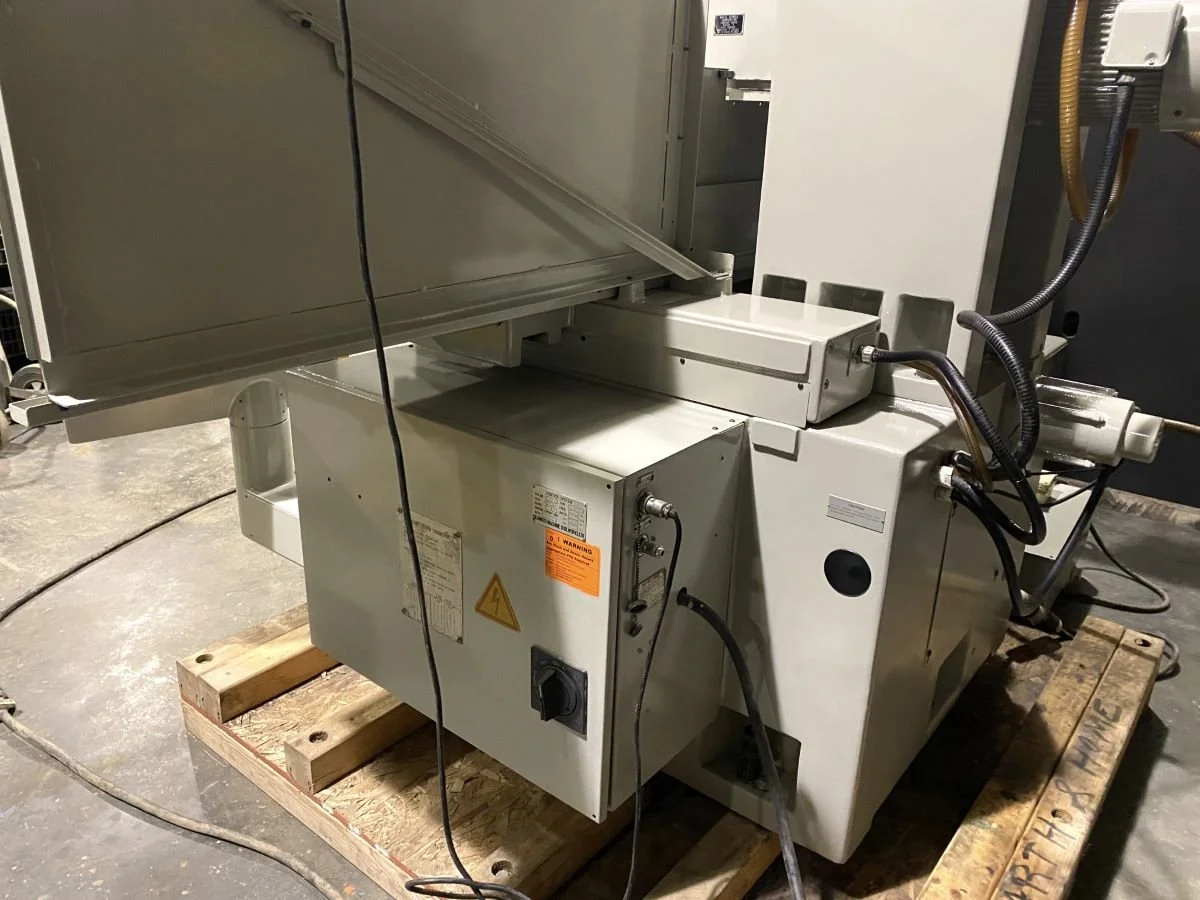

12” x 24” Okamoto 3-Axis Automatic Surface Grinder | ACC 12-24DX

sold

  • Manufacturer: Okamoto

    Model Number: ACC 12-24DX

    Serial Number: 645123

    Size / Capacity: 12″ x 24″

    Stock Number: 13714

  • Automatic reciprocating table

    Horizontal spindle

    Incremental down feed

    Rough/fine grinding and spark out

    Servo driven vertical feed; Dual (V) table ways

    12” x 24” electromagnetic chuck

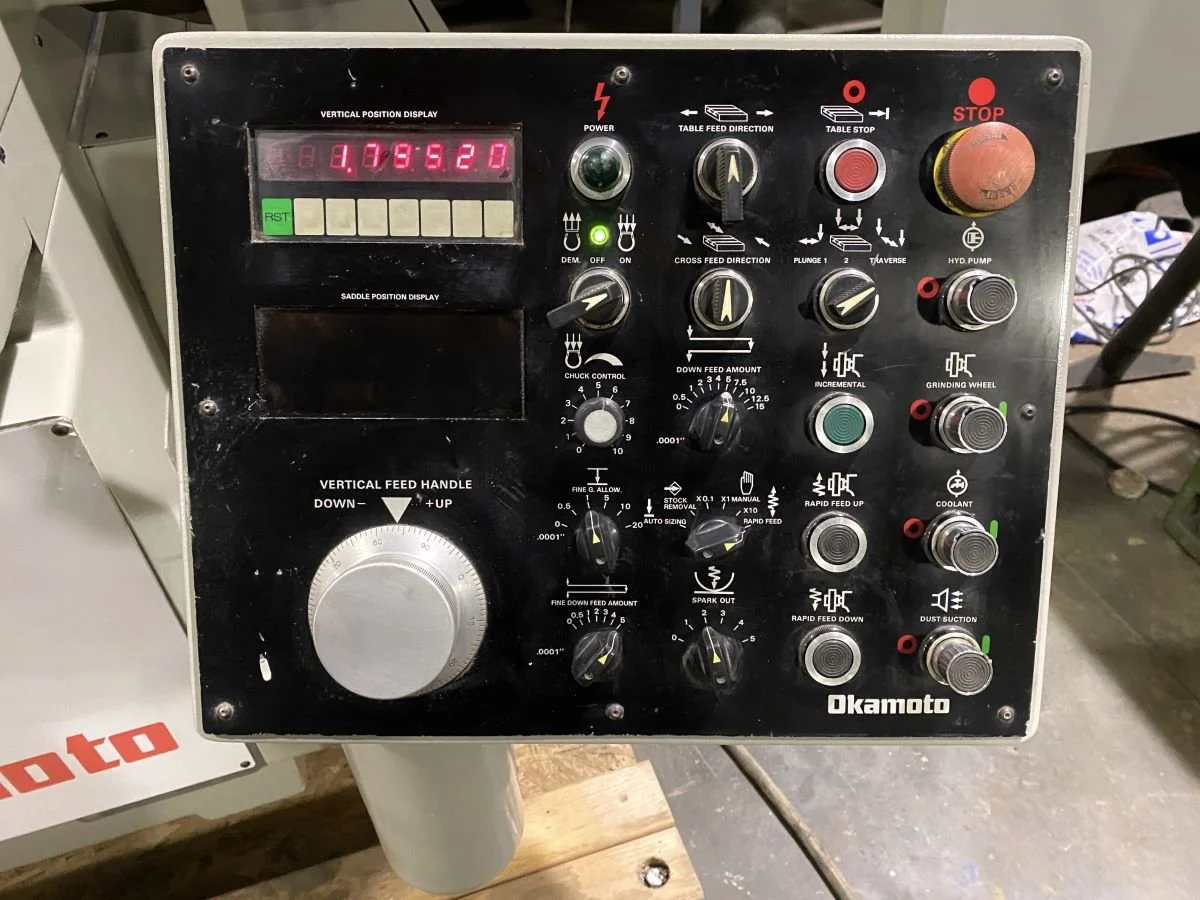

    Vertical feed digital position readout

    Coolant system with paper filtration

    Over-the-wheel-dresser

  • Maximum grinding length

    12” x 24” (300 x 600 mm)

    Vertical clearance (12" wheel)

    1.9” to 13.6” (47.5 to 347.5 mm)

    Table load capacity (inclusive of magnetic chuck)

    924 lbs. (420 kg)

    Surface length of table

    25.6" (650 mm)

    Surface width of table

    12" (300 mm)

    Maximum longitudinal travel

    29.5" (750 mm)

    Maximum cross travel

    13.4" (340 mm)

    Number of T-slots

    3

    Width of T-slots

    0.669" (17 mm)

    Longitudinal travel

    Table movement

    ...Hydraulic feed

    1 to 82 feet/min (0.3 to 25 m/min)

    ...Hand feed per revolution (longitudinal)

    1.85" (47 mm)

    Cross travel

    Saddle movement

    ...Hydraulic intermittent feed

    0.02 to 0.8" (0.5 to 20 mm)

    ...Hydraulic continuous feed

    4 to 40 in/min (0.1 to 1 m/min)

    ...Hand feed per revolution (cross)

    0.25" (5 mm)

    Vertical travel

    Wheel head movement

    ...Automatic feed per table stroke

    0.00005 to 0.0015" (0.0001 to 0.03 mm)

    ...Automatic feed per saddle reversal

    0.00005 to 0.0015" (0.0001 to 0.03 mm)

    ...Hand feed per revolution x0.1

    0.001" (0.01 mm)

    ...Hand feed per revolution x1

    0.01" (0.1 mm)

    ...Hand feed per revolution x10

    0.1" (1 mm)

    Graduation of handwheel x0.1

    0.00001" (0.0001 mm)

    Graduation of handwheel x1

    0.0001" (0.001 mm)

    Graduation of handwheel x10

    0.001" (0.01 mm)

    Rapid feed

    19 in/min (480 mm/min)

    Grinding wheel diameter

    12" (305 mm)

    Grinding wheel width

    1.5" (38 mm)

    Grinding wheel bore

    5" (127 mm)

    Grinding spindle speed

    1800 RPM

    Spindle motor

    5 HP (3.7 Kw)

    Hydraulic pump motor

    2 HP (1.5 Kw)

    Vertical feed motor

    1/2 HP (0.4 Kw)

    Approximate dimensions

    108" x 76" x 70" high

    Approximate weight

    5,500 lbs.
