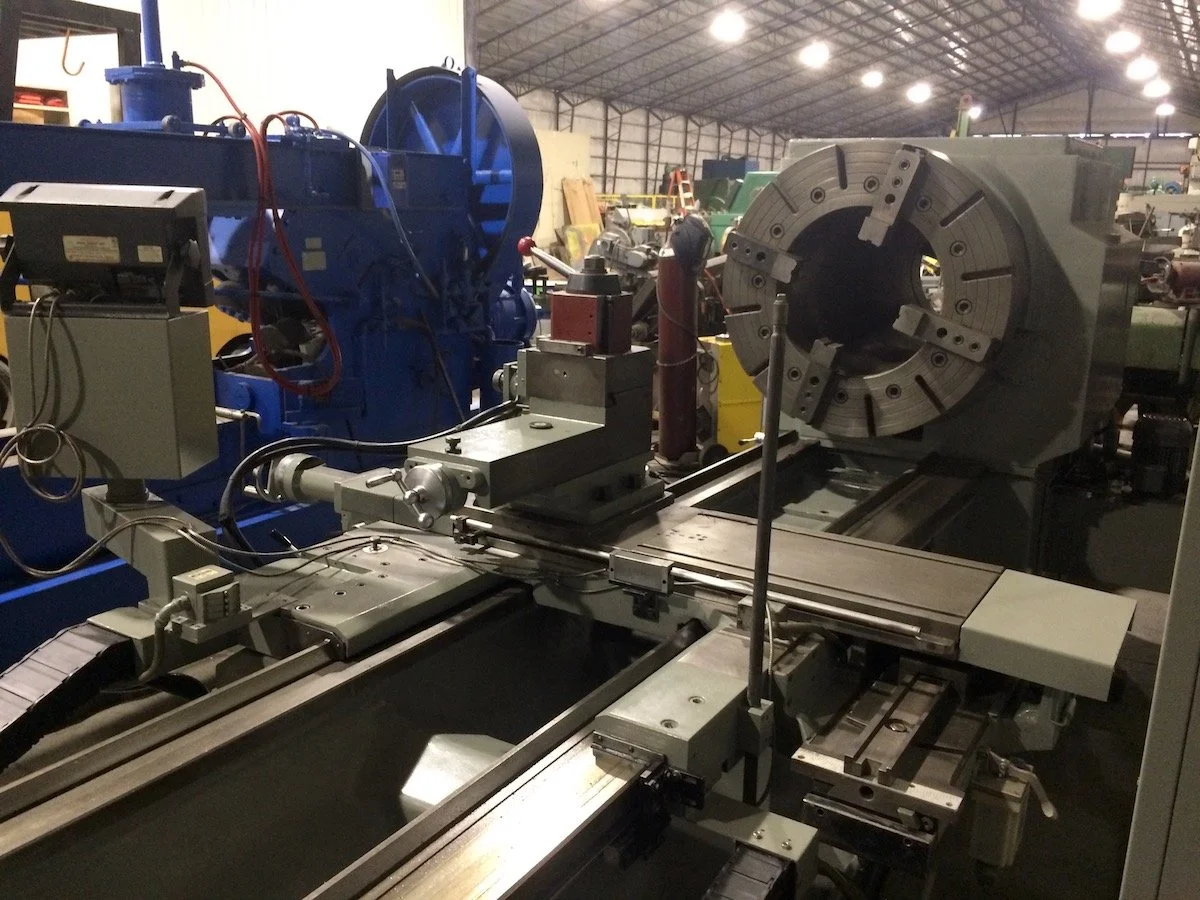

Newall digital readout

(4) 35-1/4″ chucks

20-3/4″ hole through spindle

Quick change toolpsst

Taper attachment

Automatic threading

Swing over bed

43"

Distance between centers

120"

Swing over cross slide

33"

Swing over gap

58"

Width of bed

29-1/2"

Spindle bore diameter

20-3/4"

Spindle nose

A1-28

Number of speed steps

3

Range of spindle speeds

0 to 177 RPM

Tool retractor slide travel

1-1/4"

Compound slide travel

14-1/2"

Cross slide (width x travel)

13-1/2" x 25"

Number of longitudinal feeds

40

Number of cross feeds

40

Range of longitudinal feeds

.004" – .064"

Range of cross & compound feeds

.003" – .053"

Rapid traverse, longitudinal

60 inches/minute

Rapid traverse, cross slide

30 inches/minute

Rapid traverse, compound slide

30 inches/minute

Metric threads (#)

.5 to 7.5 (40)

Inch threads (#)

60-4 120-1 (160)

Module Threads (#)

.25 to 3.75 (40)

Diametral threads (#)

120 to 8 (40)

Motor

60 HP

Motor speed

1150 / 2000 RPM

Volts

240

Amps

7.72 / 3.96

Approximate dimensions

22' 2" x 7' 11" x 7' 9" high

Approximate weight

30,000 lbs.
