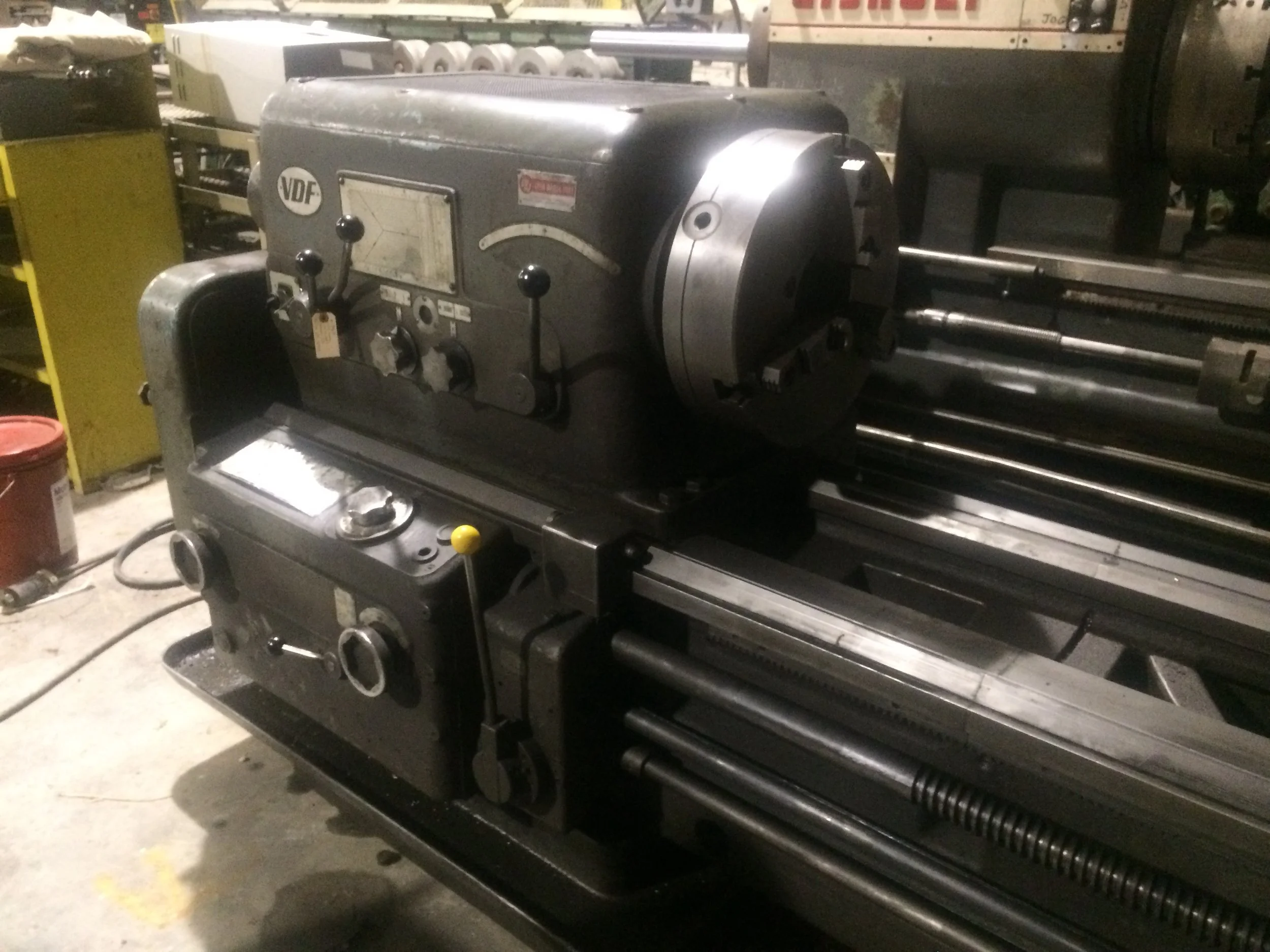

26″ x 168″ VDF Gap Bed Engine Lathe
sold
-
Manufacturer: VDF
Model Number: V5
Serial Number: V5 5244
Size: 26″ x 168″
Stock Number: 13403
-
16″ 3-jaw chuck
Faceplate
(3) steady rests
Quick change camlock spindle nose
-
Swing over bed
26"
Swing in the gap
35" aprox.
Length of gap
18"
Distance between centers
168"
Spindle speeds (21)
15 to 1500 RPM
Inch threads
1.4 to 80 TPI
Metric threads
0.63 to 35.5 mm
Leadscrew diameter
2"
Leadscrew pitch
2 TPI
Bed length
195"
Bed width
19-5/8"
Tailstock quill diameter
4"
Tailstock quill travel
12"
Motor
30 HP
Approximate dimensions
246" x 60" x 57" high
Approximate weight
8,000 lbs.
