Manufacturer: Marvel

Model Number: V-10A2

Serial Number: D-170810-W

Size / Capacity: 10″ x 14″

Stock Number: 13356

45 degree tilting head

Hydraulic Vise

Shuttle Infeed, Multi-Cycle Index

5′ Infeed conveyor

5′ Exit conveyor

Owner’s/Operators Manual

Electrical Schematics

Hydraulic Schematics

Coolant Capacity

32 Gallons

Round Capacity @ 90 degrees

10" Dia. (254mm)

Round Capacity @ 45 degrees

9" Dia. (229mm)

Rectangle Capacity @ 90 degrees (W x H)

10" x 14" (254mm x 356mm)

Rectangle Capacity @ 45 degrees (W x H)

10" x 9" (254mm x 229mm)

Table Load Capacity

5,000 lbs. (2268kg)

Maximum Vise Opening

10.50" (267mm)

Blade Speed

50 to 500 FPM (infinitely variable)

Feed Force

0-250 lbs.

Blade size

1.0" x 0.035" x 13'-6"

Band Wheel Diameter

15"

Feed Table Load Capacity

5,000 lbs.

Feed Table Shuttle Stroke

15.00"

Working height

37.00"

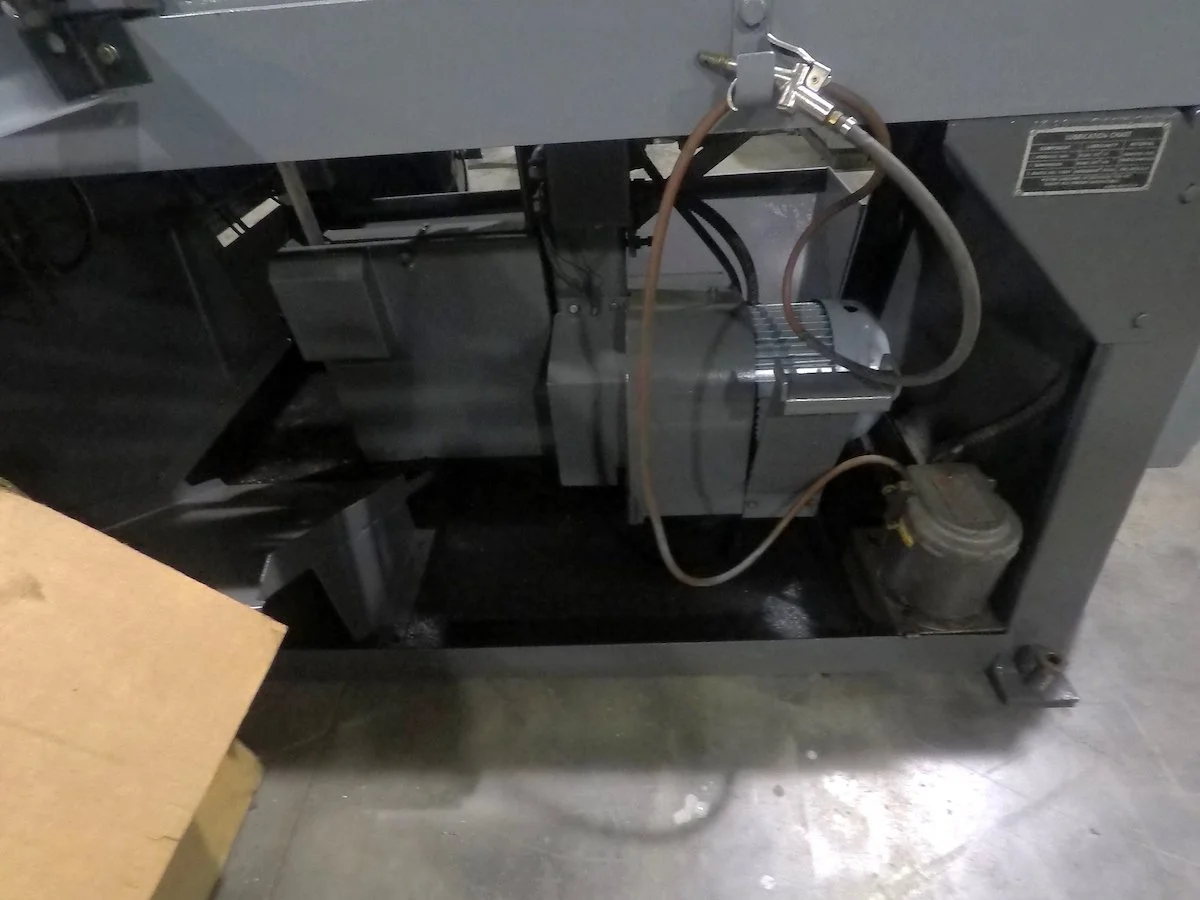

Saw Blade Drive Motor

3 HP

Hydraulic Drive Motor

1/4 HP

Hydraulic Capacity

10 Gallons

Coolant motor

1/4 HP, 3450 RPM

Operating Power

240V/480V-3 Phase

Approximate dimensions

90" x 68" x 82" high (without conveyors), 90" x 68" x 82" high

Approximate weight

3,500 lbs.
