34″ x 96″ Axelson Engine Lathe | Model 32

  • Manufacturer: Axelson

    Model Number: 32″

    Serial Number: 3701

    Size / Capacity: 34″ x 96″

    Stock Number: 13641

  • 31″ 4-jaw chuck

    Chuck guard

    Steady rest

    Quick change tool post

    Thread dial

    Work light

    Coolant

  • Swing over bedways - 34.5"

    Distance between centers - 96"

    Bed length - 14'

    Bed width - 32"

    Spindle speeds (#) - (24) 6-555 RPM

    Feeds - (90) 0.004 – 0.300

    Leadscrew diameter - 2"

    Leadscrew pitch - 2 TPI

    Tailstock quill travel - 24"

    Tailstock quill diameter - 5.5"

    Motor - 30 HP / 1760 RPM

    Volts - 220 / 440

    Phase - 3

    Cycles - 60

    Amps - 76/38

    Approximate dimensions - 19' x 6' x 66" high

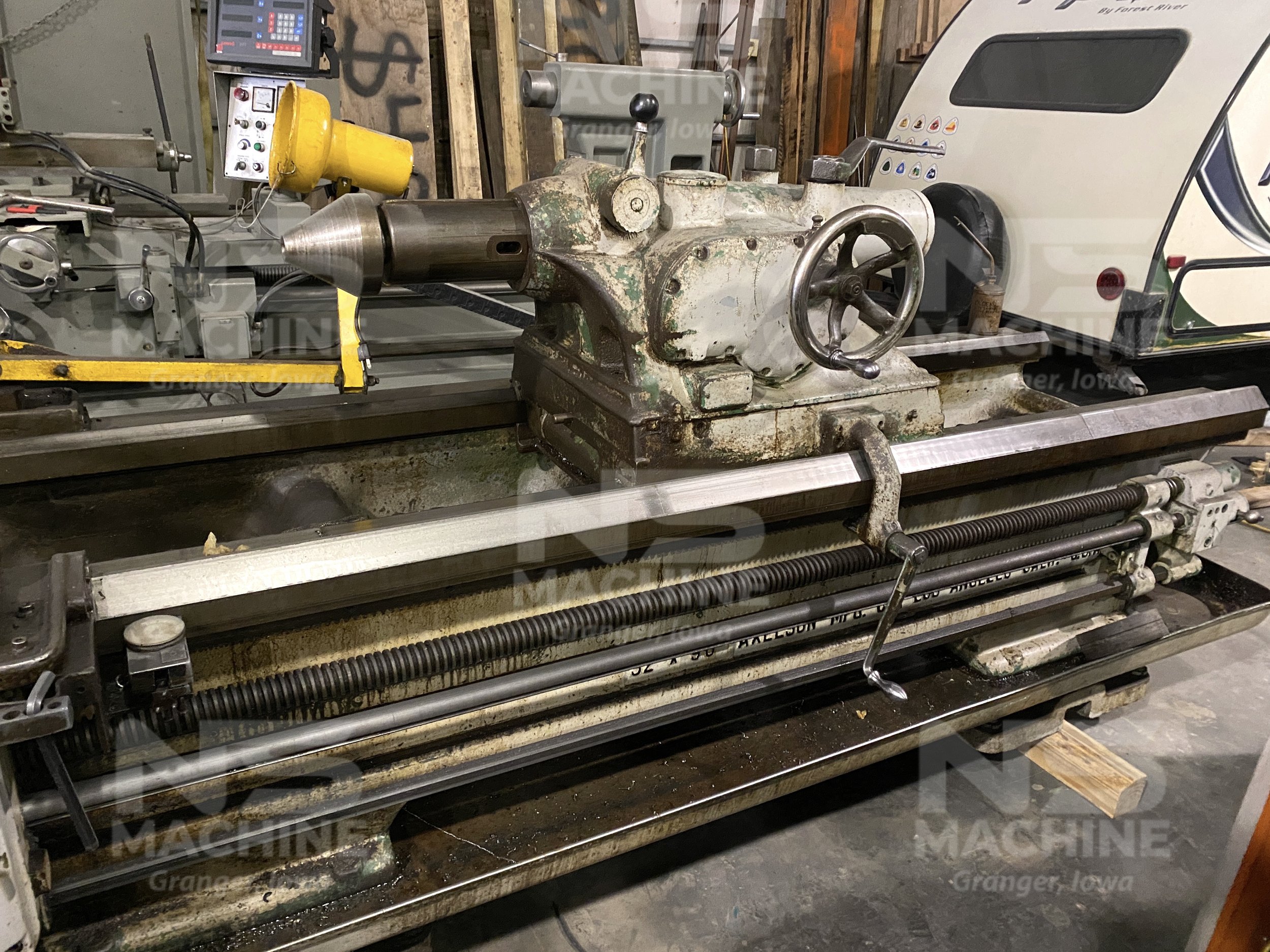

  • This Model 32 Axelson is a heavy duty engine lathe with a large 34” swing and 96” between centers. It comes equipped with a 31″ 4-jaw chuck, Chuck guard, Quick change tool post, Thread dial, Work light and Coolant. It boasts a 30 HP motor with 24 spindle speeds from 6-555 RPM and feeds (90) feeds from 0.004 – 0.300.

    For questions or to schedule an inspection of this 34″ x 96″ Axelson Heavy Duty Engine Lathe, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 34″ x 96″ Axelson Heavy Duty Engine Lathe, use the “Request Quote” button on this page.
