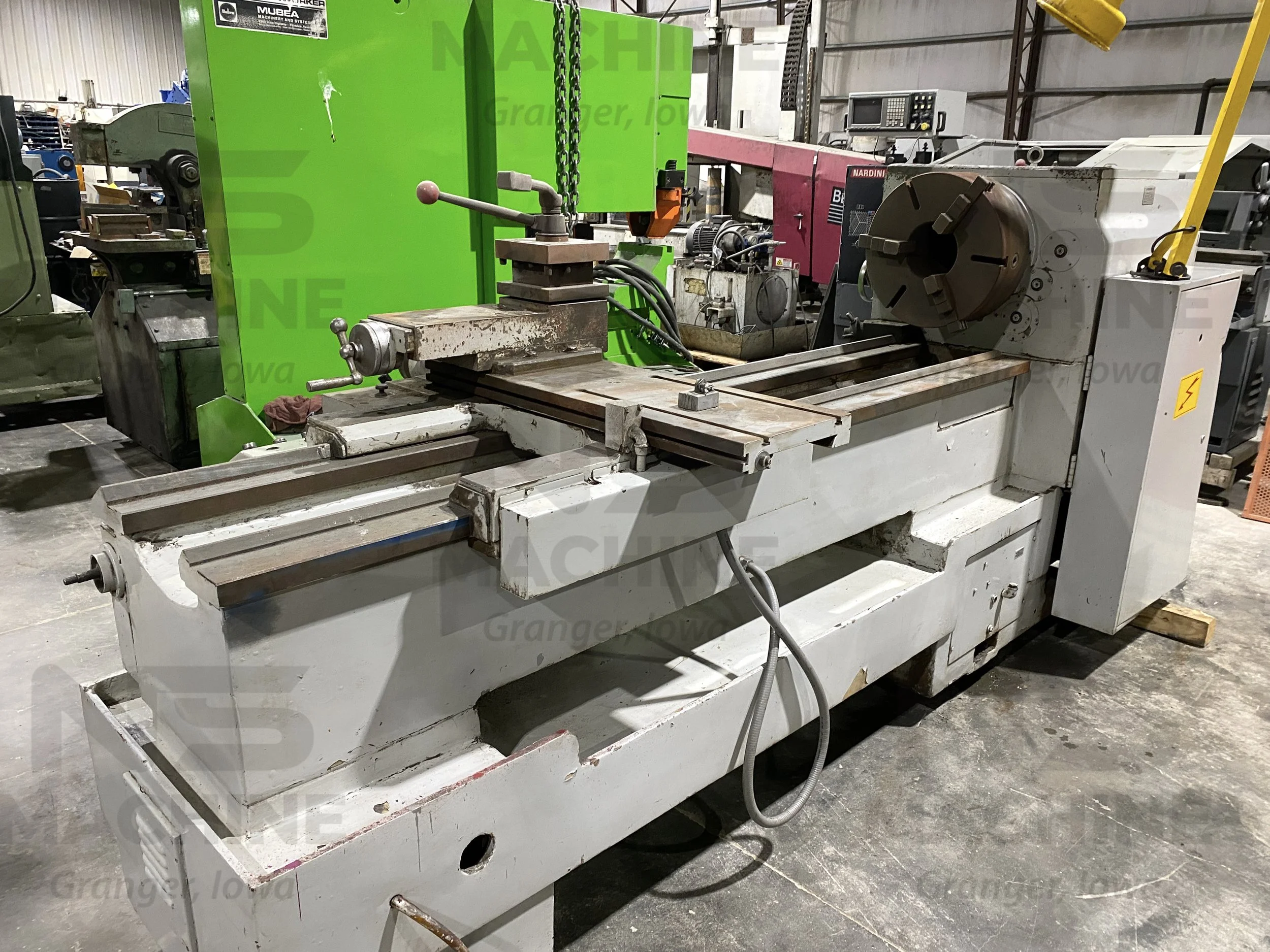

24” x 92” Lansing G-24 Hollow Spindle Lathe
$15,000
-
Manufacturer: Lansing
Model Number: G 24"-6.5/16"
Serial Number: 7682
Stock Number: 13631
-
(2) 17" 3-jaw chucks with 6" hole
4-way toolpost
6-position turret style carriage stop
Work light
-
Swing over bedways: 24"
Diameter of bore through spindle: 6-5/16"
Bed length: 92"
Diameter of spindle bore: 6.5"
Spindle speeds: (16) 8-770 RPM
Inch feeds, londitudinal: (40) 0.00574 to 0.08640
Inch feeds, cross: (40) 0.00232 to 0.03448
Metric feeds, londitudinal: (40) 0.146 to 2.184
Metric feeds, cross: (40) 0.046 to 0.688
Inch threads: (40) 1/32 to 15/32
Metric threads: (40) 0.5 to 7.5
Whitworth threads: 60 to 4
Module threads: (40) 0.25 to 3.75
Diametral threads: (40) 120 to 8
Leadscrew diameter: 2-1/4"
Leadscrew pitch: 2 TPI
Bed width: 19-1/2"
Motor: 25 HP
Volts: 440
Approximate dimensions: 141" x 54" x 64" high
Approximate weight: 8,000 lbs
-
This 24” Lansing Hollow Spindle Lathe has a spindle bore of 6-5/16”. It comes equipped with (2) 17” 3-jaw chucks with 6” bore and a 4-way toolpost.
For questions or to schedule an inspection of this 24” Lansing Hollow Spindle Lathe, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 24” Lansing Hollow Spindle Lathe, use the “Request Quote” button on this page
