5/8” Blue Valley No. 6 Flanger
Price On Request
-
Condition: Like New!
Manufacturer: Blue Valley
Model Number: No. 6
Serial Number: 6-806
Model Year: 2006
Stock Number: 13934
-
Like New!
Never put into production
Original paint
On original shipping pallet
Siemens Micromaster 440 variable frequency drive
Pneumatic holddown cylinder with a manual directional control valve
-
Maximum flanging capacity-mild steel — 5/8" / 16 mm
Minimum flanging capacity-mild steel — 14 gauge / 2 mm
Flanging capacity-stainless — 7/16" / 11 mm
Maximum flanging diameter-flat heads — 240" / 6100 mm
Minimum flanging diameter-flat heads — 24" / 610 mm
Maximum flanging diameter-dished heads — 180" / 4500 mm
Minimum flanging diameter-dished heads — 28" / 710 mm
Max. knuckle radius, flat head — 3" / 75 mm
Hydraulic Power Unit Capacity — 20 Gallons / 75 Liters
Pneumatic holddown cylinder — 9”
Main Drive Motor — 10 HP / 1800 RPM
Motor for Hydraulic Pump — 5 HP /1800 RPM
Approximate dimensions — 234" x 52" x 88" high
Approximate weight — 11,600 lbs
-

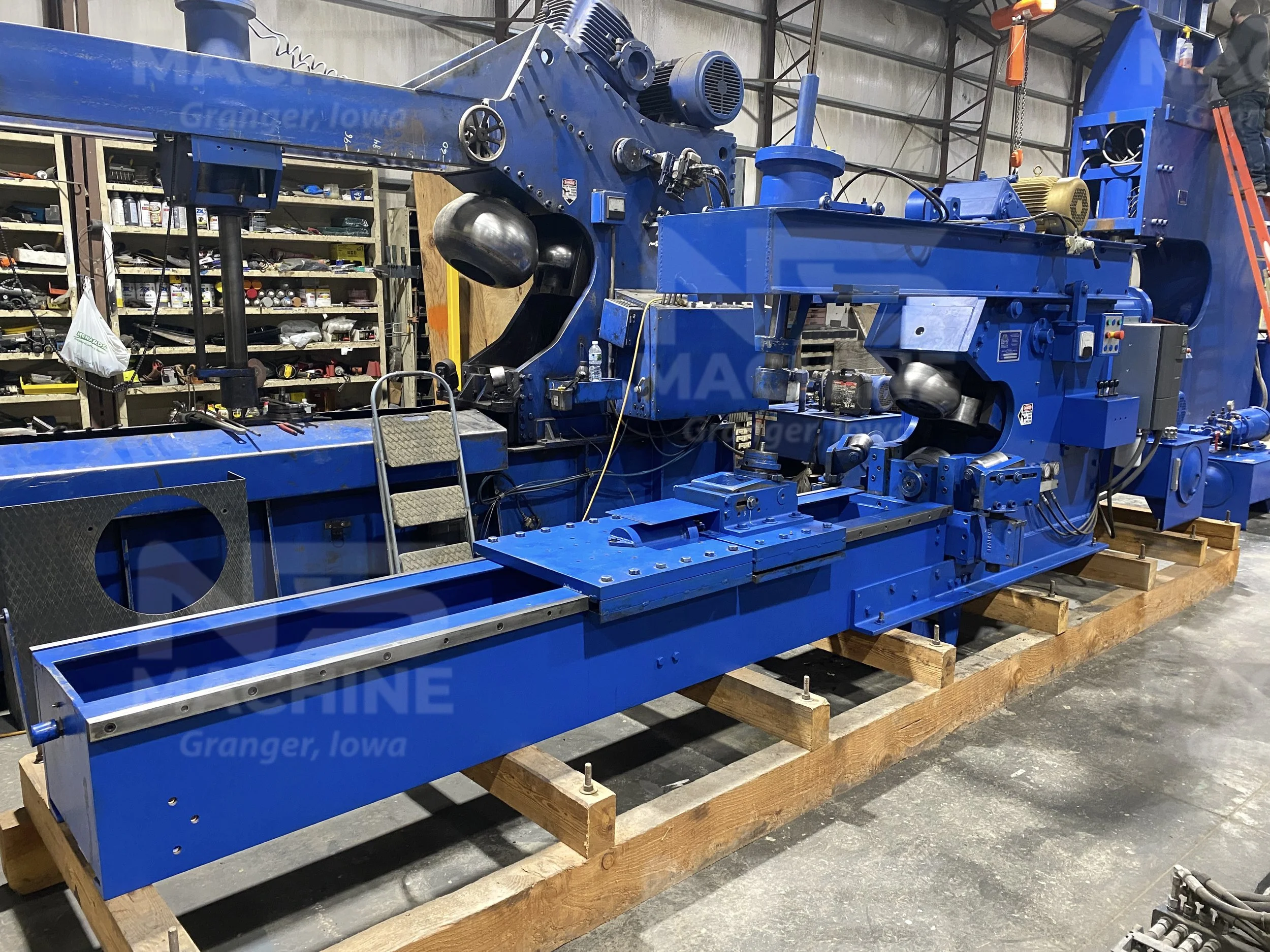

The Blue Valley No. 6 Flanger is capable of flanging up to 5/8” thick mild steel to a maximum diameter of 240”. This model is like new and is still bolted to the original shipping pallet. It was never put into production.
For questions or to schedule an inspection of this Blue Valley No. 6 Flanger, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this Blue Valley No. 6 Flanger, use the “Request Quote” button on this page.
