Pneumatic material clamping

New segment wheel

Base with heavy duty steel wheels

Minimum thickness capacity, carbon steel - 16 gauge (1.5 mm)

Maximum thickness capacity, carbon steel - 1/4" (6 mm)

Maximum capacity, stainless steel - 3/16" (5 mm)

Minimum diameter - 19" (480 mm)

Maximum diameter - 144" (3650 mm)

Minimum knuckle radius - 1/8" (3 mm)

Maximum knuckle radius - 1-1/2" (38 mm)

Drive motor - 5HP

Approximate dimensions - 160" x 44" x 65" high

Approximate weight - 5,500 lbs

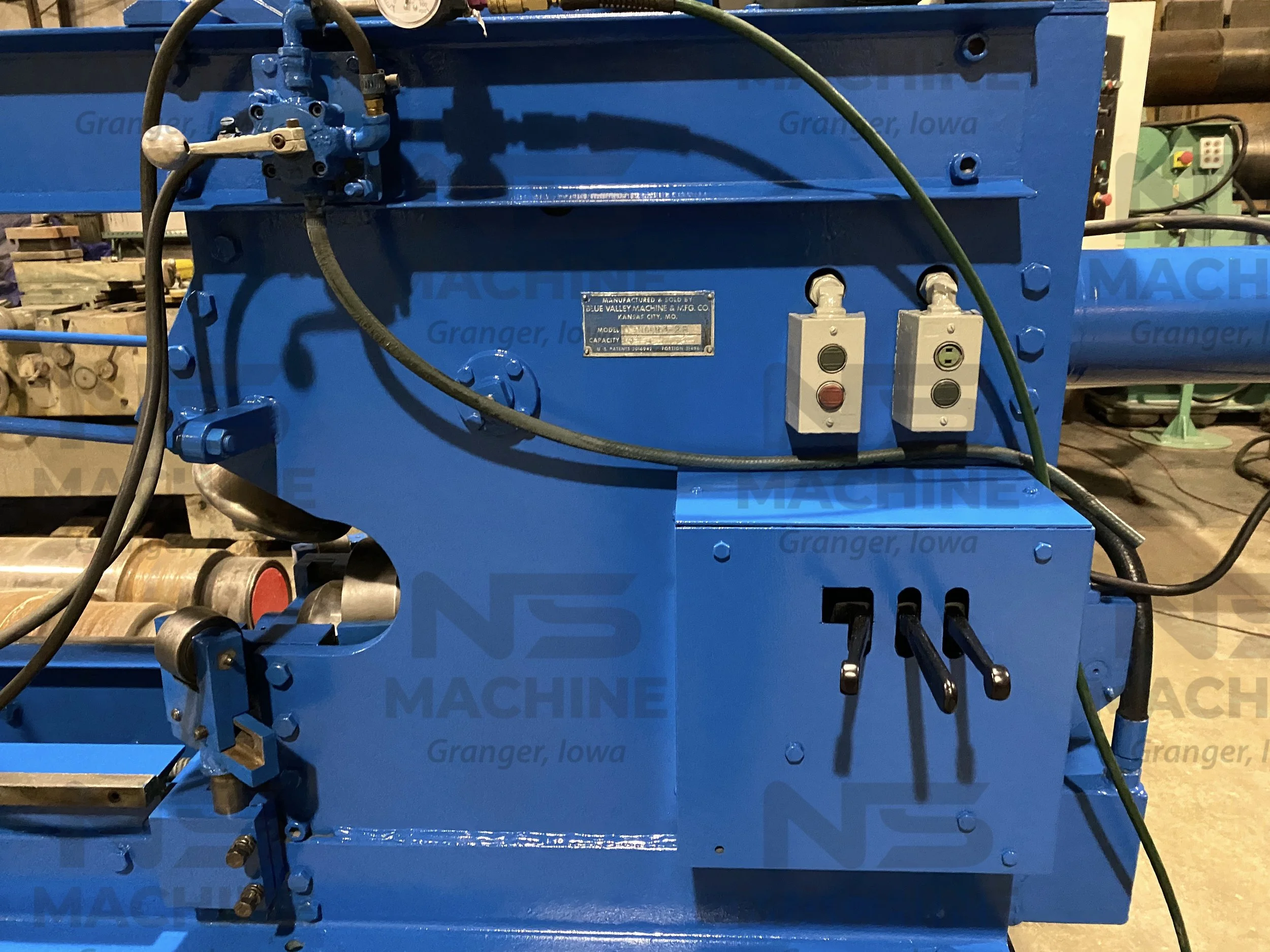

This No. 3 Blue Valley flanger can flange up to 12’ diameter with a maximum thickness capacity of 1/4”. It comes with a new segment wheel and is equipped with pneumatic clamping. The flanger is mounted to a base with heavy duty steel wheels for easy positioning in your shop.

For questions or to schedule an inspection of this Blue Valley No. 3 flanger, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this Blue Valley No. 3 flanger, use the “Request Quote” button on this page.
