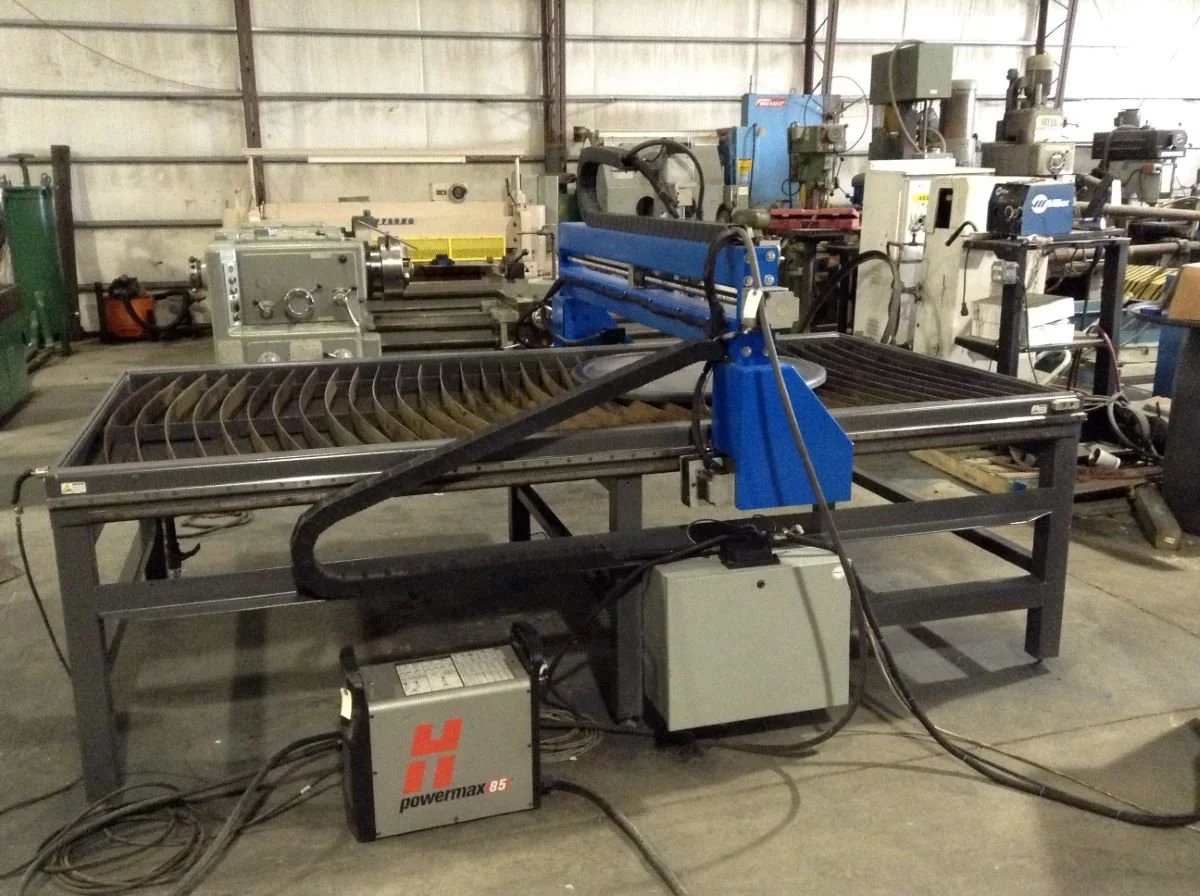

Manufacturer: Shop Sabre

Model Number: Sidekick 8

Model Year: 2015

Size / Capacity: 48″ x 96″

Stock Number: 13437

3″ deep water table with replaceable slats

85 amp Hypertherm plasma with 25′ lead

Software: ACAD 2013, Enroute program and Driver control

Computer

Monitor

Computer stand

Cut size

48" x 96"

Recommended cut capcity at 20 IPM (500 mm/min)

1" (25 mm)

Recommended cut capcity at 10 IPM (250 mm/min)

1-1/4" (32 mm)

Severance capacity at 5 PIM (125 mm/min)

1-1/2" ( 38 mm)

Pierce capacity for handheld cutting, or mechanized cutting with torch height control

3/4" (19 mm)

Pierce capacity for mechanized cutting without torch height control

5/8" (16 mm)

Max. cut speed in 1/4" (6 mm)

200 IPM (5500 mm/min)

Max. cut speed in 1/2" (12 mm)

70 IPM (2000 mm/min)

Max. cut speed in 3/4" (19 mm)

36 IPM (900 mm/min)

Max. cut speed in 1" (25 mm)

21 IPM (550 mm/min)

Max. cut speed in 1-1/4" (32 mm)

13 IPM (330 mm/min)

Metal removal rate on mild steel

19.5 lbs/hr (8.8 kg/hr)

Rated output current (I2)

25-85 A

Rated output voltage (U2)

143 VDC

Operating temparature

14° to 104° F (-10° to 40° C)

Approximate dimensions

112" x 92" x 65" high
