175 ton X 12′ Krras Hydrauilc CNC Press Brake | 2008 Model: BEND 160.37
sold
-
Manufacturer: Krras
Model Number: BEND 160.37
Serial Number: 8284
Model Year: 2008
Size / Capacity: 175 ton x 12′
Stock Number: 13576
-

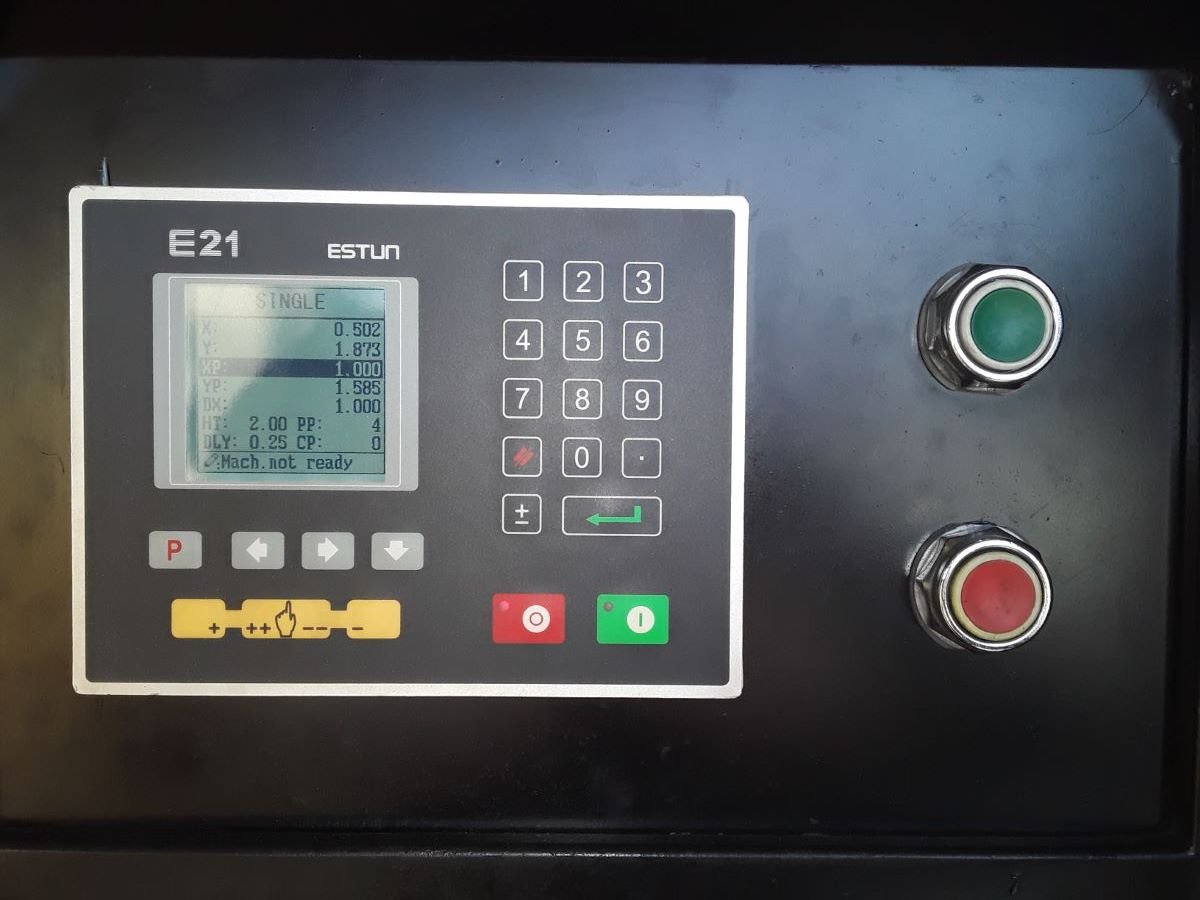

NEW Estun 2-axis CNC control (controls back gauge & ram)
Installed in August 2020
Single axis backgauge – 23.5″ (600 mm) travel
Under power on our floor in Granger, Iowa
Optional accessories:
Gooseneck punch with 1-15/16″ cleanup
4-way die with openings of 1″, 2″, 2.5″ and 3″
-
Tonnage
175
Overall length of bed & ram
145-3/4"
Distance between housings
10' 6"
Throat depth
12"
Motor
15 HP / 1165 RPM
Volts
220 / 440
Phase
3
Cycles
60
Amps
40.1 / 20.0
Approximate dimensions
150" x 60" x 96.5" high
Approximate weight
25,000 lbs.
