Swing beam design

40″ Front operated power back gauge (infinitely variable)

NEW Red Lion back gauge display (can read in inch or metric)

Standard 40″ squaring arm

Optional 120″ squaring arm available at no additional cost

(2) front gauge arms with disappearing stops & feed rollers

Shadow lighting with (5) LED swivel lights

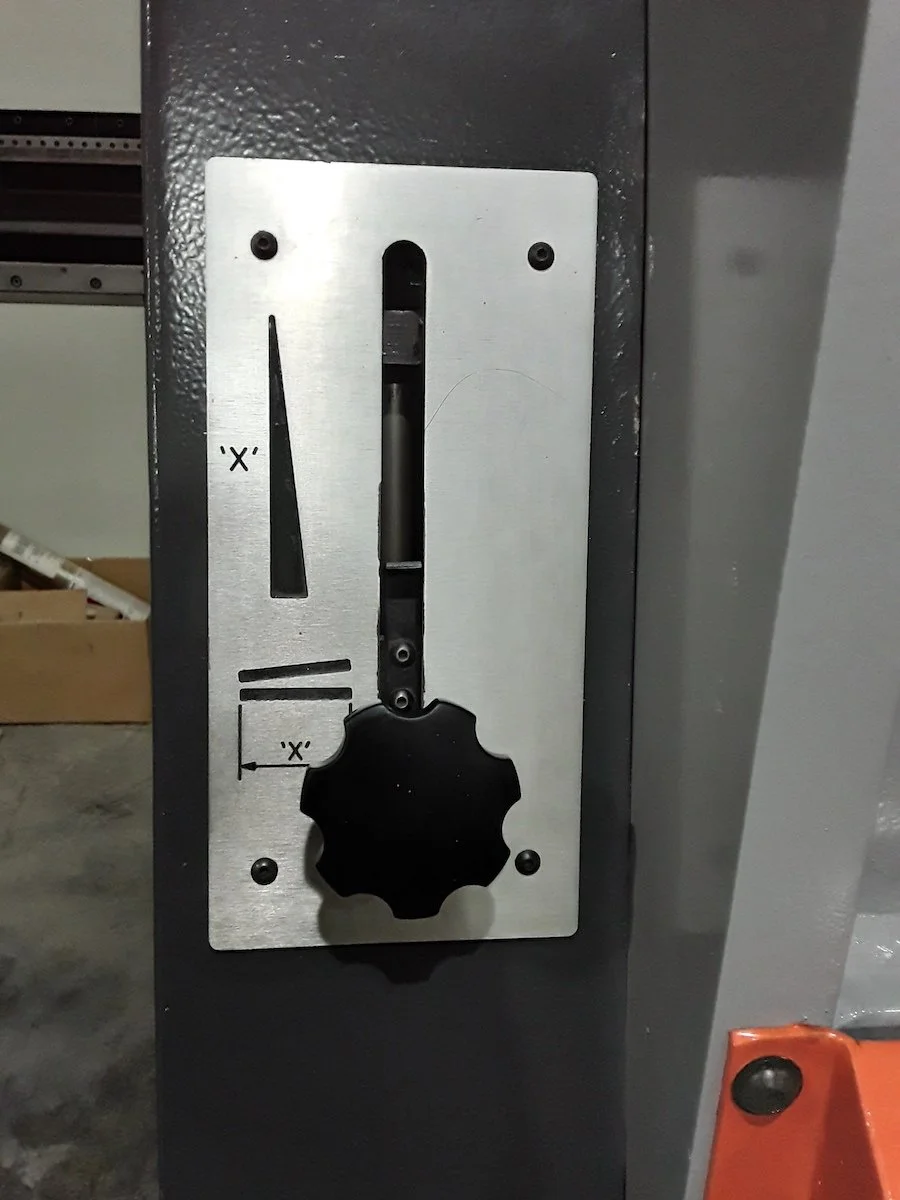

Manual blade gap adjustment

Manual stroke adjustment

Sectional table plates

See through finger guard

Cutting length

12'

Capacity, mild steel

1/4"

Capacity, stainless steel

3/16"

Gap in side frames

11"

Top blade rake

1-1/2"

Blade gap adjustment

0.003 to 0.020"

Strokes per minute, full stroke

16

Number of holddowns

14

Travel of back gauge

40"

Motor

15 HP

Volts

220 / 440

Phase

3

Cycles

60

Amps

74 / 37

Approximate dimensions

14' 4" x 78" x 66" high

Approximate weight

20,000 lbs.
