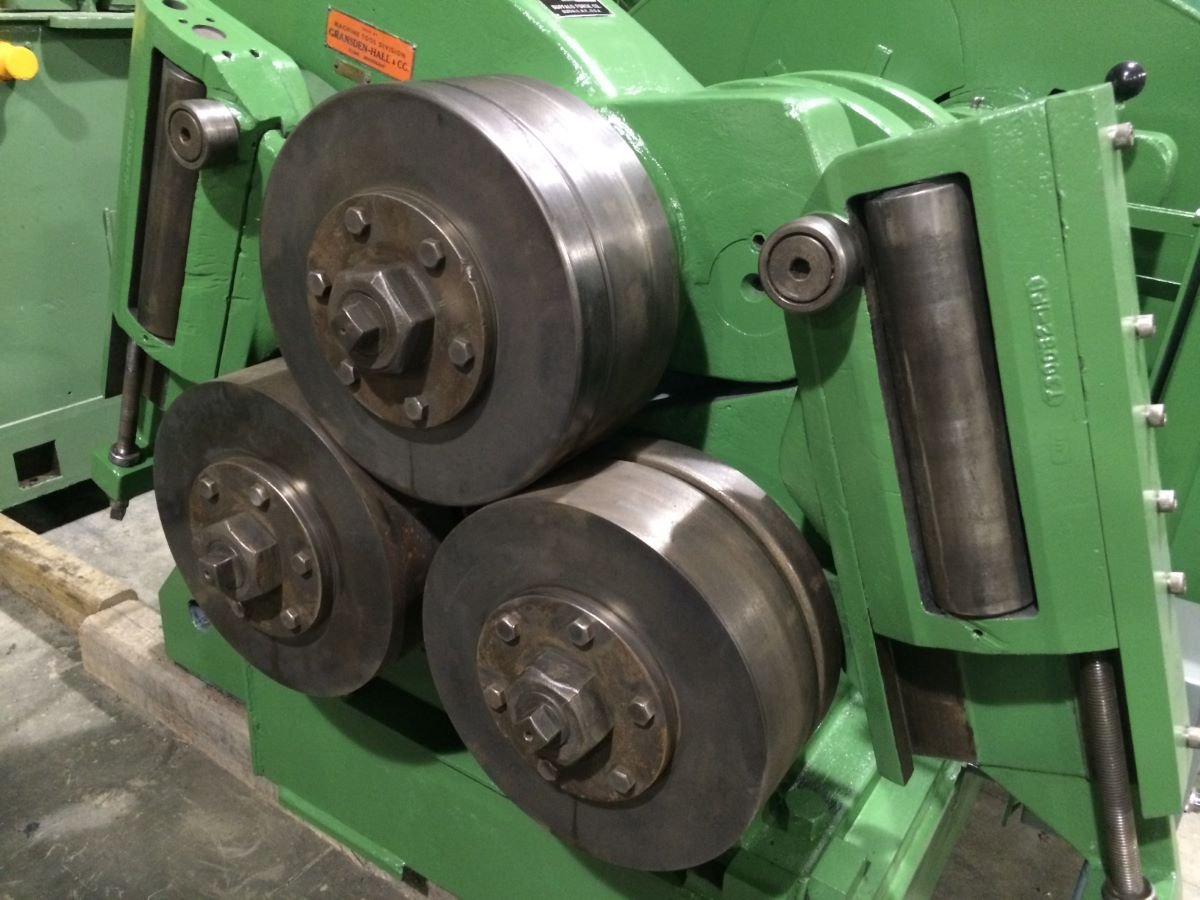

Pyramid type roll configuration

All roll shafts driven

Roll position indicator

Emergency stop button

Foot pedal control

This machine can be equipped with digital readouts.

Angle leg out (minimum diameter)

5" x 5" x 3/8" (60")

Angles leg in (minimum diameter)

3-1/2" x 3-1/2" x 5/8" (48")

Flats on flat (minimum diameter)

9" x 1-1/4" (30")

Flats on edge (minimum diameter)

4" x 1" (48")

Channels - flanges out (min dia.)

9" @ 20# (48")

Channels - flanges in (min dia.)

7" @ 14.7# (48")

Beams - on flanges (min. dia.)

8" @ 18# (60")

Beams- on web

4 @ 9.5#

Rounds (min dia.)

2-3/4" (30")

Squares (min dia.)

2-1/2" (30")

Standard steel pipe

3-1/2" (38")

XH steel pipe (minimum diameter)

3" (30")

XXH steel pipe (minimum diameter)

2-1/2" (24")

Adjustable roll tonnage

50

Adjustable roll travel

5-3/8"

Lower roll centers

18"

Diameter angle rolls

16-3/8"

Roll speed (RPM)

7.3

Linear speed of workpiece (FPM)

31

Upper roll shaft diameter

6"

Lower roll shaft diameter

5"

Main motor

20 HP / 1730 RPM

Hydraulic pump motor

3 HP

Volts

230 / 460

Phase

3

Cycles

60

Amps

46.4 / 23.2

Approximate dimensions

86" x 80" x 60" high

Approximate weight

13,200 lbs.
