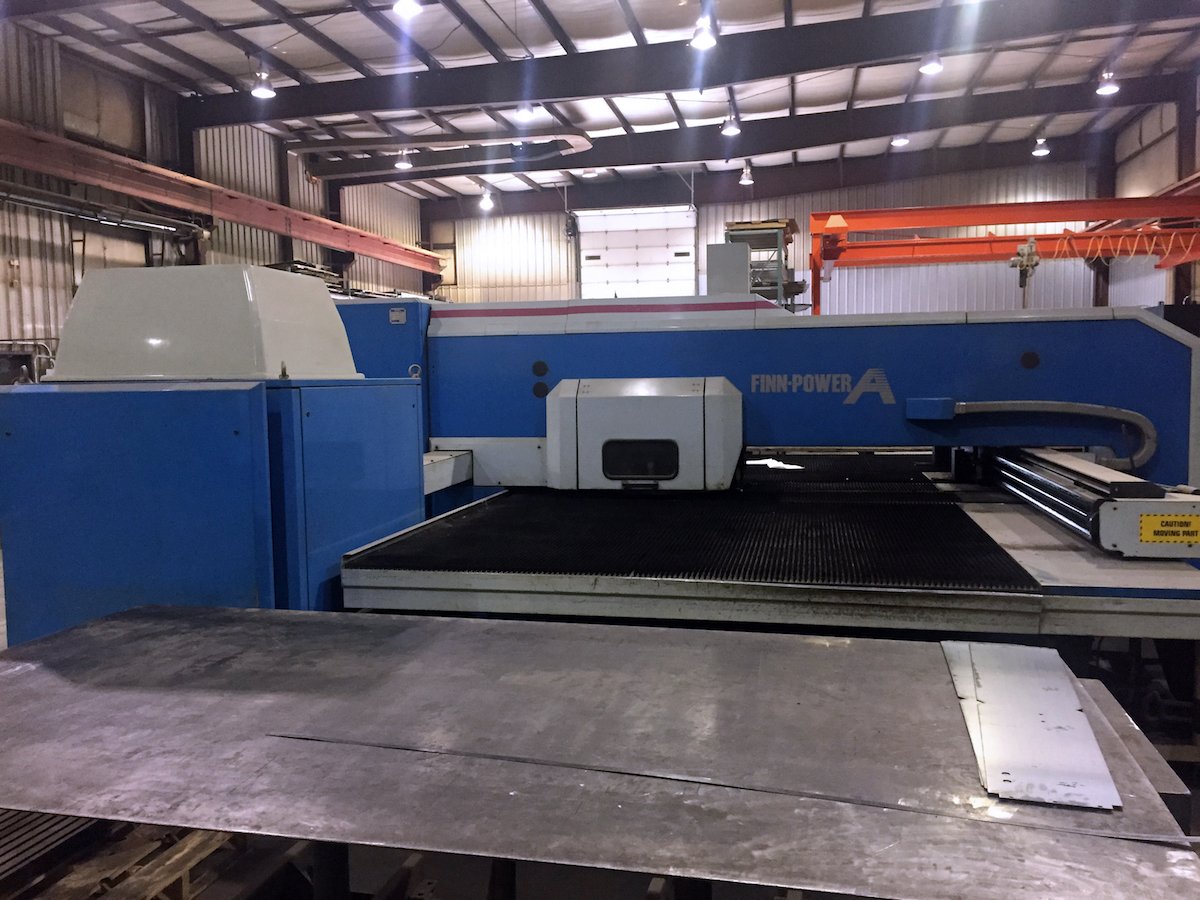

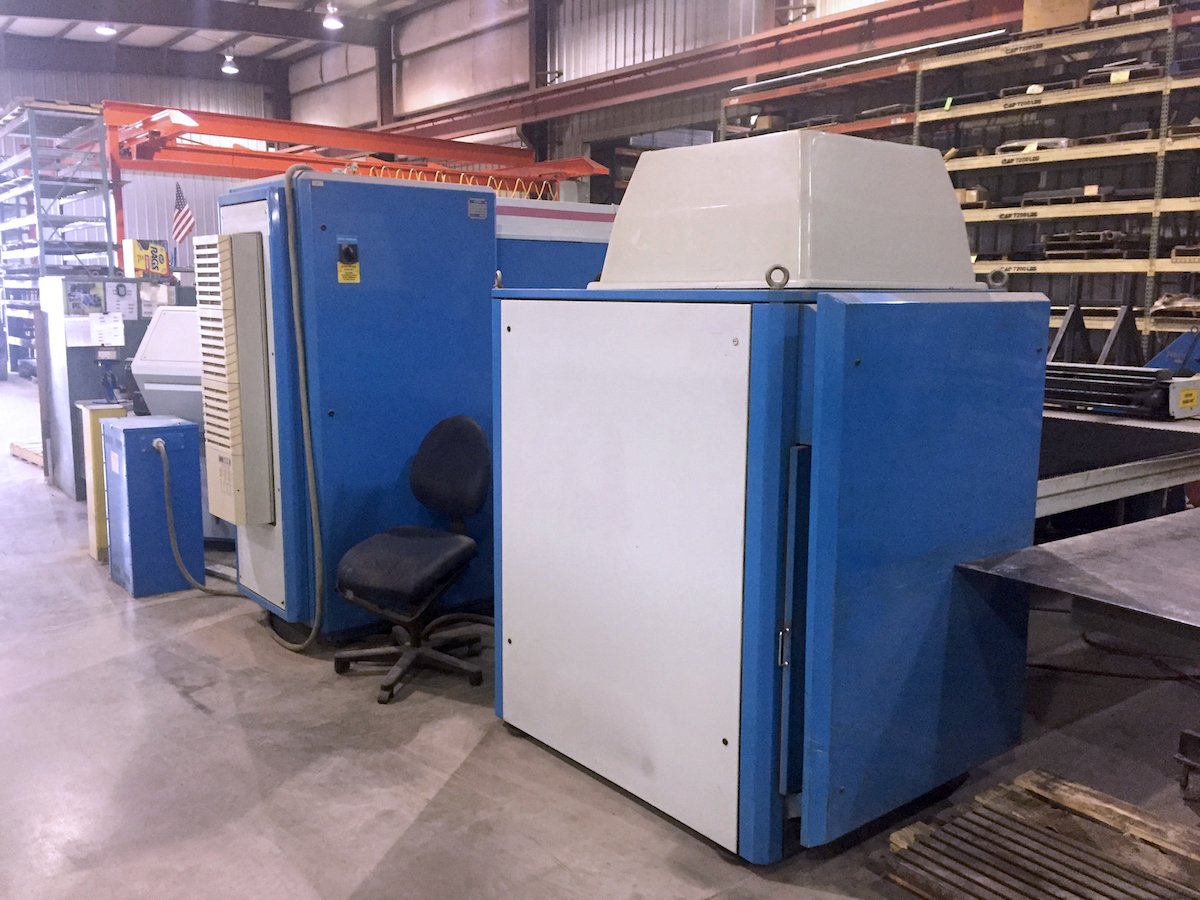

Manufacturer: Finn-Power

Model Number: A5-25-SB

Model Year: 2001

Size: 25 ton

Stock Number: 13077

Thick turret

Large package of tooling

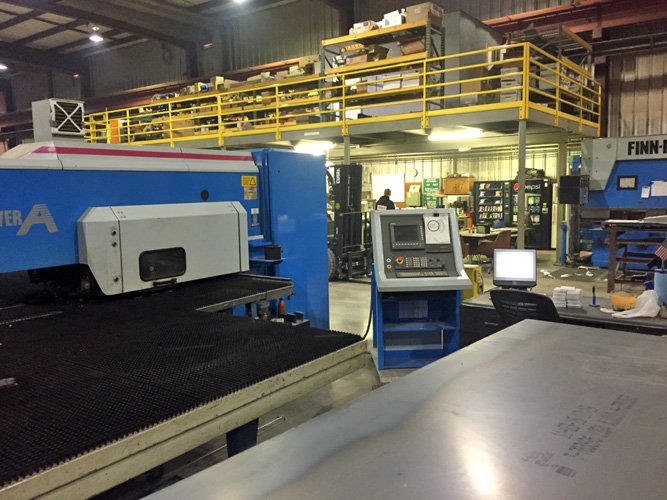

Seimens Sinumerik 840 D CNC controller

Program memory – 1000 kB

Serial interface – RS 232C/V 24

Hydraulic punch stroke

Numerically adjustable stroke depth adjustment

Programmable stroke length adjustment

Programmable ram speed adjustment

Chip conveyor

Punching forcNumber of turret stationse

25 tons (230 kN)

Number of turret stations

20 pcs

Number of index tool stations

std 2 pcs (max 10 pcs)

Maximum punch diameter

3.5" (89 mm)

Maximum tool rotation

58 RPM

Maximum material thickness

0.315" (8 mm)

Maximum sheet weight (1)

441 lbs (200 kg)

Clamps

pneumatic 2 pcs (optional 3 pcs)

Maximum sheet size (X - Y)

100" x 50" (2530 mm x 1270 mm)

X-axis traverse

101.73" (2584 mm / X42 .. X2542)

Y-axis traverse

51.85" (1317 mm / Y25 .. Y1292)

Axis speed max. (X, Y)

80 m/min, 60 m/min

Traversing speed max.

100 m/min

Hit speed, max. (2)

—

... 1 mm between holes

600 1/min

... 25 mm between holes

320 1/min

... 250 mm between holes

140 1/min

Punching accuracy LKP-7100 (3)

—

... Hole location deviation, max.

0.1 mm (X & Y)

... Hole-to-hole distance deviation, max.

+/- 0.05 mm (X & Y)

... Angular deviation, max.

+/- 0.1° (CNC index tool)

Positioning accuracy VDI/DGQ 3441 (4)

—

... Positional deviation Pa

0.08 mm (X & Y)

... Positional accuracy Ps

0.04 mm (X & Y)

Turret rotation

30 r/min

Tool change time

1 – 3 seconds

Work chute, max. part size

7.875" x 7.875" (200 mm x 200 mm)

Oil tank volume

330 l

Power supply

40 kVA

Power consumption, average

20 kW

Compressed air consumption, max.

5 NI/s

Compresssed air pressure, min.

6 bar

Oil cooler, cooling capacity max.

30 kW

Air flow in oil cooler

2.9 m3/s

Dimensions (with auxiliary table):

213" x 221" x 99" high

Total weight

26,455 lbs (12,000 kg)
