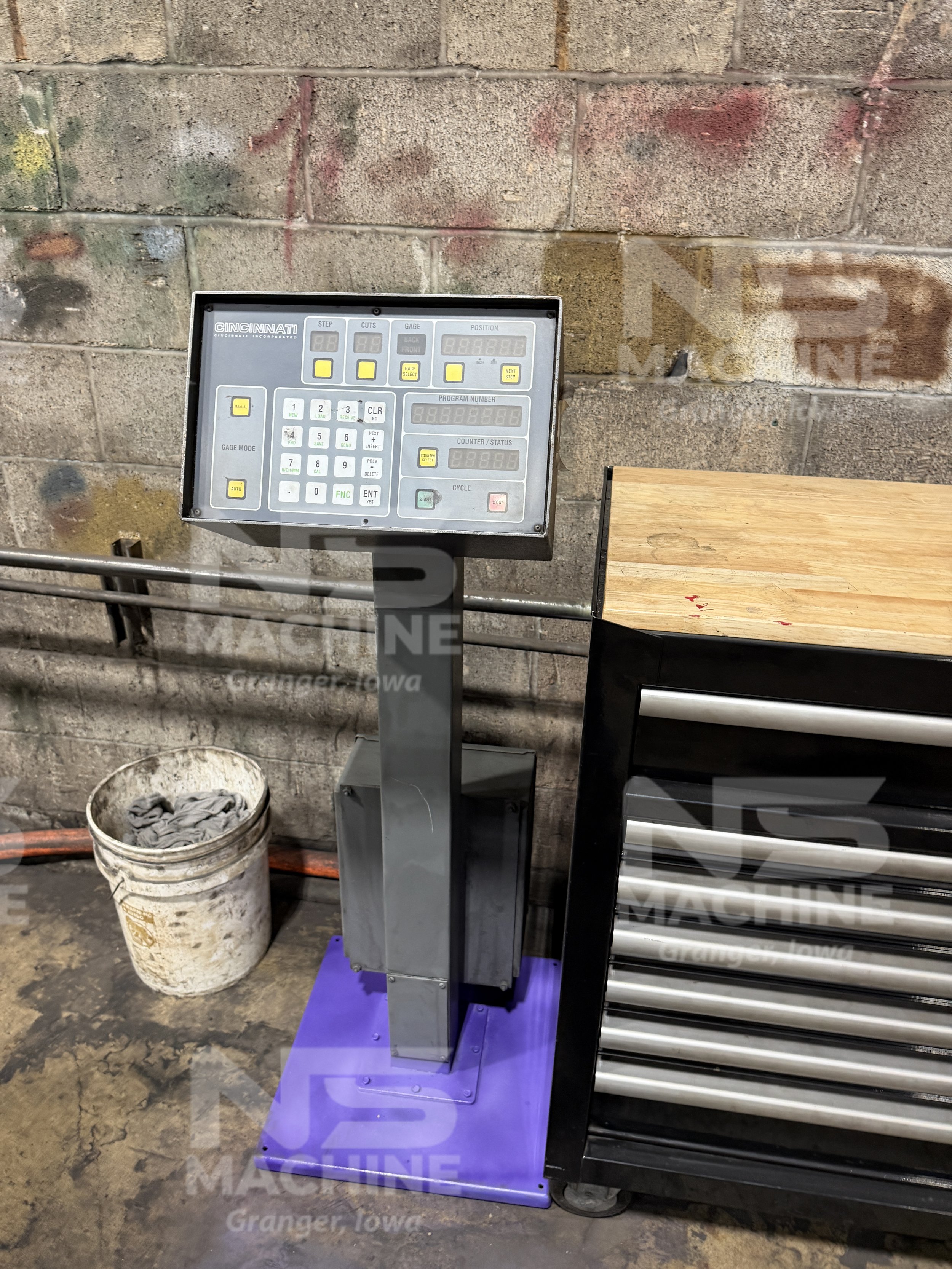

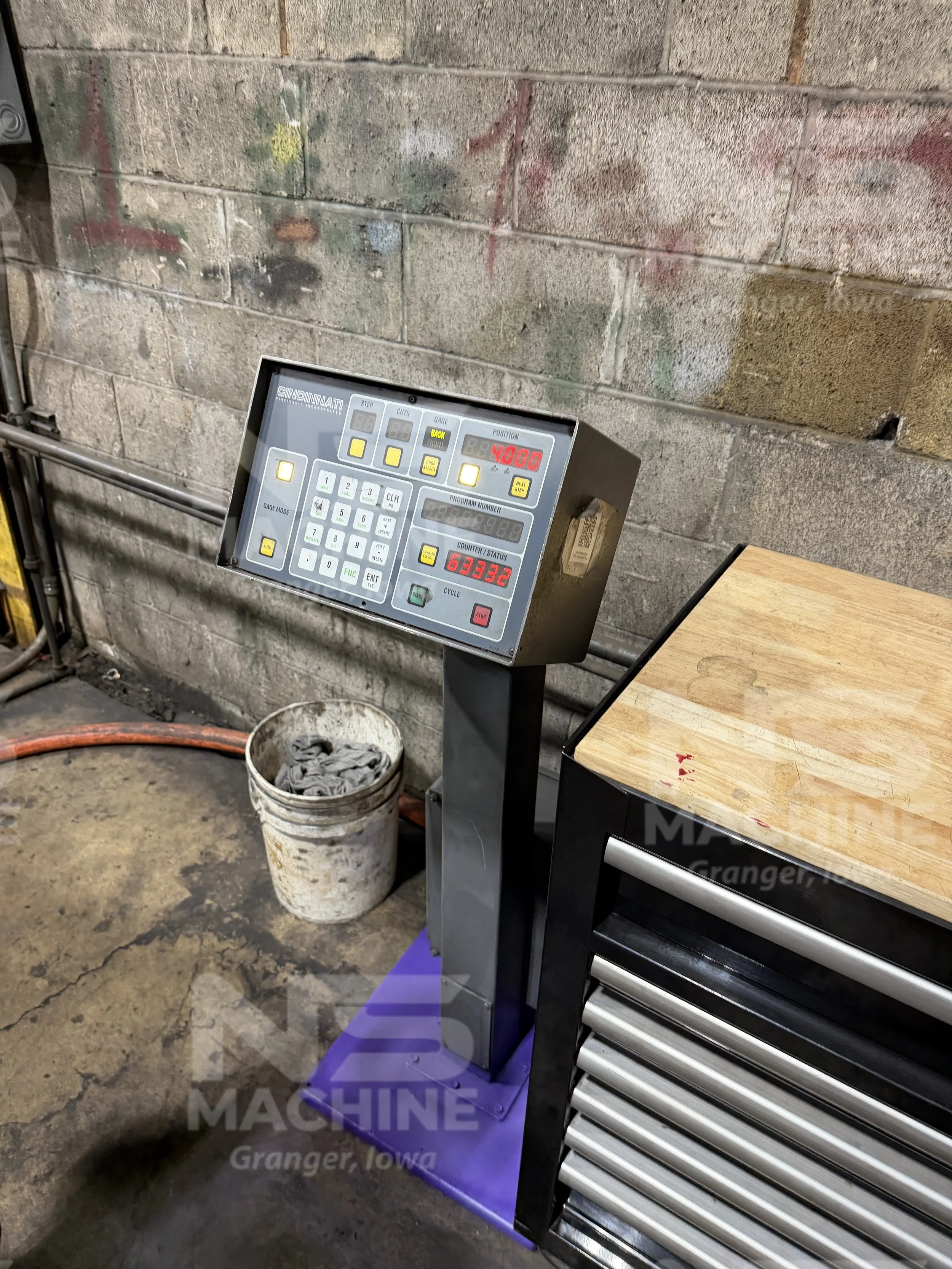

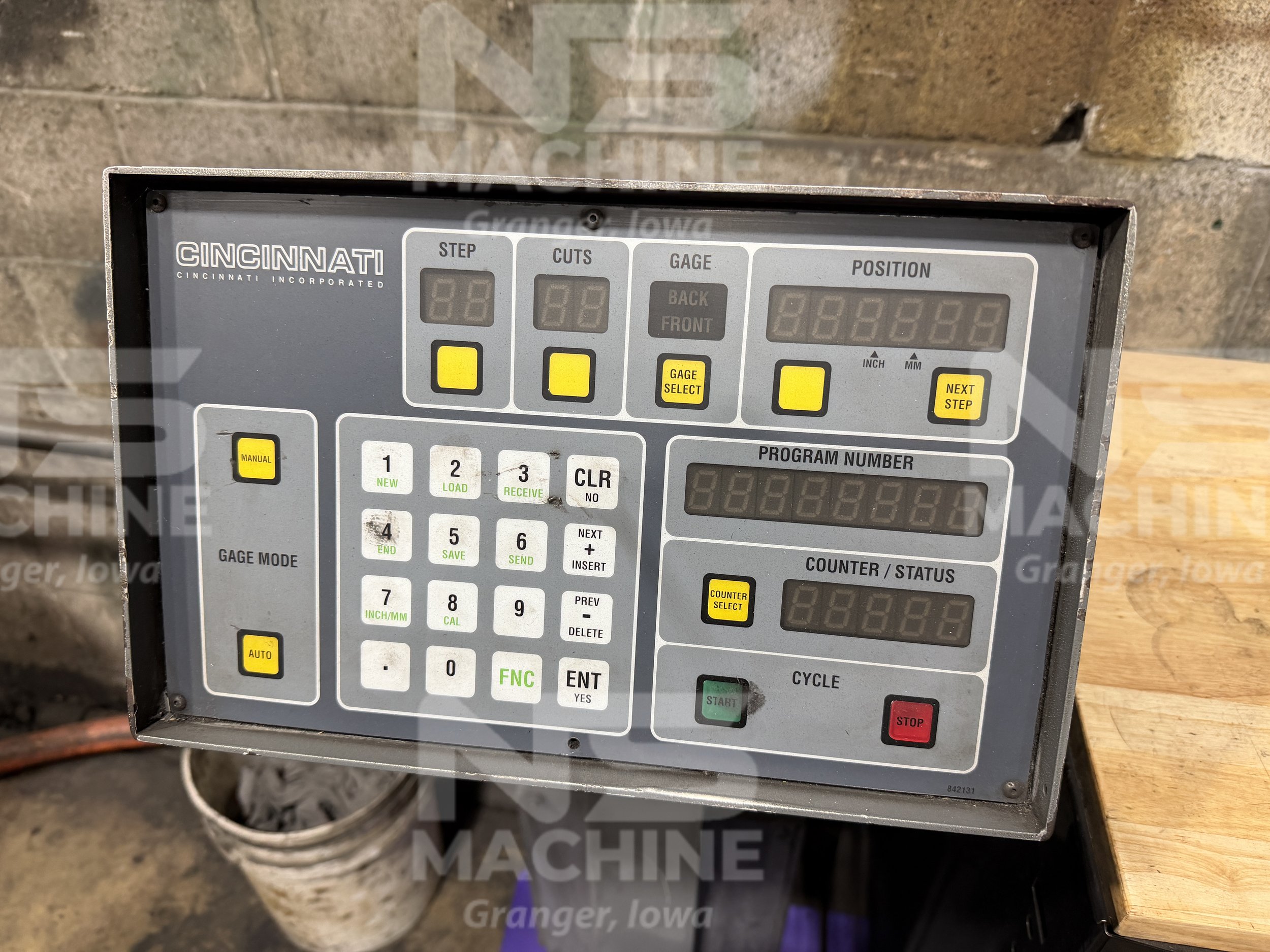

Operator control stand

Foot pedal control

36" power back gauge

13' squaring arm

Ball transfers in table

Finger guard

Cutting length: 12'

Maximum thickness capacity: 3/8"

Length of blades: 148"

Number of hydraulic hold downs: 13

Back gauge motor: 1/2 HP

Main motor: 20 HP

... RPM: 1675

... Volts: 230/460

... Phase: 3

... Cycles: 60 Hz

... Amps: 52 / 26

Main control panel: Type-12 Enclosure

... Volts: 460

... Phase: 3

... Cycles: 60 Hz

... Max. rating of overcurrent device(s): 45 A

... Full load current: 37.06 A

... Largest motor rating: 27 A

... Panel short circuit current rating: 5000 A

Approximate dimensions (without back gauge): 188" LR x 82" FB

Below floor: 12"

Height from floor: 86"

Shipping height on blocks: 102"

Approximate weigfht: 33,000 lbs.

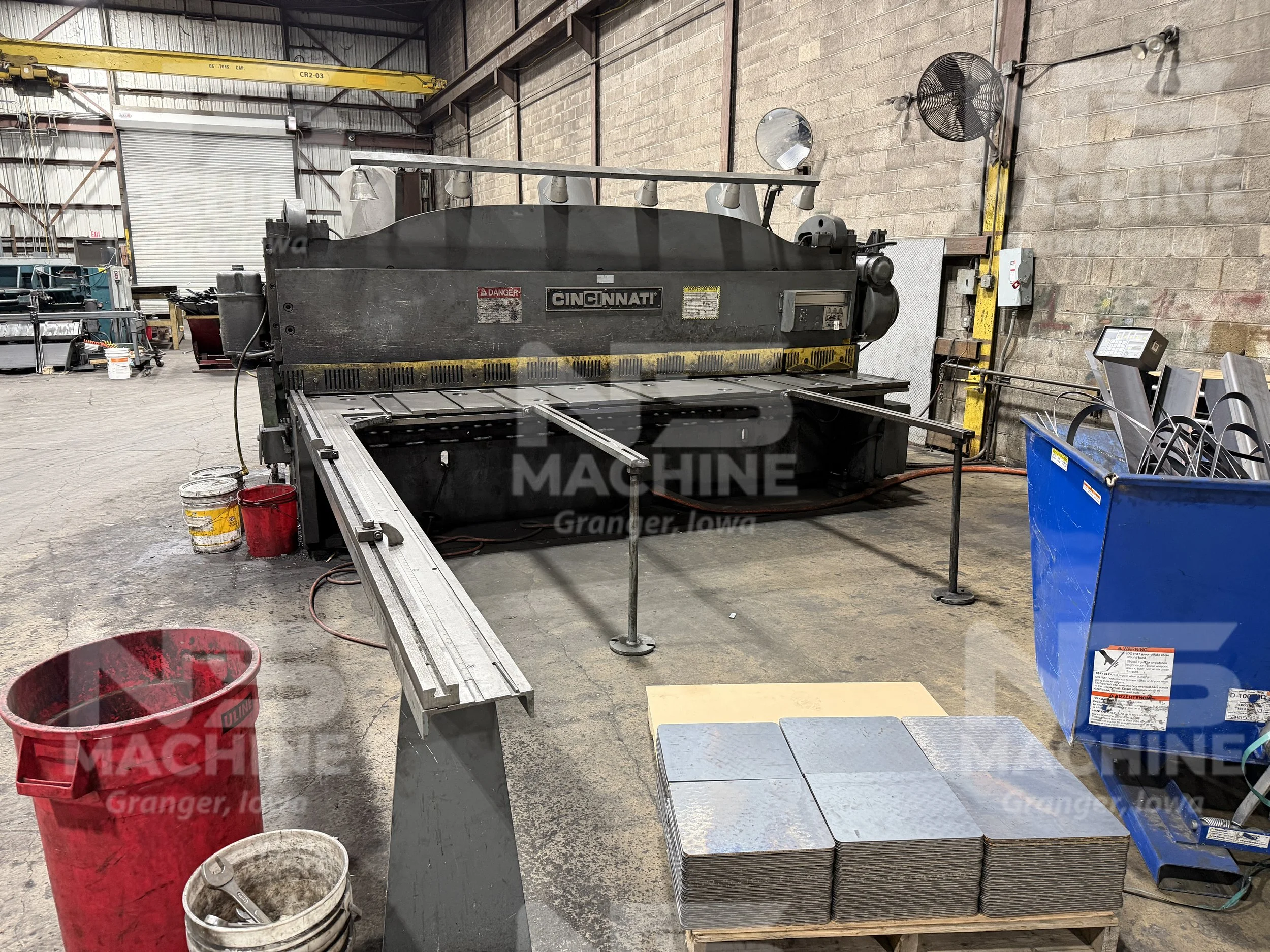

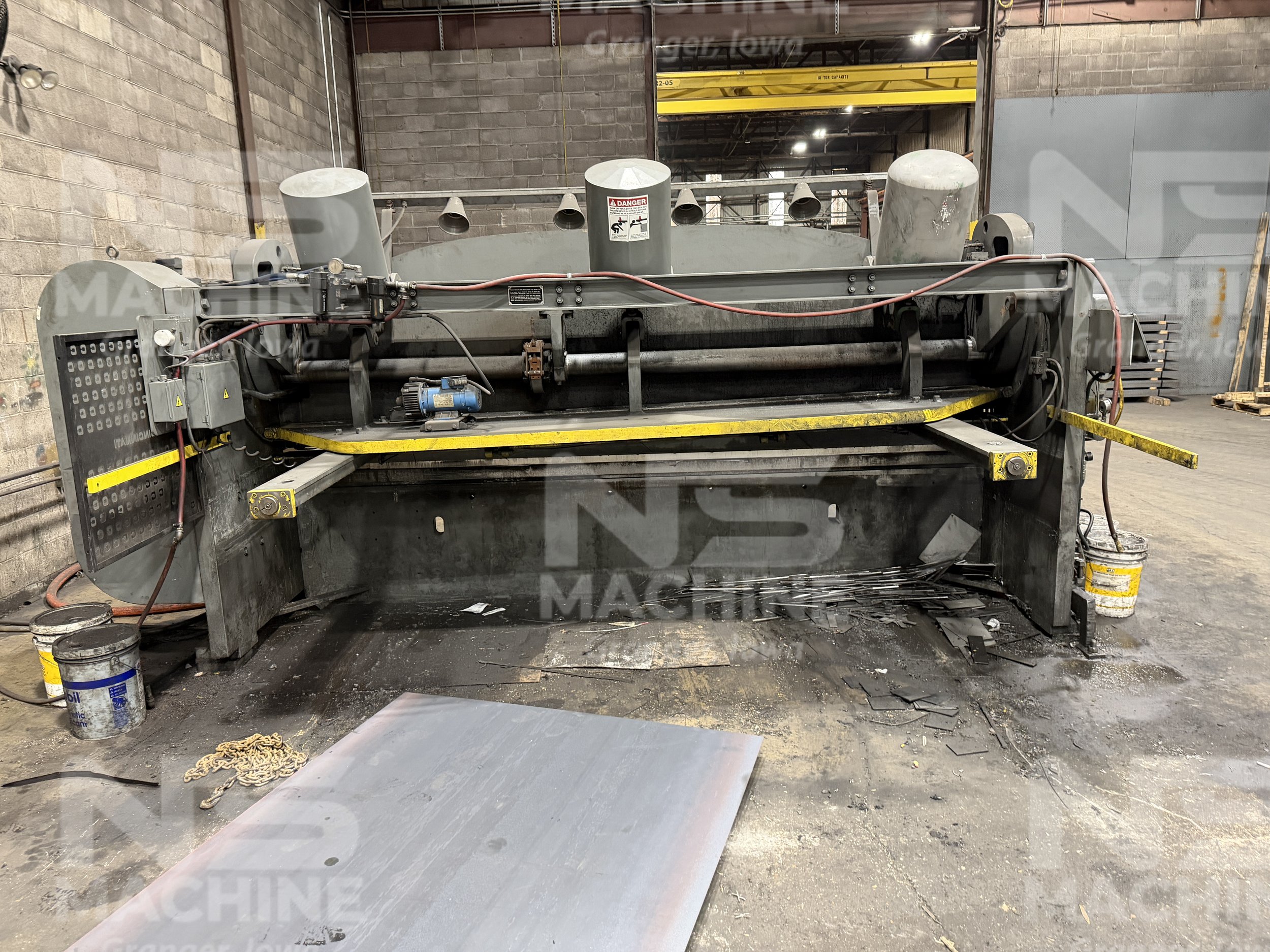

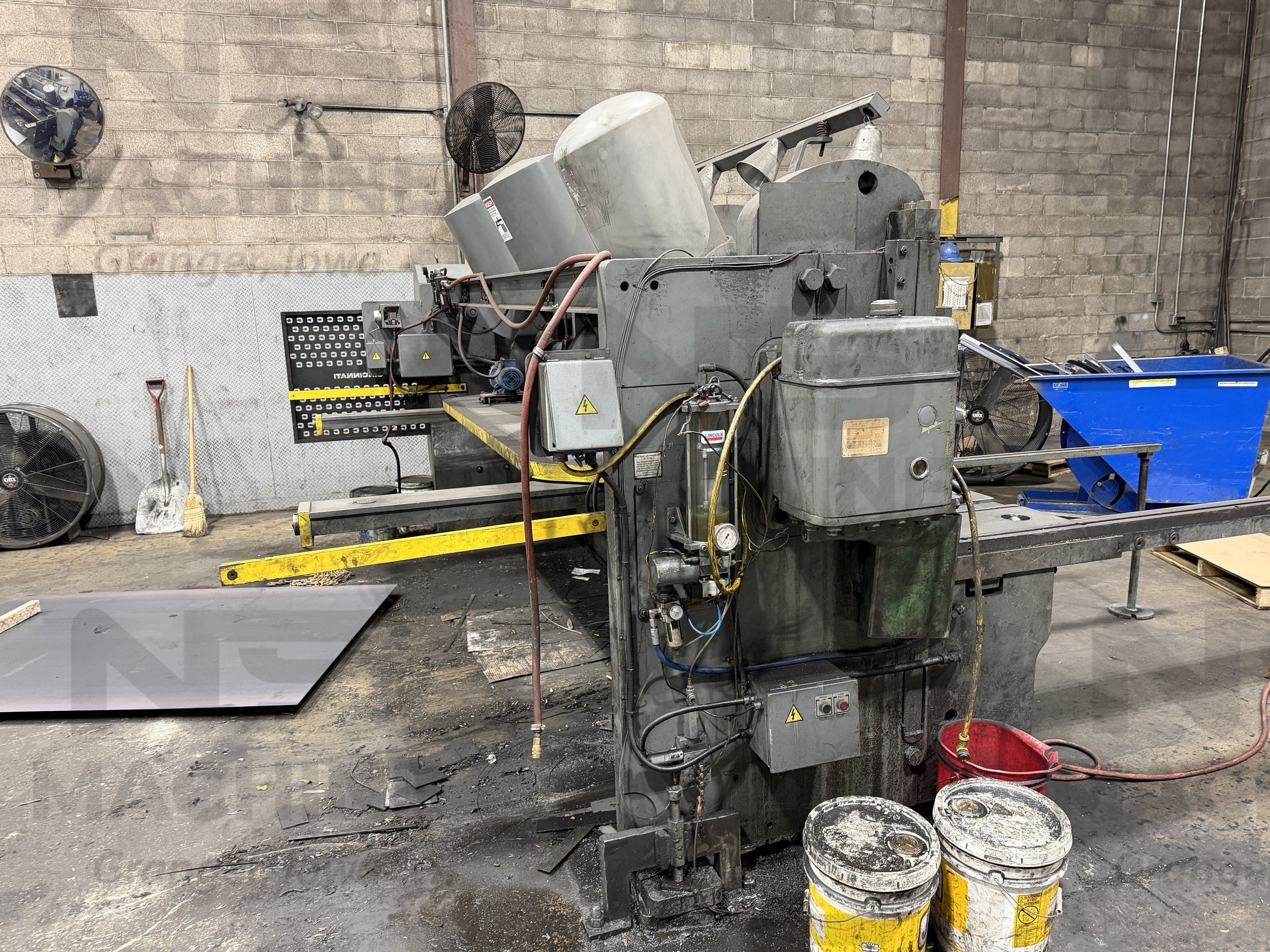

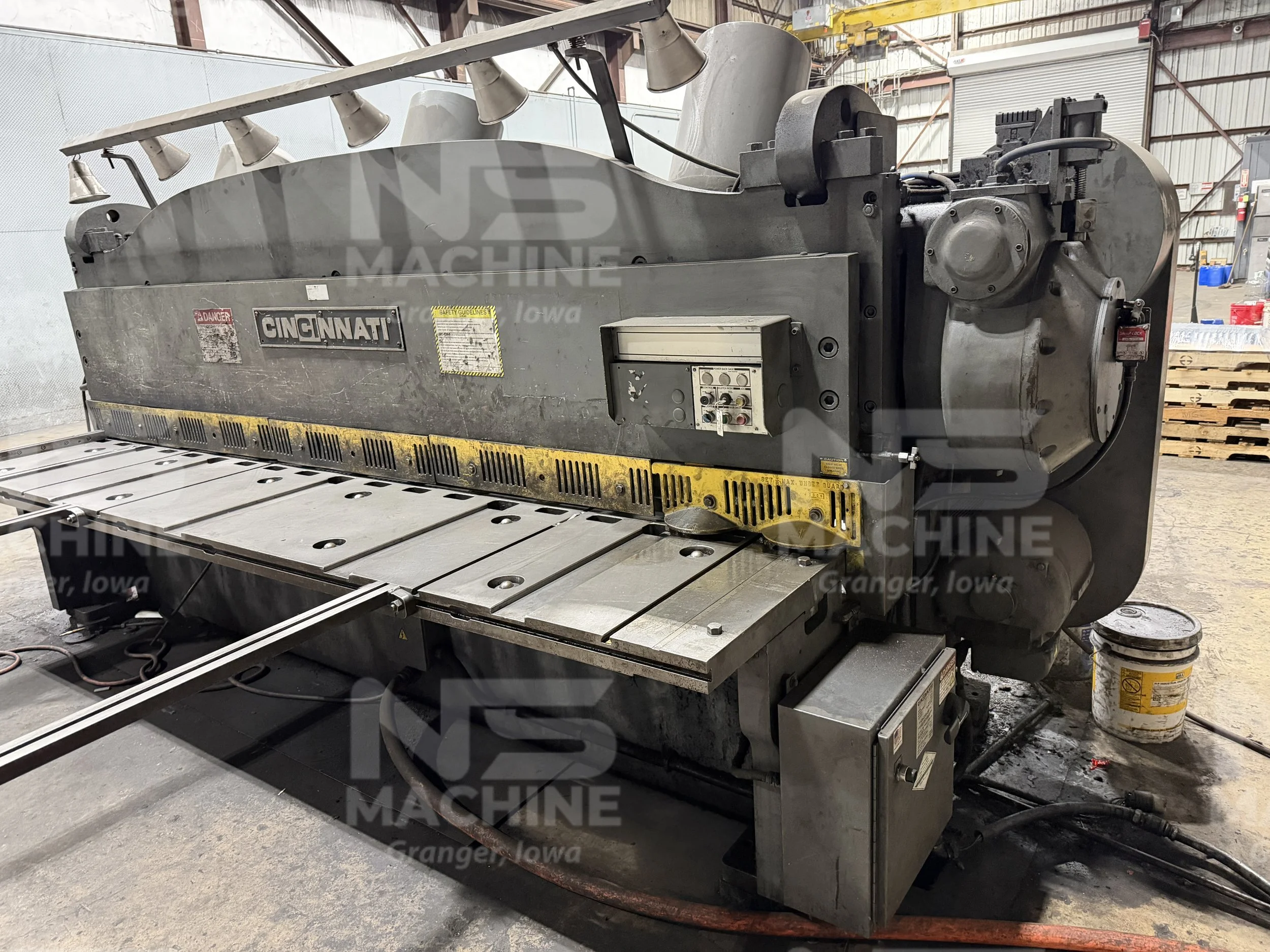

This 12’ x 3/8” Cincinnati Power Squaring Shear is a 2019 model #2512G and is equipped with an Operator control stand, Foot pedal control, 36" power operated back gauge, 13' squaring arm, Ball transfers in table and Finger guard.

For questions or to schedule an inspection of this 12’ x 3/8” Cincinnati Power Squaring Shear, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 12’ x 3/8” Cincinnati Power Squaring Shear, use the “Request Quote” button on this page.
