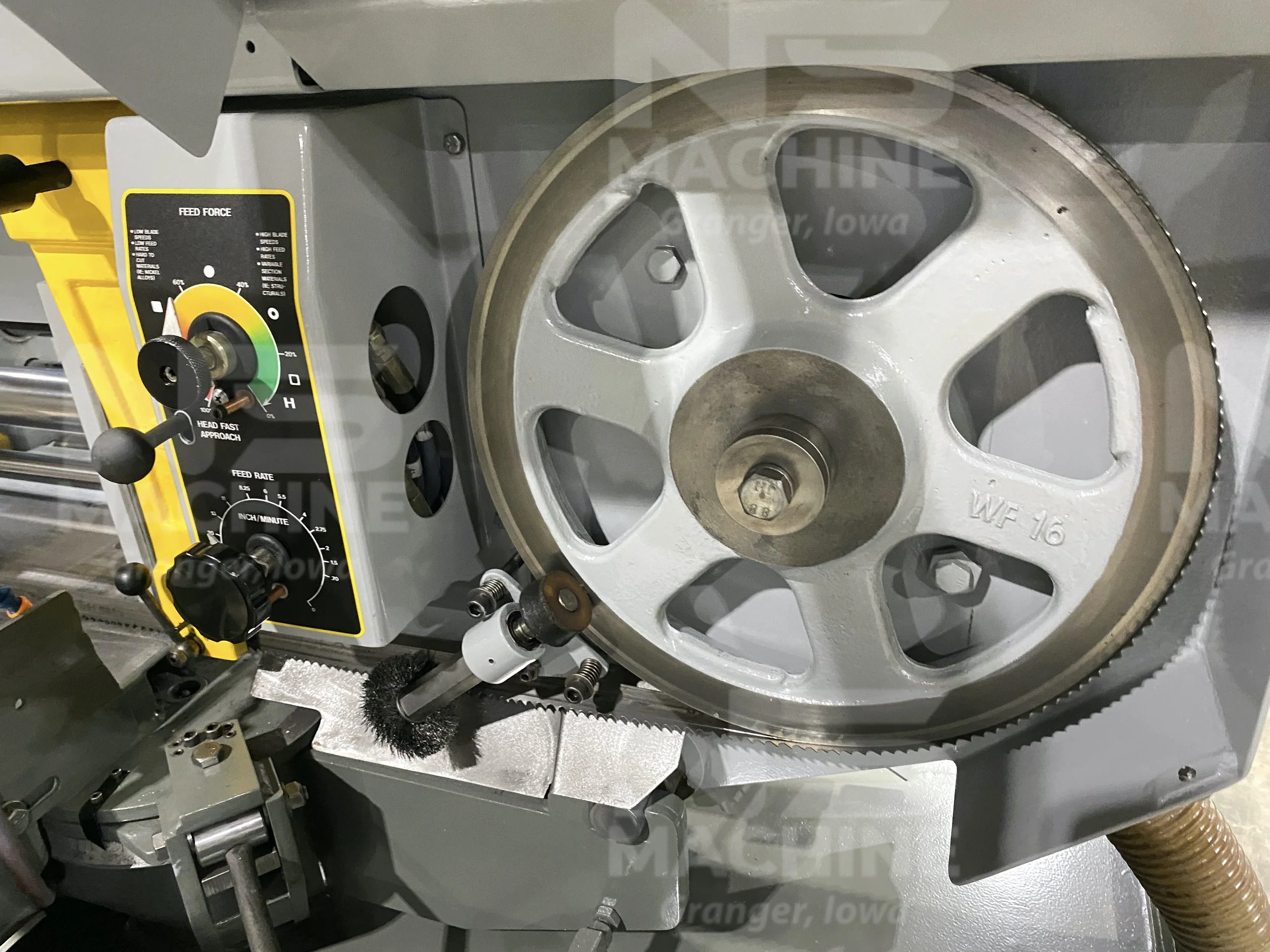

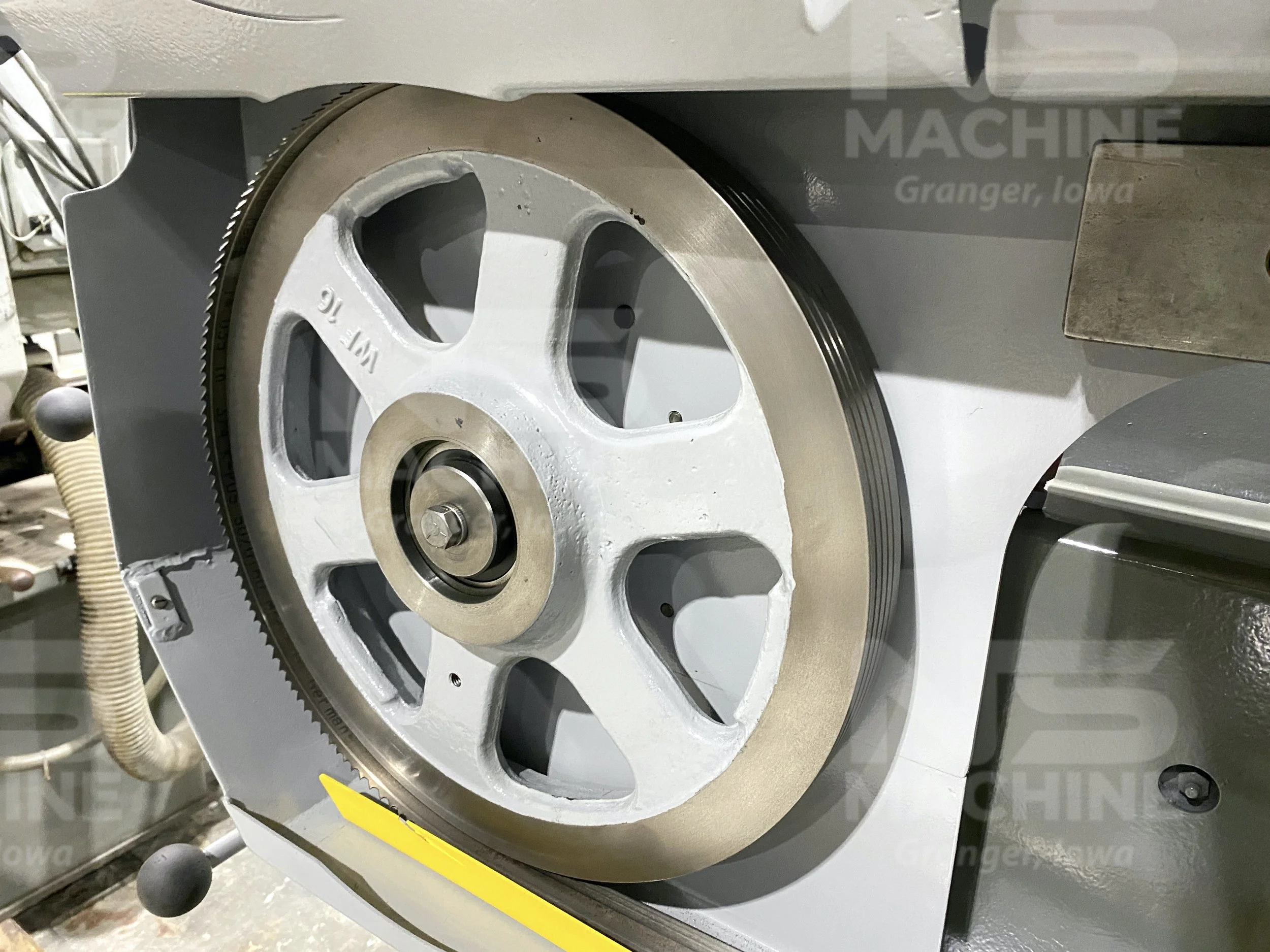

New Band Wheels

Overhead bundling

New Blade Brush

29" Shuttle Stroke

Cleaned, Painted & Cycle

Capacity, rectangular @ 90°: 13" x 18"

Capacity, rectangular @ 45°: 13" x 10-3/4"

Capacity, rectangular @ 30°: 13" x 7-3/4"

Capacity, rounds @ 90°: 13"

Capacity, rounds @ 45°: 12"

Capacity, rounds @ 30°: 8-1/2"

Blade Speed: 75-330 SFM

Blade Size: 1” x 14” 10”

Shuttle stroke: 0-29" single stroke

Work load: 5,000 lbs.

Table height: 31"

Coolant Tank Capacity: 12 US gal

Blade Drive: 5 HP

Volts: 480

Phase: 3

Cycles: 60

Approximate dimensions: 93” x 86” x 52” high

Approximate weight: 3,800 lbs.

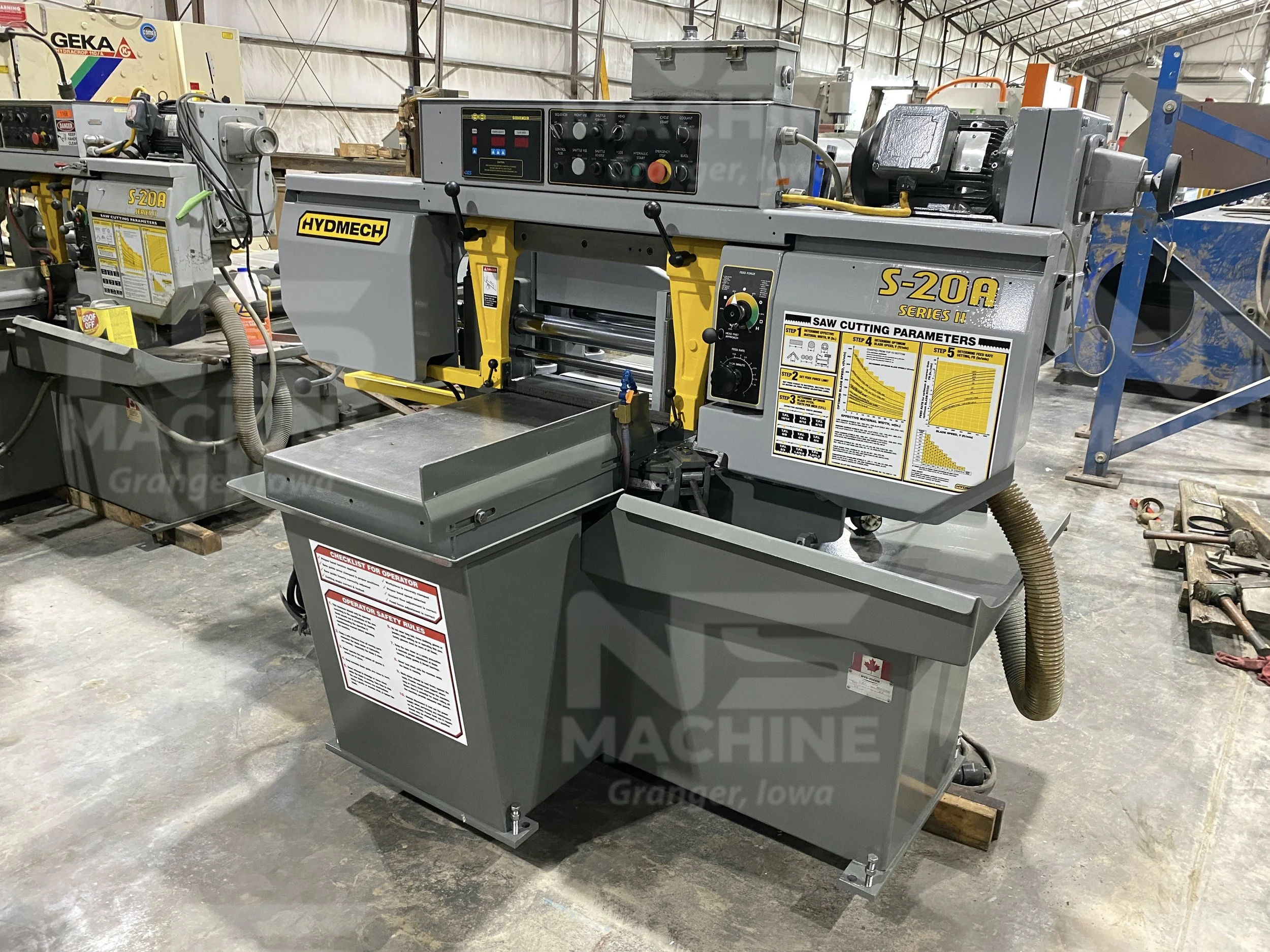

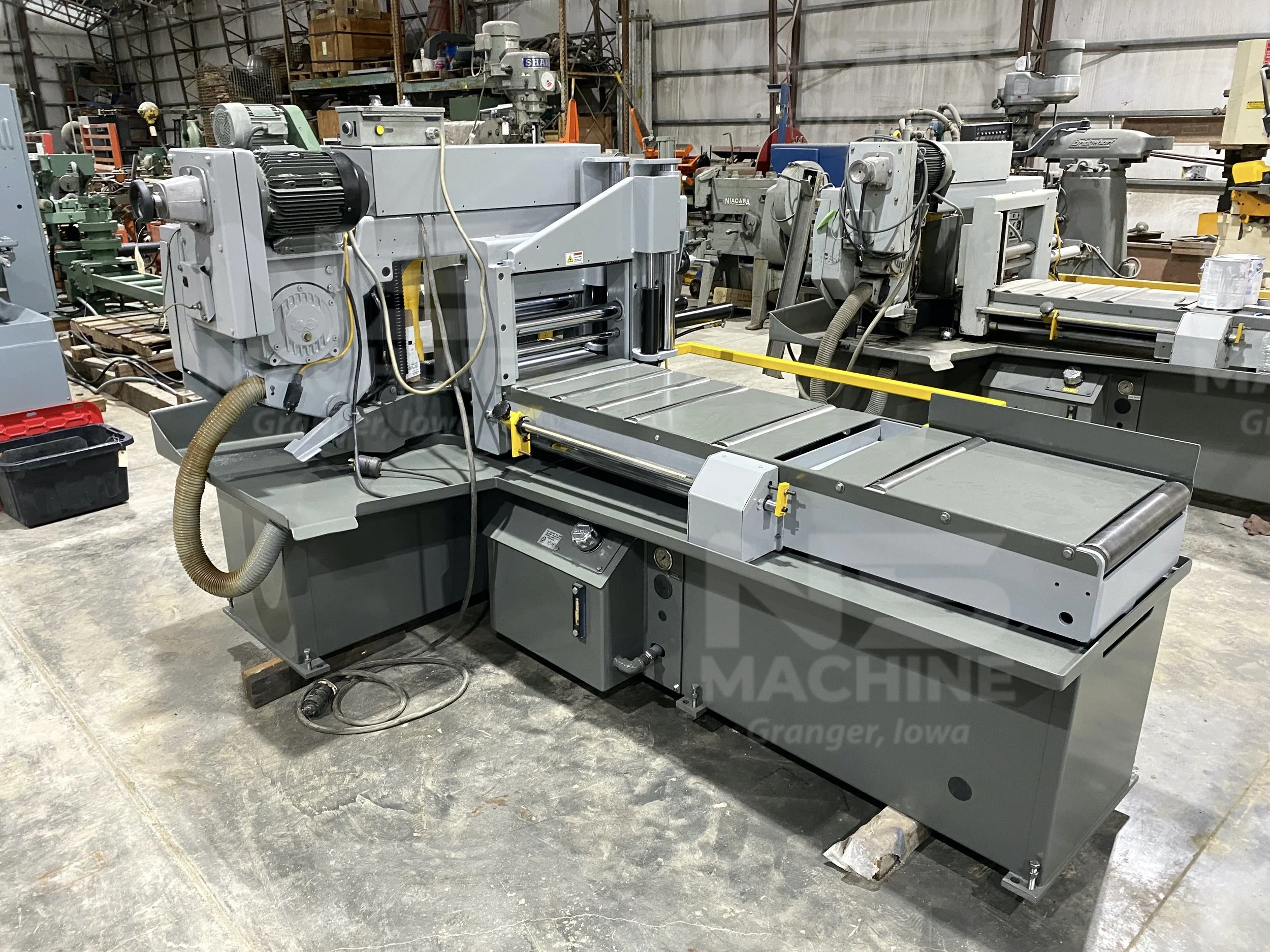

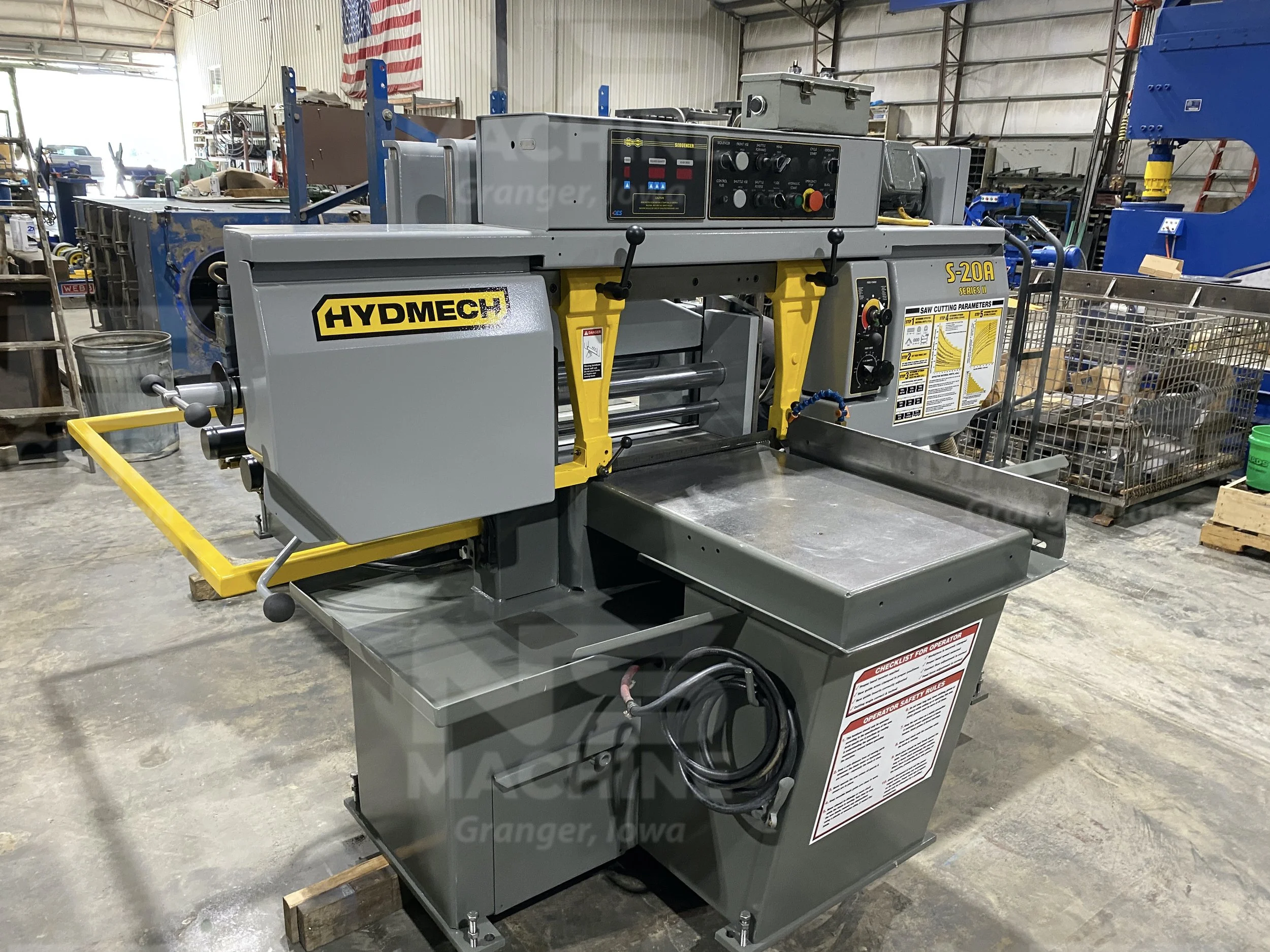

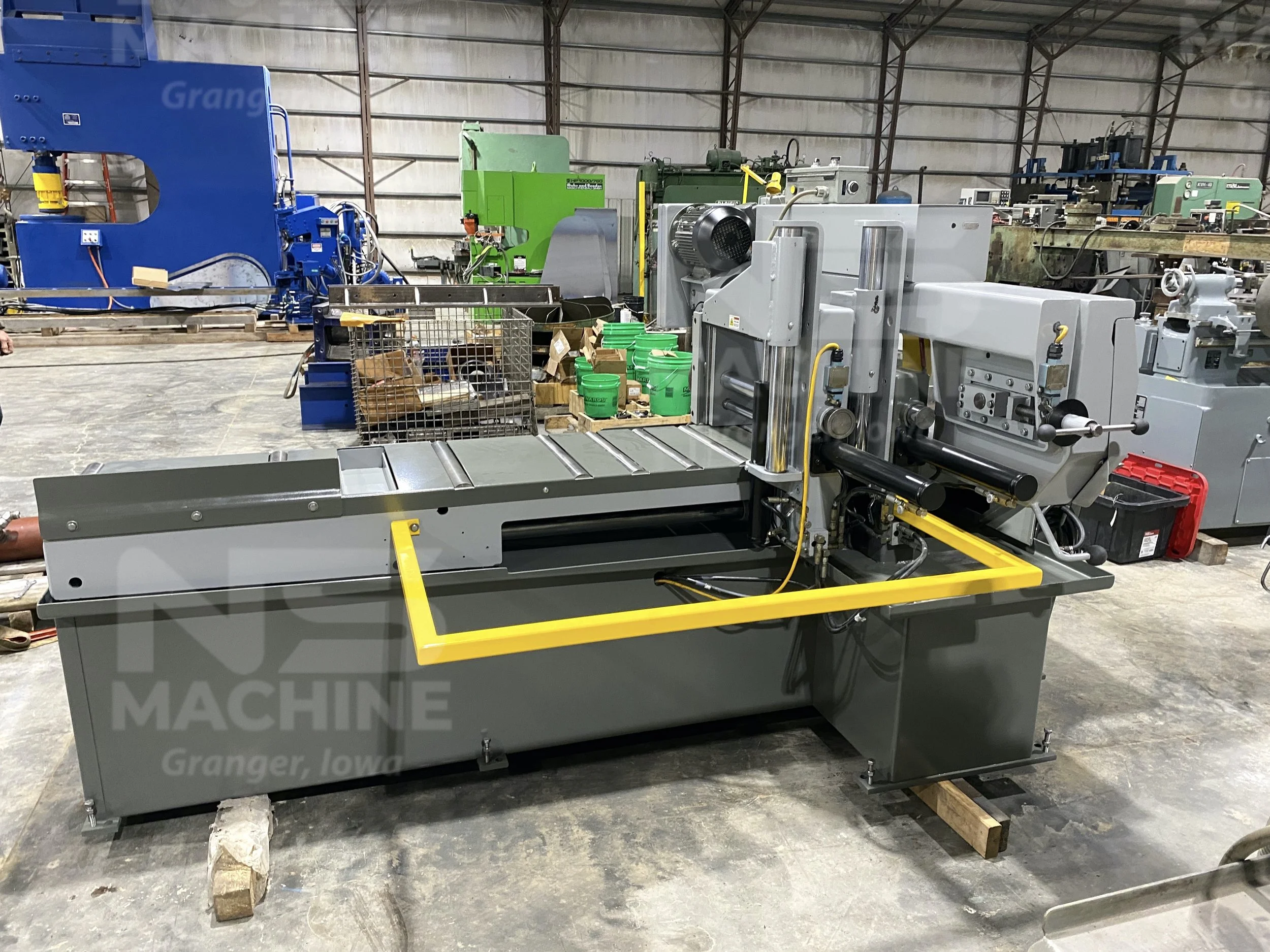

This Hyd-Mech S-20A Horizontal Bandsaw is equipped with overhead bundling and has a maximum capacity of 13” x 18” rectangles and 0-29” shuttle stroke.

For questions or to schedule an inspection of this Hyd-Mech S-20A Horizontal Bandsaw, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote, use the “Request Quote” button on this page.
