1/2” Webb M-5 Offset Forming Rolls (Joggler)

1/2" Webb M5 Offsetter with Turn Table | 14047-1

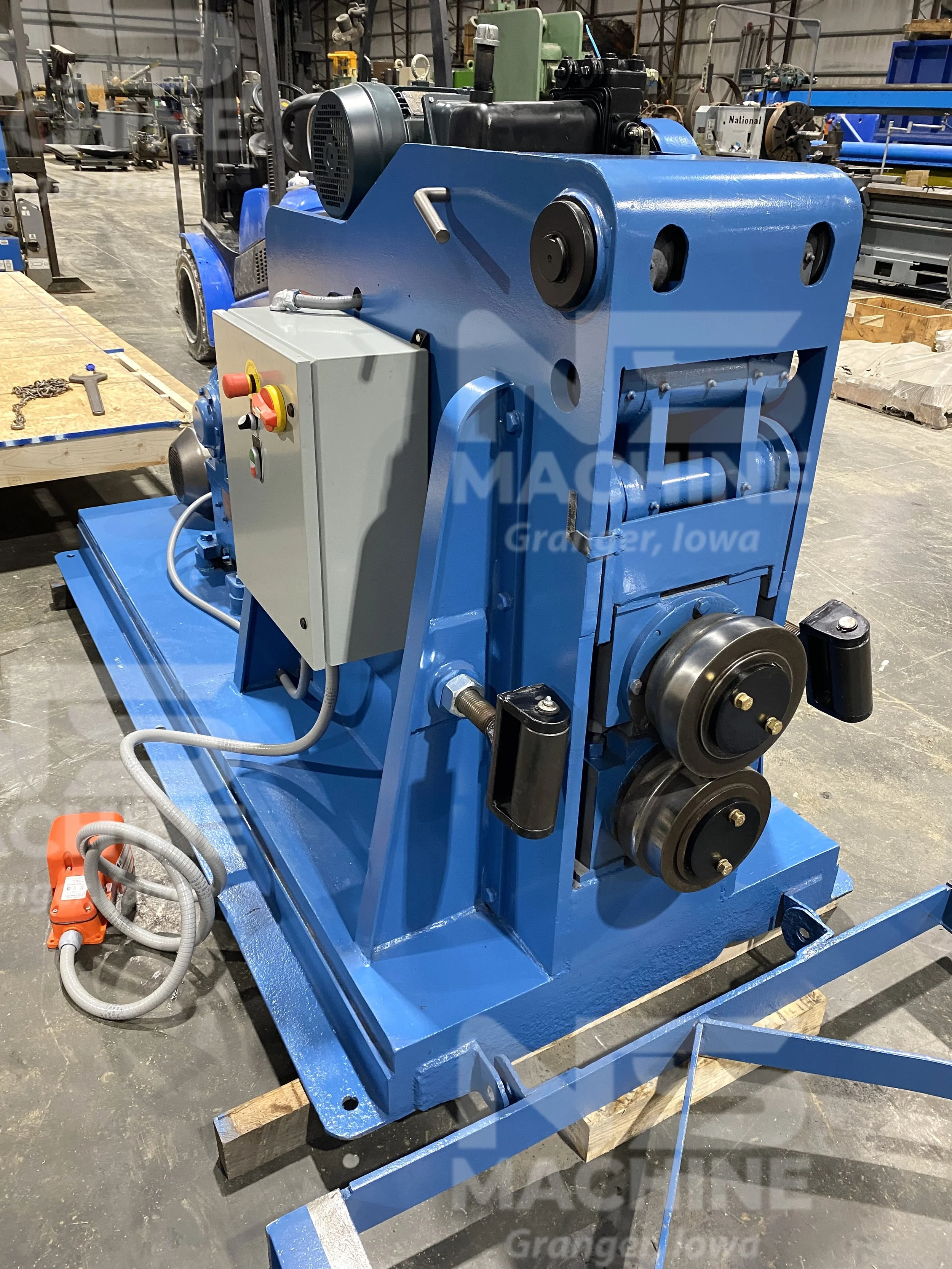

1/2" Webb M5 Offsetter with Turn Table | 14047-2

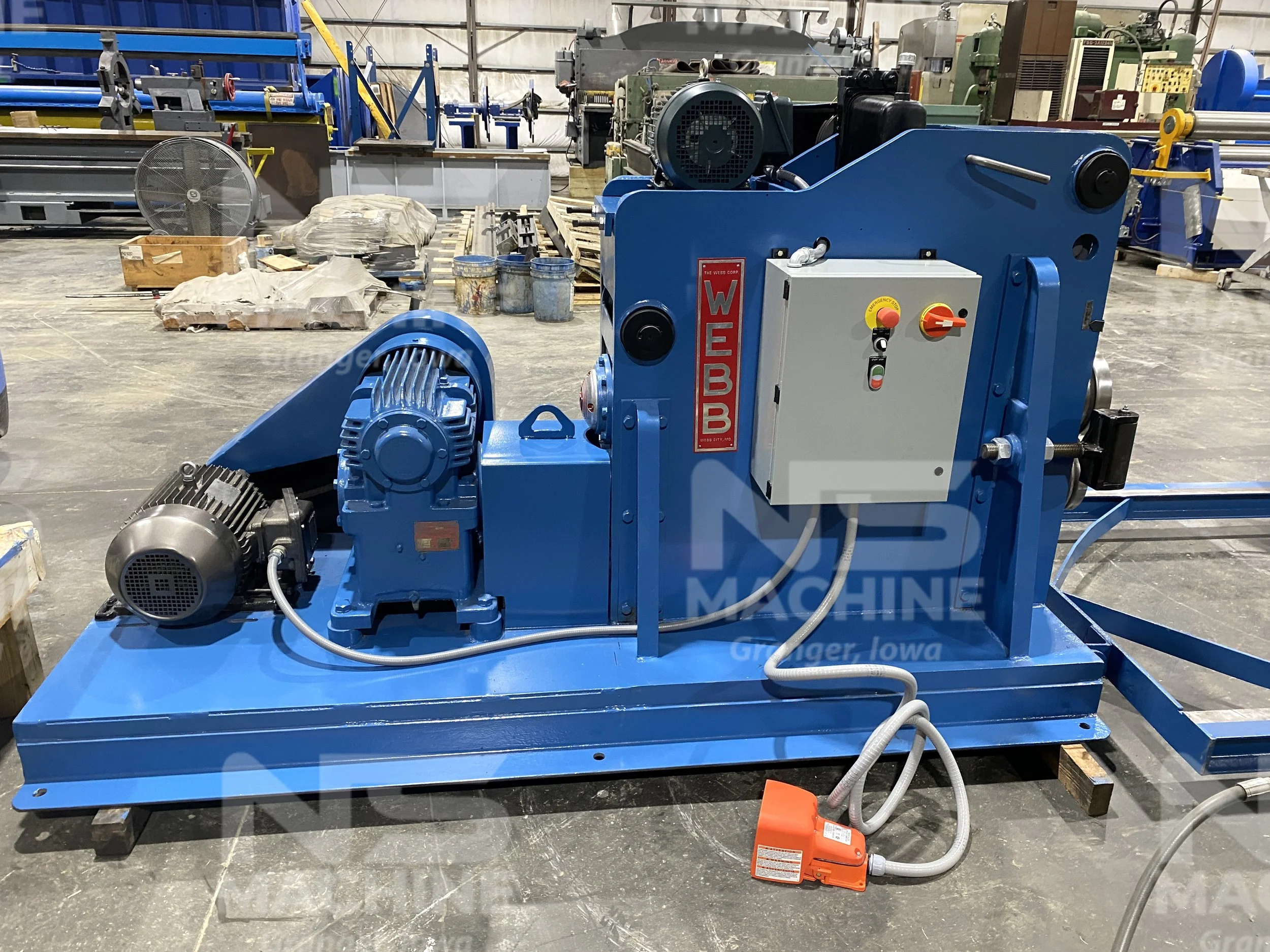

1/2" Webb M5 Offsetter with Turn Table | 14047-3

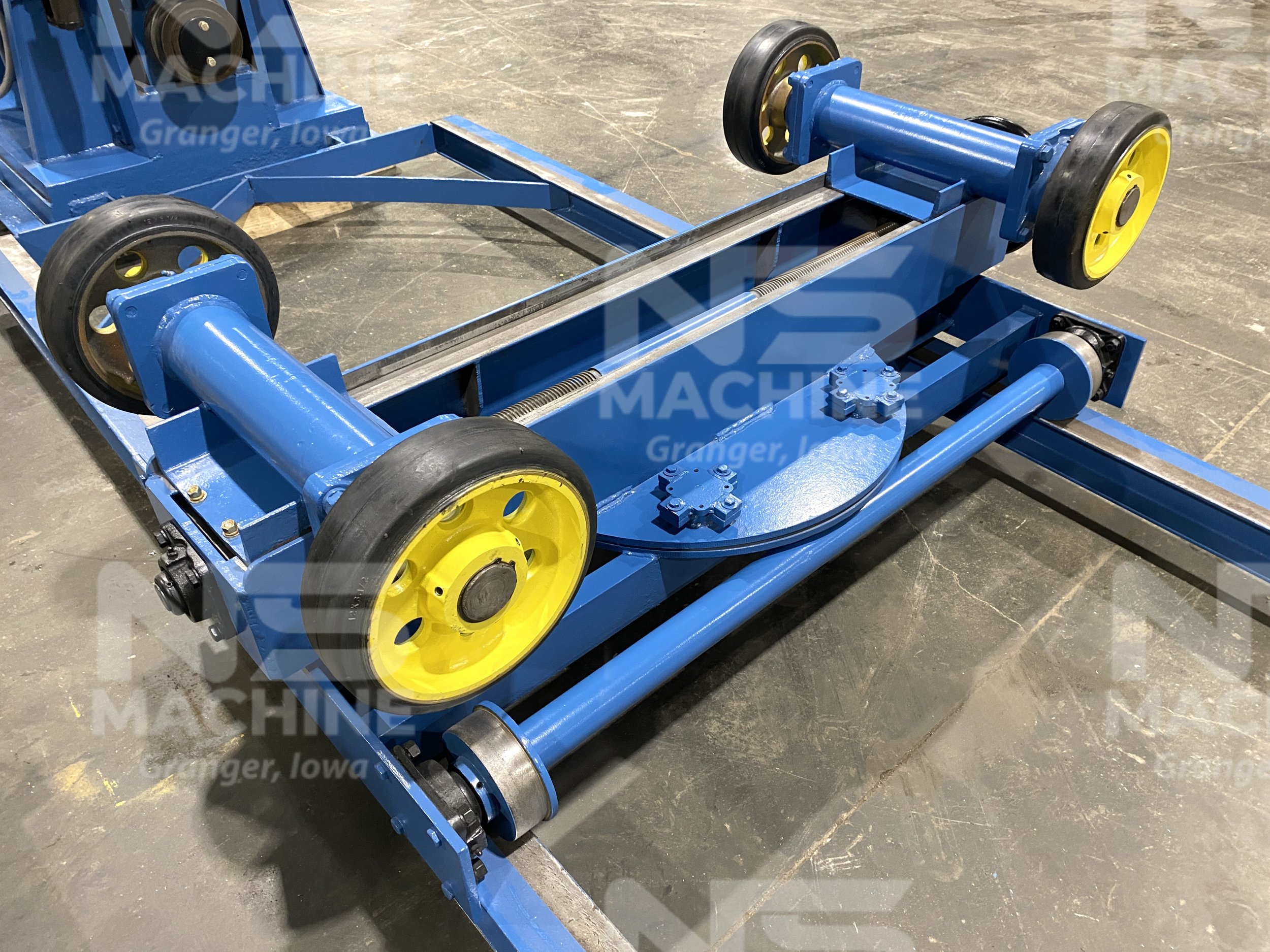

1/2" Webb M5 Offsetter with Turn Table | 14047-4

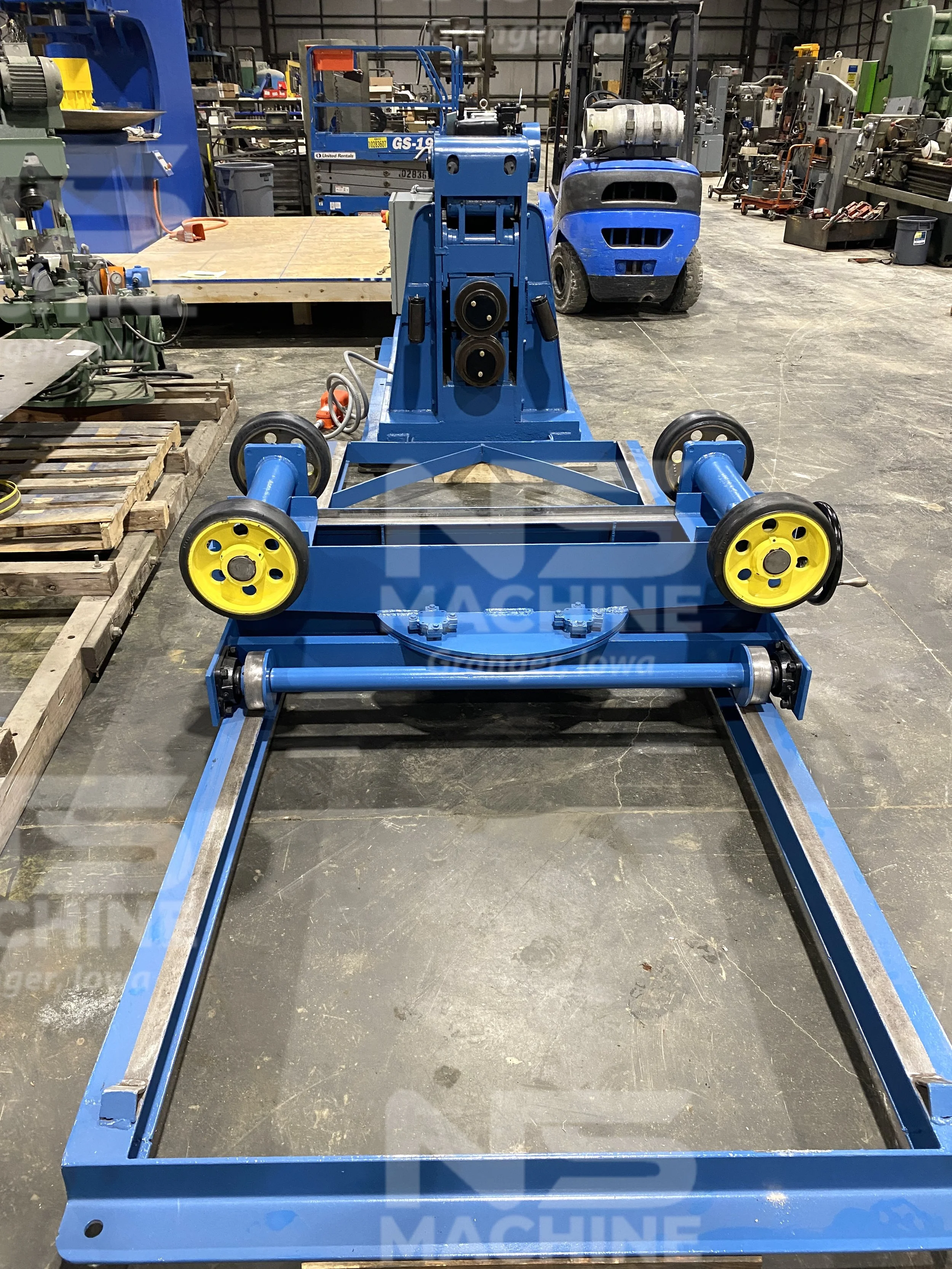

1/2" Webb M5 Offsetter with Turn Table | 14047-5

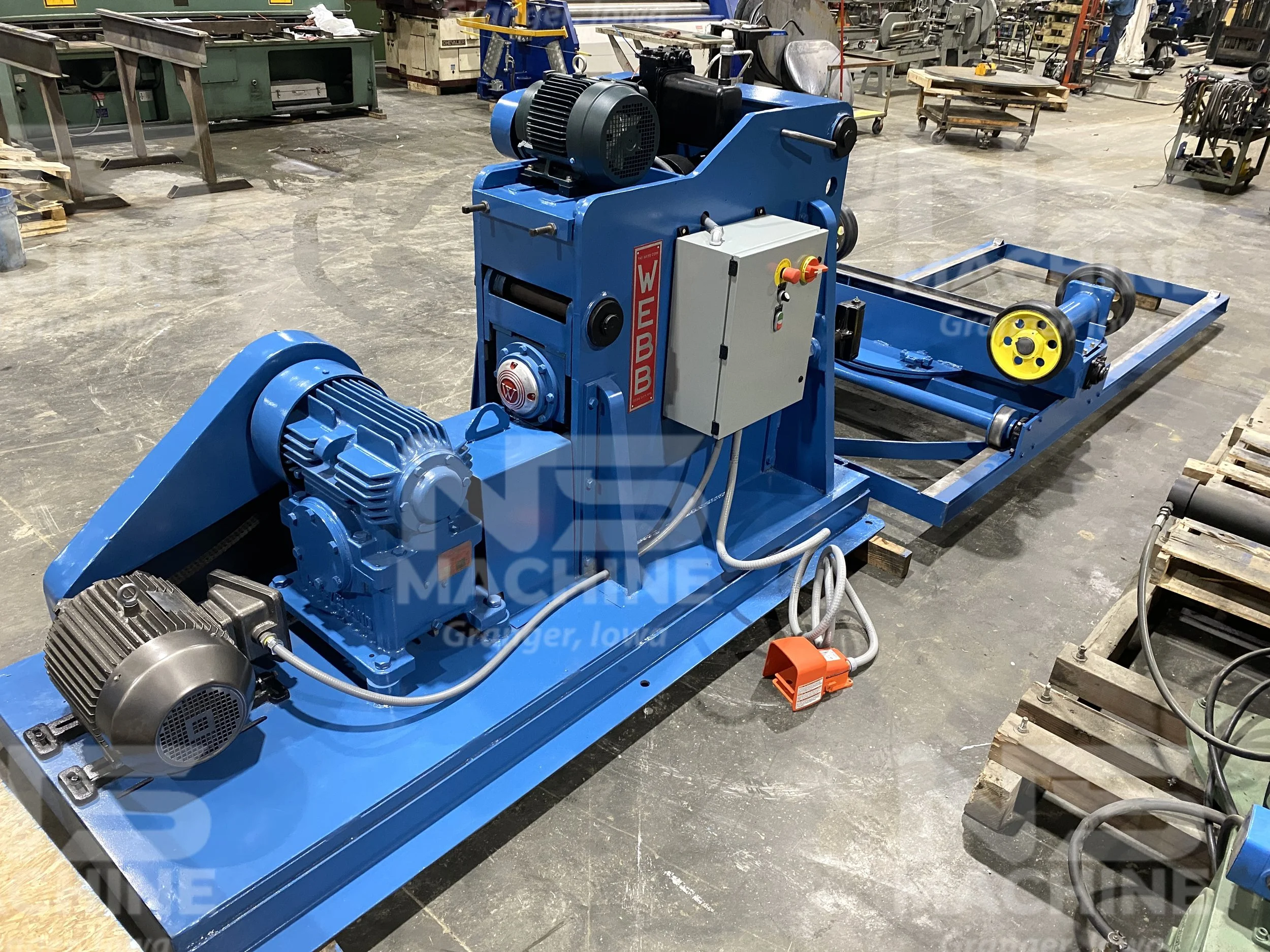

1/2" Webb M5 Offsetter with Turn Table | 14047-6

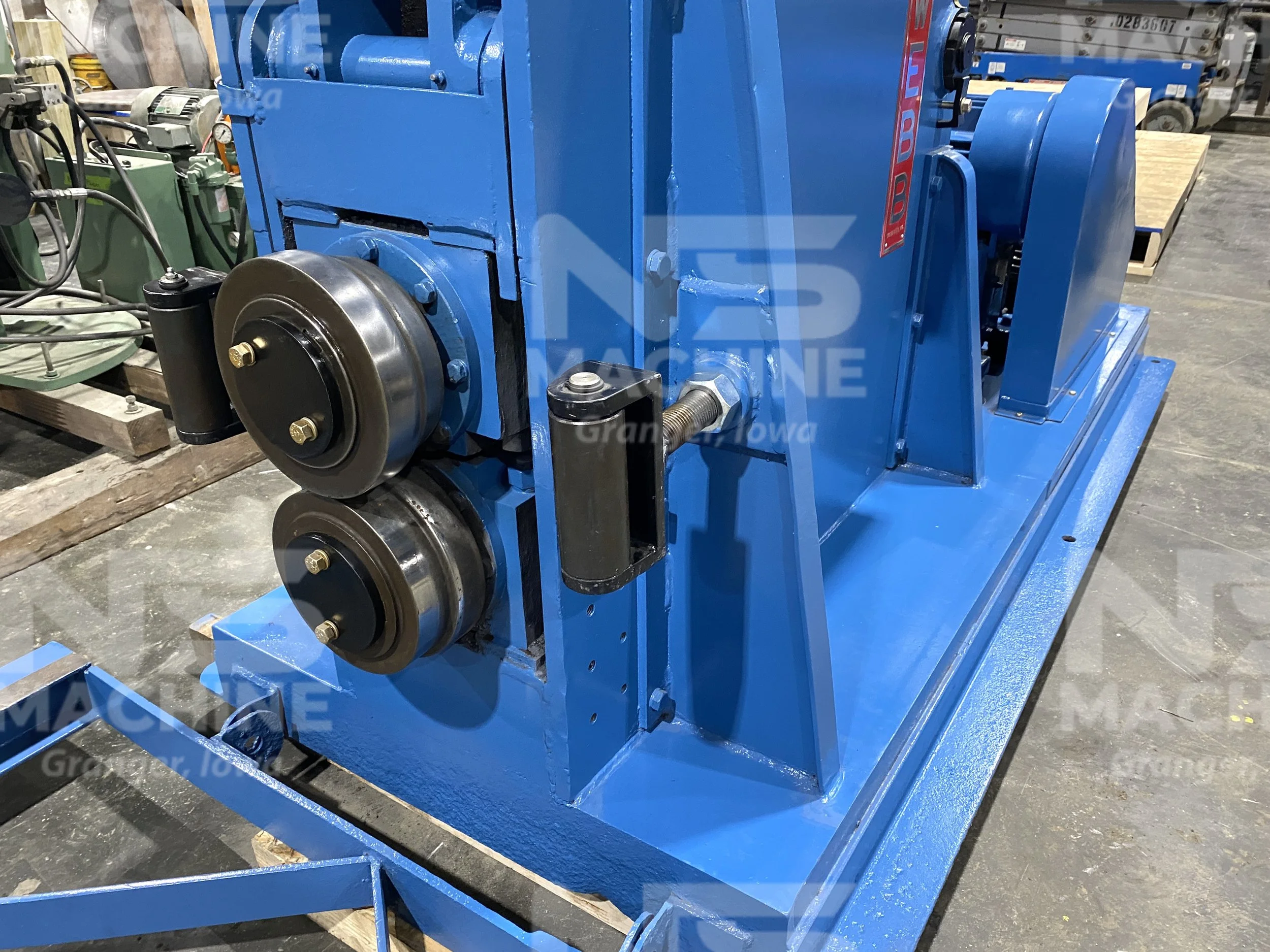

1/2" Webb M5 Offsetter with Turn Table | 14047-7

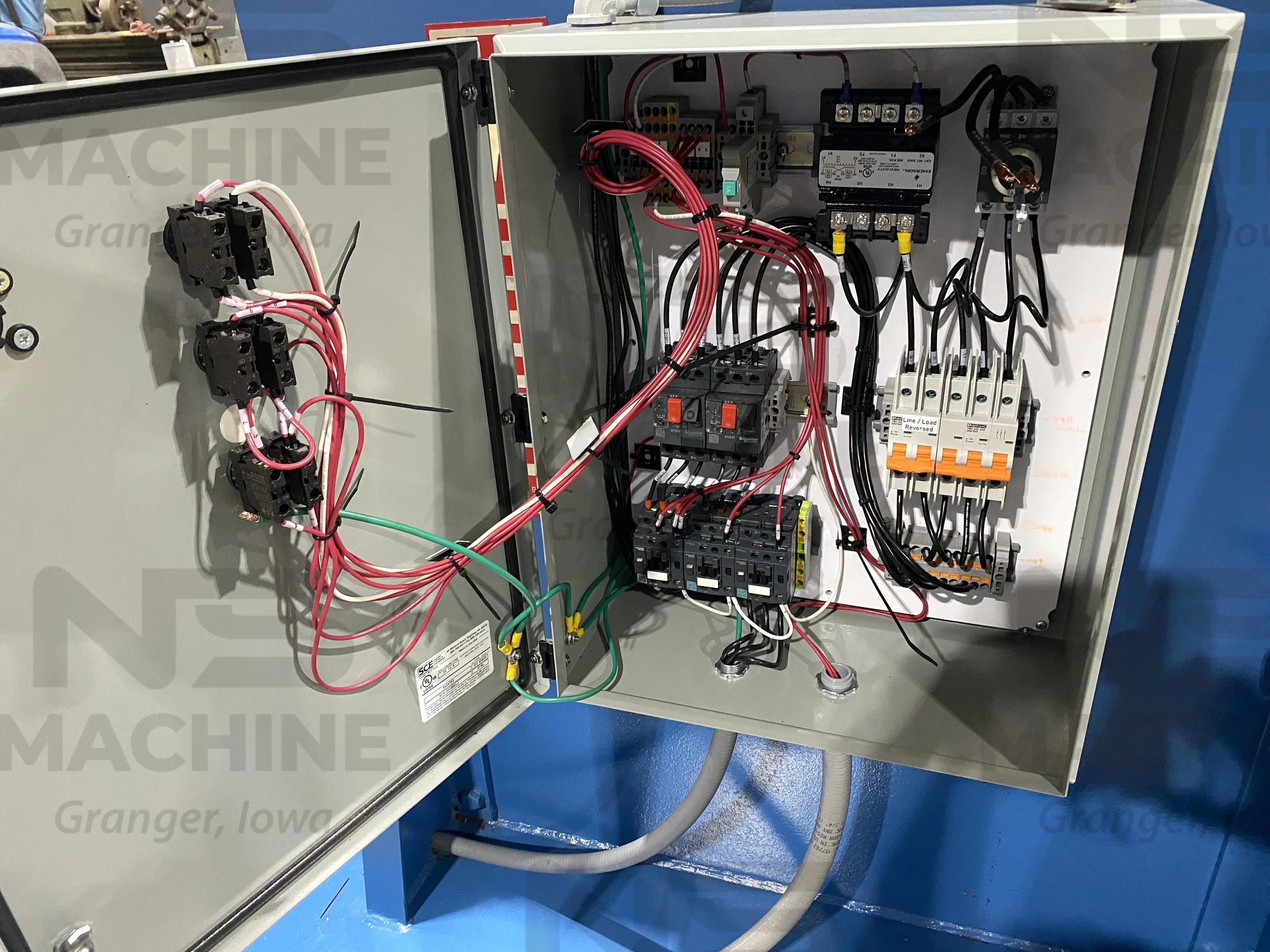

1/2" Webb M5 Offsetter with Turn Table | 14047-9

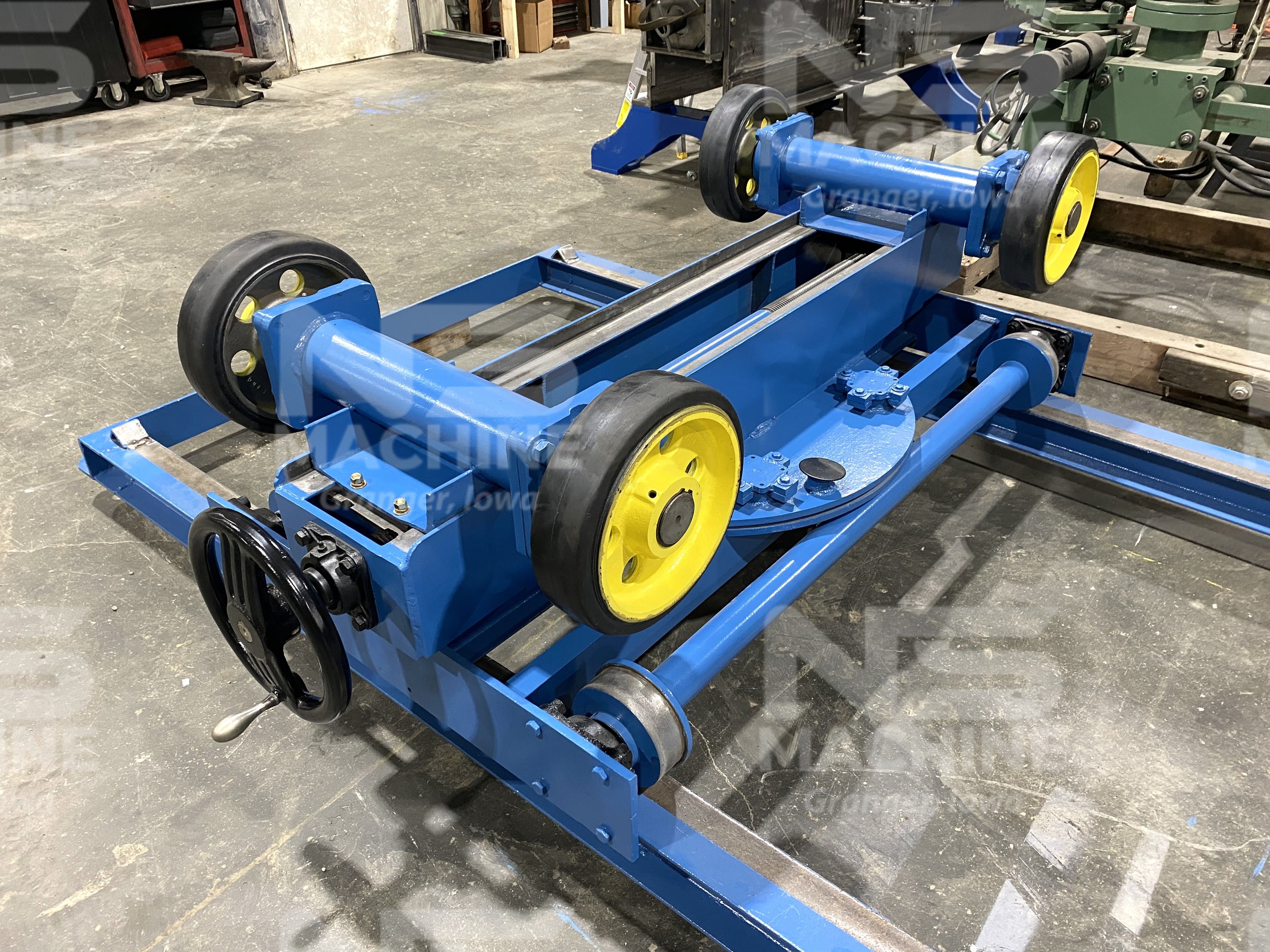

1/2" Webb M5 Offsetter with Turn Table | 14047-8

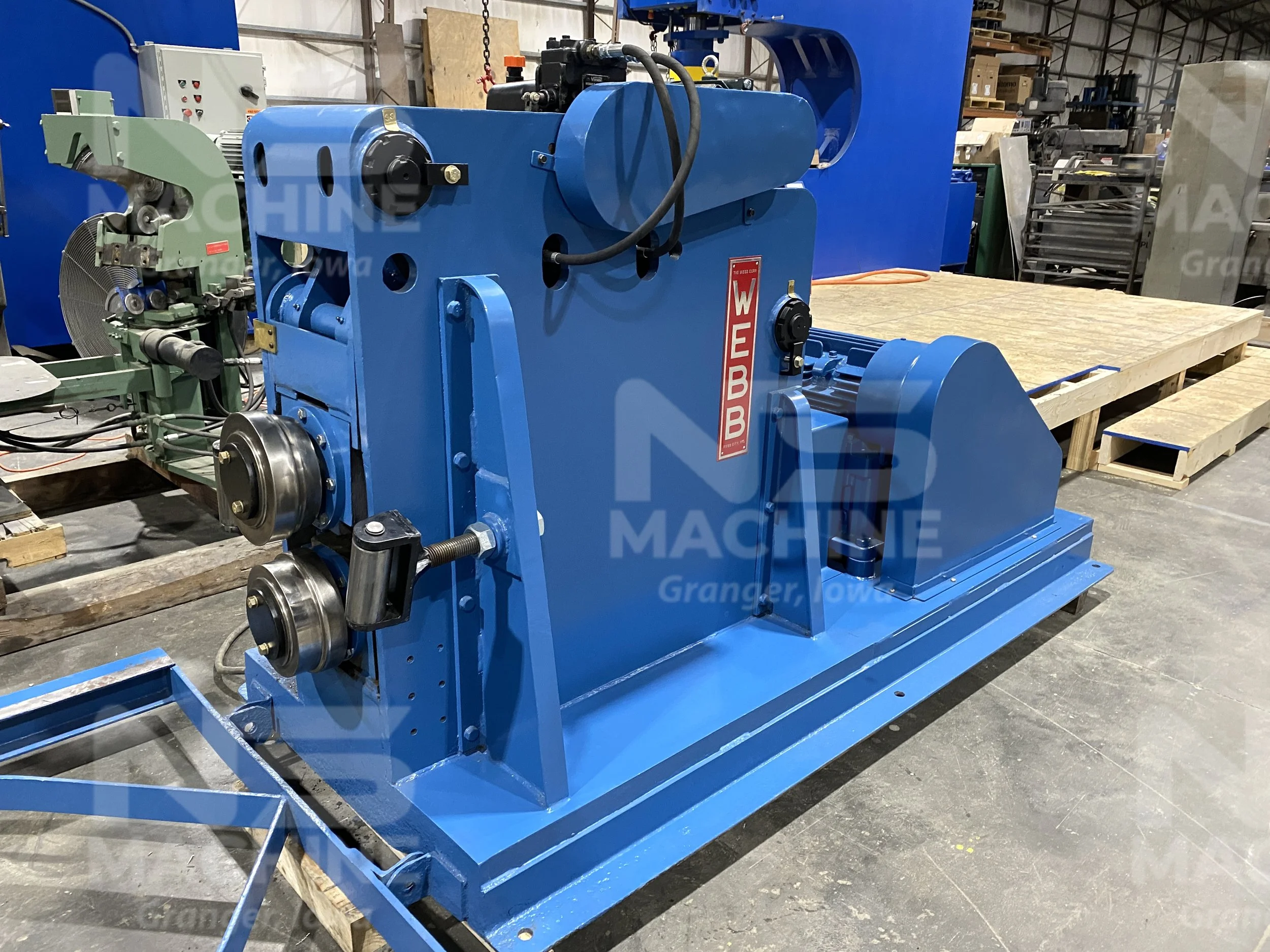

1/2" Webb M5 Offsetter with Turn Table | 14047-10

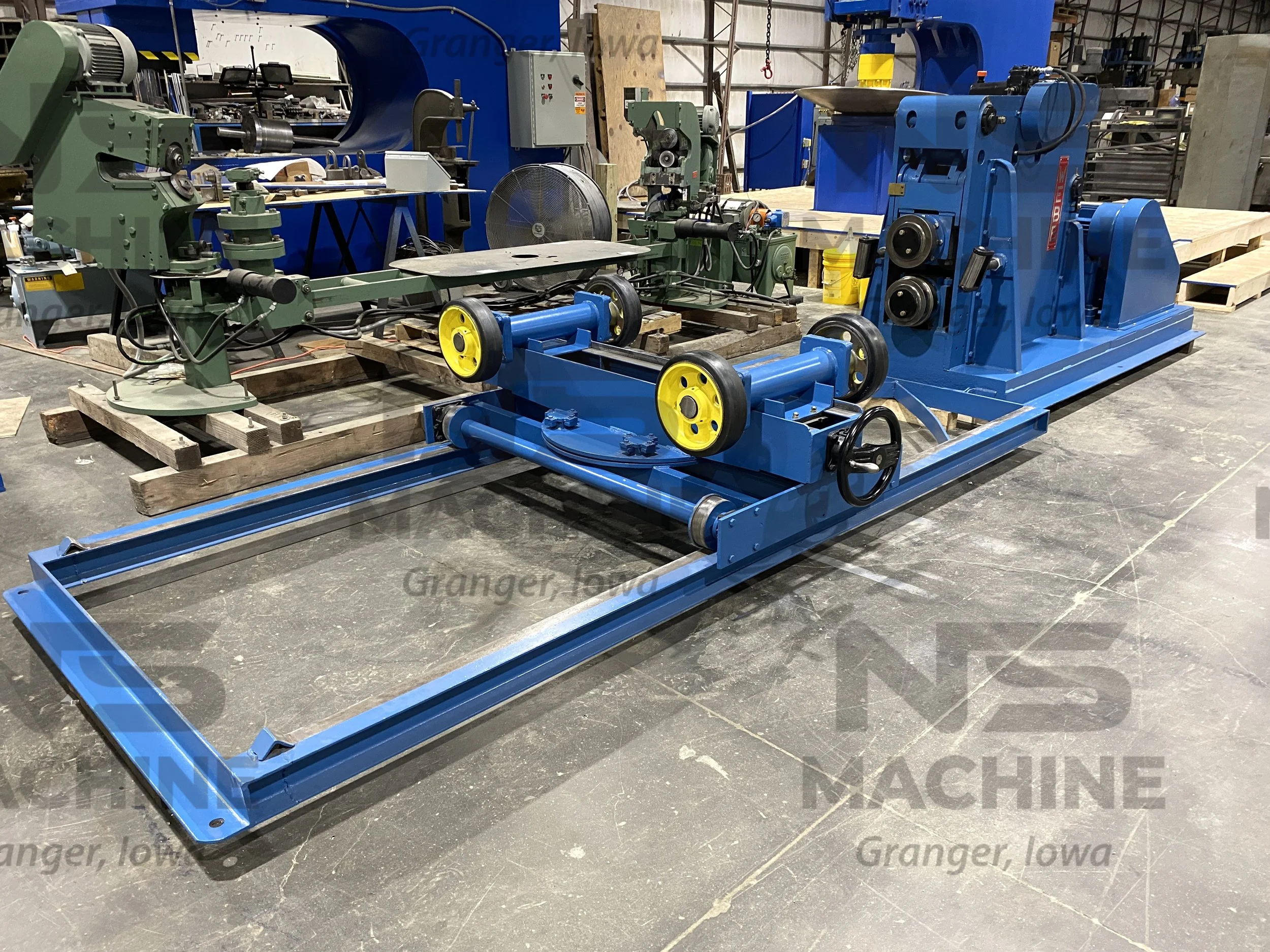

1/2" Webb M5 Offsetter with Turn Table | 14047-11

Video Below

$65,000

View Offsetters

  • Manufacturer: Webb

    Model Number: M-5

    Stock Number: 14047

  • New electrical control panel & controls

    New hydraulic pump motor

    Hydraulic pump serviced (new seal & bearing)

    New guide roll assemblies

    Standard turntable with new wheels

    (1) Set of used tooling

    (1) Set of new tooling - (you choose the size)

  • Maximum material thickness: 1/2”

    Minimum shell diameter: 24”

    Maximum shell diameter: 6’ with standard turntable

    Maximum shell diameter: 12’ with large turntable

    Turntable capacity: 3,000 lbs.

    Motor: 10 HP / 1775 RPM

    Volts: 230/460

    Phase: 3

    Cycles: 60

    Amps: 24.8 / 12.4

    Approximate dimensions: 96” x 45-1/2” x 58” high

    Overall length with turntable: 192”

    Approximate shipping weight: 5,700 lbs.

  • This Webb M-5 Offsetter has a maximum thickness capacity of 1/2” and comes equipped with a new hydraulic pump motor, new controls and control cabinet, a standard turntable with new wheels, (1) set of used tooling and (1) set of new tooling - you choose the size..

    For questions or to schedule an inspection of this Webb M-5 Offsetter, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this Webb M-5 Offsetter, use the “Request Quote” button on this page.
