6.5’ x 5/8” Davi PLate Bending Roll, 4-Roll

6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-1
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-2
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-3
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-4
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-5
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-6
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-7
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-8
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-9

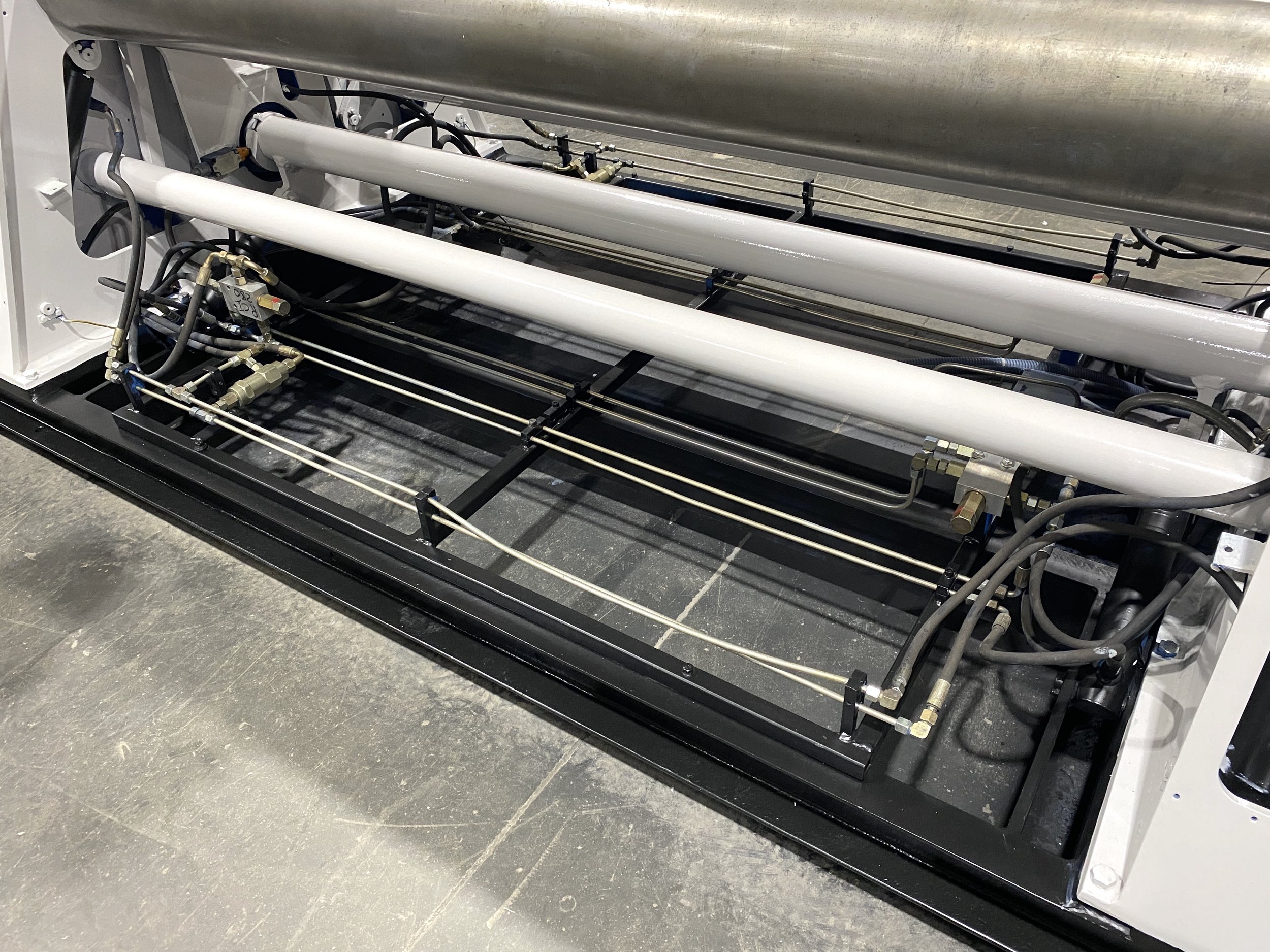

6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-10
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-11
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-12
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-13
6.5' x 5/8" Davi Double Initial Pinch Plate Bending Roll, Model MCB 2024 | 13943-14

SOLD

View Plate Bending Rolls

  • Manufacturer: Davi

    Model Number: MCB 2024

    Serial Number: 9940063

    Model Year: 1999

    Stock Number: 13943

  • Double Initial Pinch

    4-Roll Configuration

    All Hydraulic

    Power Drop End

    Ovehead Support

    Emergency Safety Cable

    Rollling control stand

    Digital readout

    Emergency stop safety cable

  • Bending length - 80.7" (2050 mm)

    Diameter of top roll - 9.4" (240 mm)

    Diameter of side rolls - 9.0" (230 mm)

    Maximum bending capacity - 0.6" (16 mm)

    Maximum pre-bending capacity - 0.5" (13 mm)

    Motor - 15 HP

    Approximate dimensions - 172" x 65" x 78" high

    Approximate weight - 16,755 lbs.

  • This Davi MCB 2024 Plate Bending Roll has a maximum capacity of 6.5' long x 5/8" thick mild steel. It is a double initial pinch hydraulic plate roll with a four roll configuration. It is equipped with a operator control stand, power drop end and emergency stop safety cable.

    For questions or to schedule an inspection of this Davi MCB 2024 Plate Bending Roll, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this Davi MCB 2024 Plate Bending Roll, use the “Request Quote” button on this page.
