Double Pinch

Hydraulic drop end

Rolling pedestal control stand

Capacity in mild steel — 1/4”

Roll length — 80-3/4”

Roll diameter — 7-1/8”

Passline — 28”

Motor HP — 7.5

Volts — 220/440

Phase — 3

Cycles —60

Approximate dimensions — 180” x 40” x 52” high

Approximate weight — 6,500 lbs

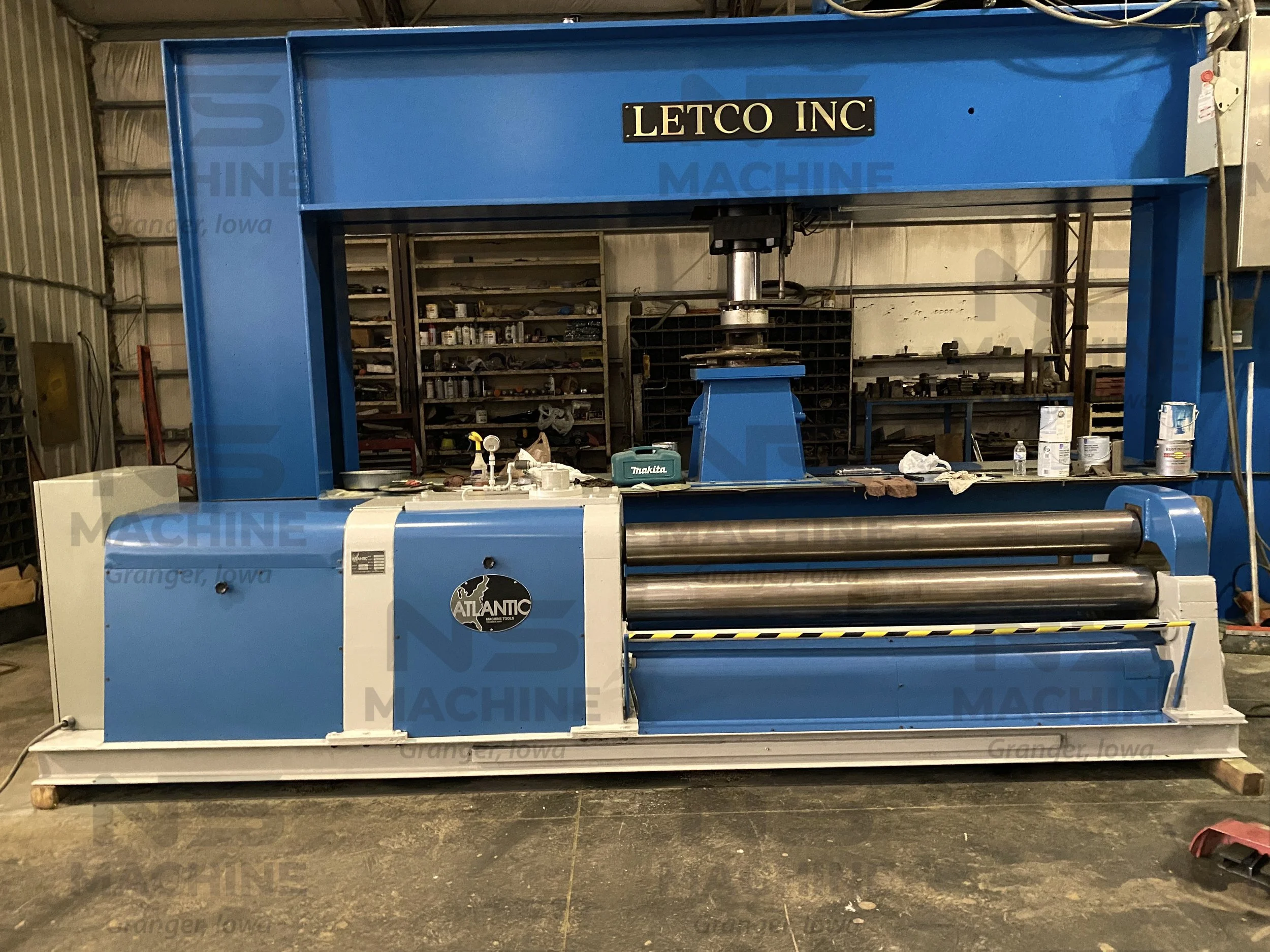

This Atlantic double pinch plate bending roll has a top roll diameter of 7-1/8”, roll length of 80-3/4” and a maximum thickness capacity of ¼” mild steel. The model MDPP 250-6 features a hydraulic drop end and a rolling pedestal control stand.

For questions or to schedule an inspection of this ¼” x 6.5’ Atlantic double pinch plate bending roll, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this ¼” x 6.5’ Atlantic double pinch plate bending roll, use the “Request Quote” button on this page.
