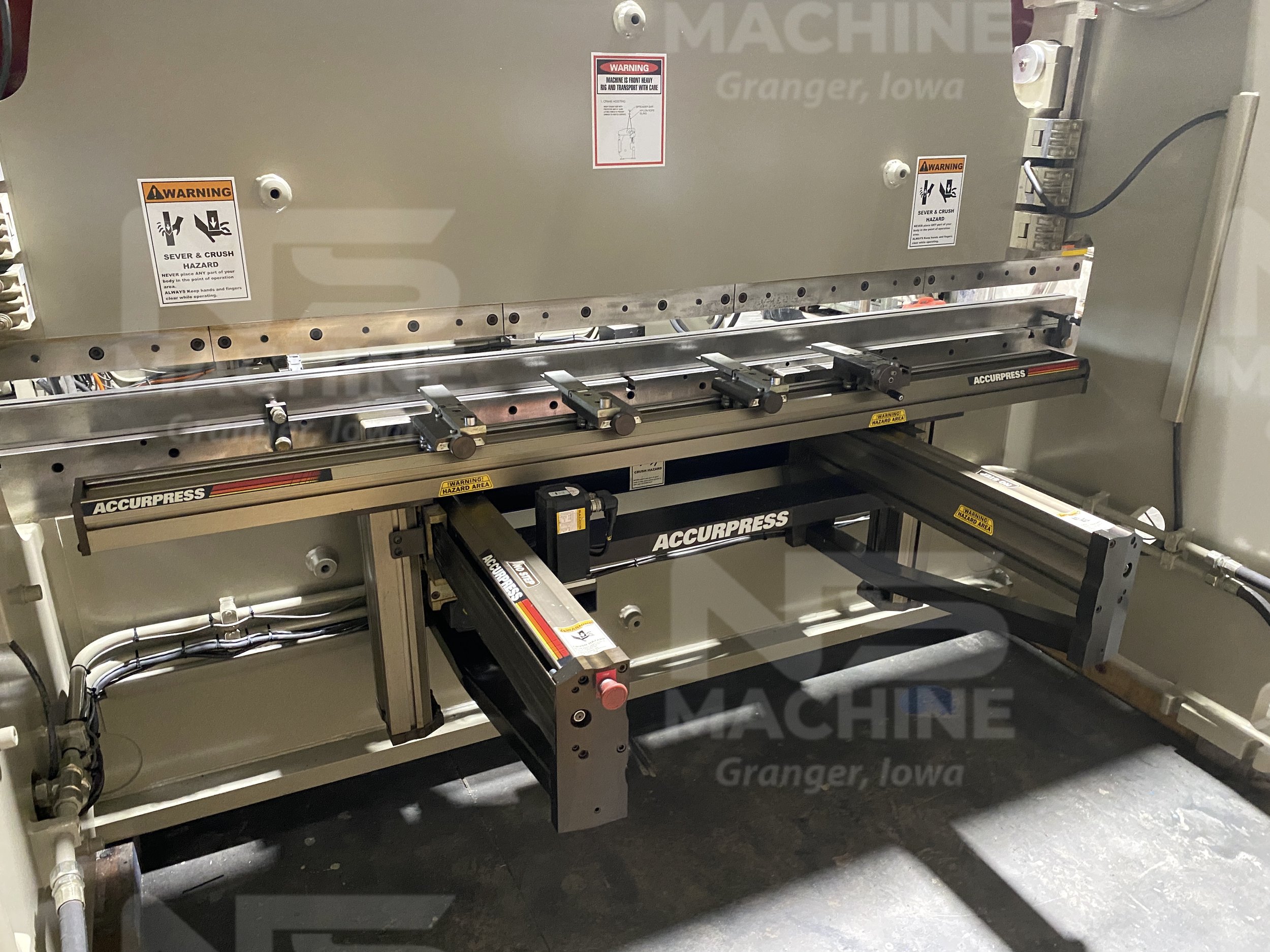

CNC Back Gauge

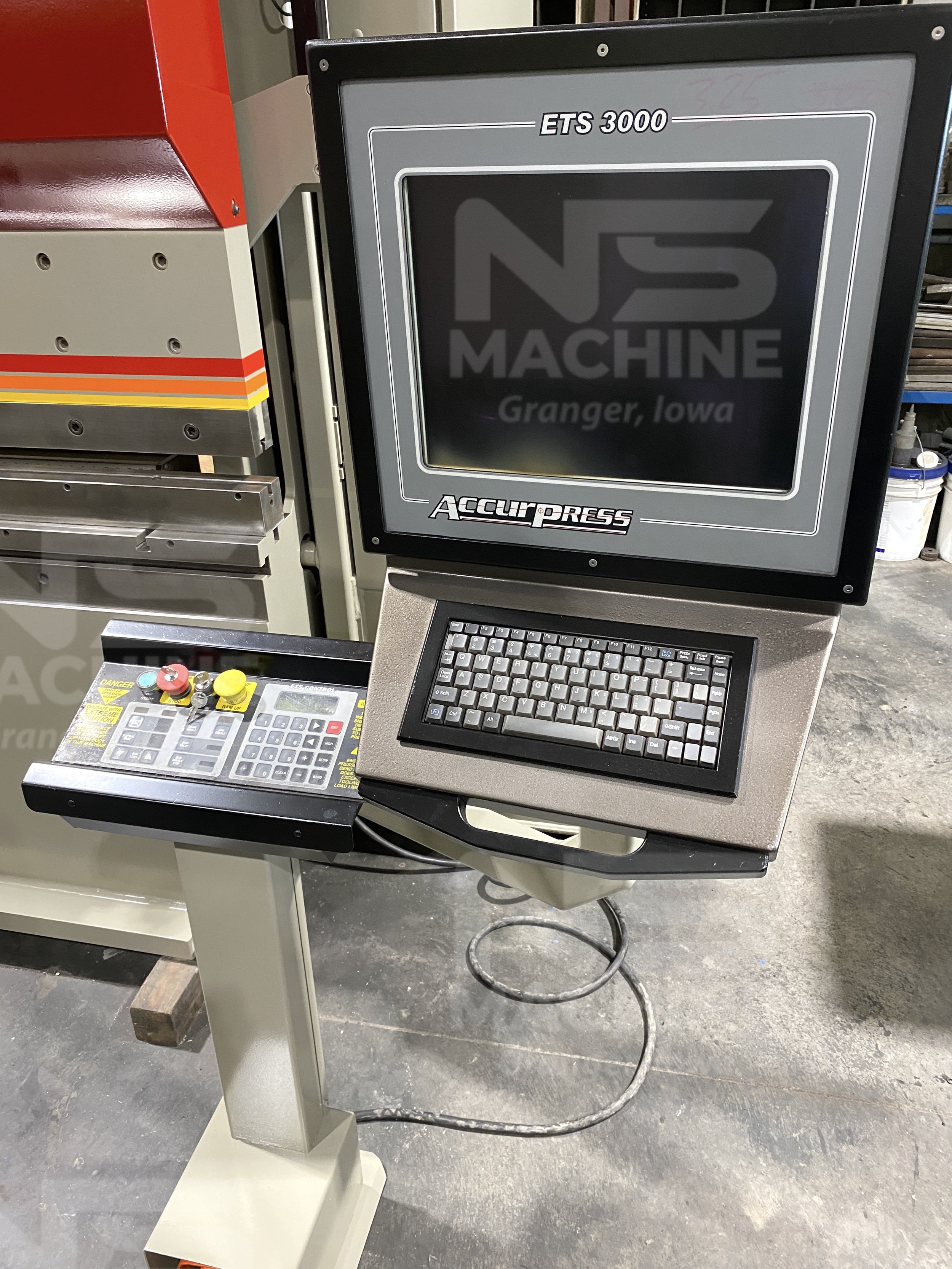

ETS3000 Pendant Control

ETS100 Contol Stand wih Foot Pedal

Full Length Die Holder

Tonnage: 175

Overall length of bed and ram: 120"

Distance between housings: 104"

Capacity: 10' x 1/4"

Open height: 14"

Closed height: 6"

Throat: 10"

Bed height x width: 34" x 8"

Ram stroke: 8"

Approach speed: 80" / minute

Pressing speed: 17" / minute

Return speed: 180" / minute

Main motor: 20 HP / 1760 RPM

Volts: 230/460

Phase: 3

Cycles: 60

Amps: 52/26

Approximate dimensions: 178" x 66" x 94" high

Approximate weight: 24,000 lbs.

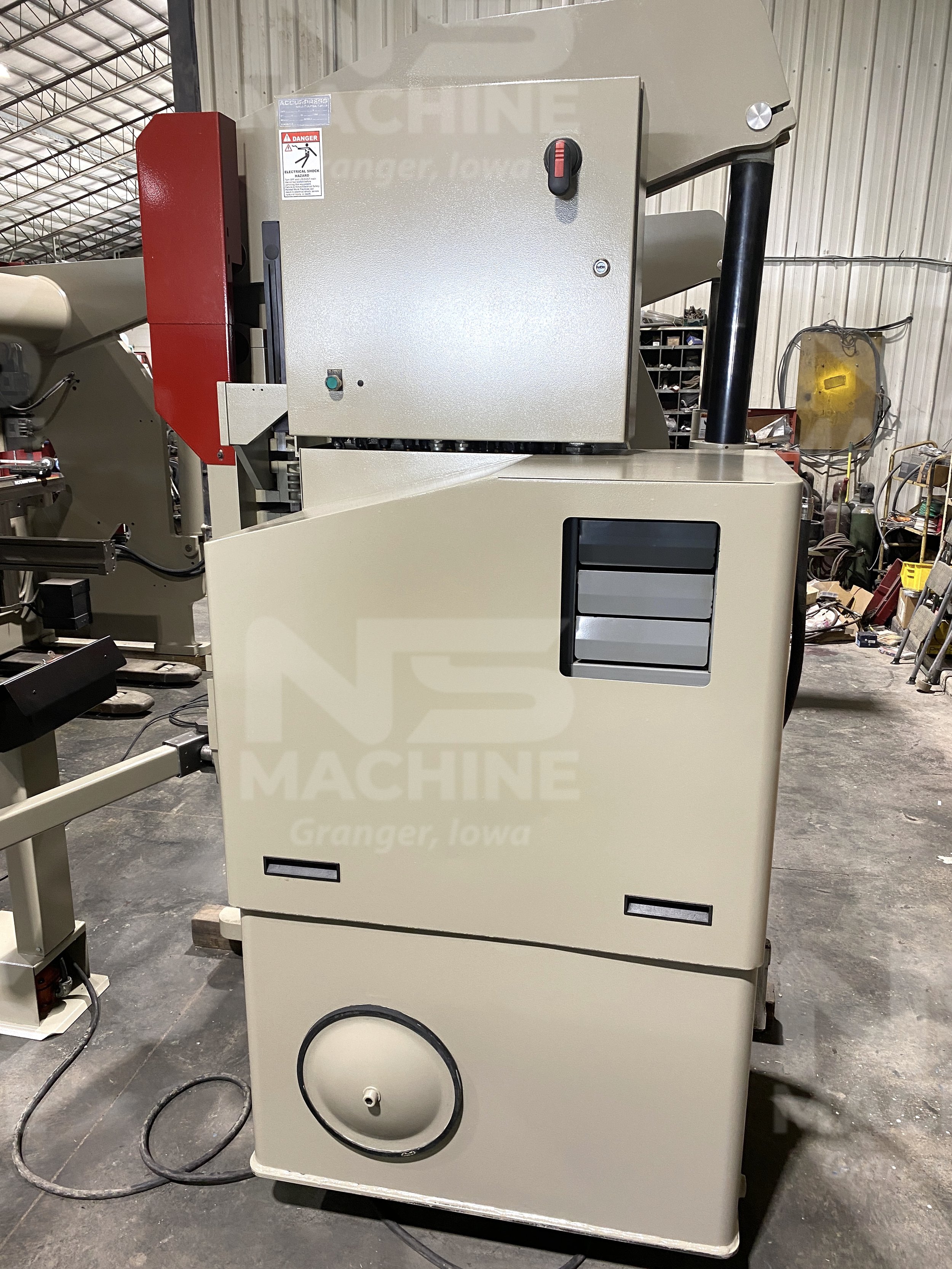

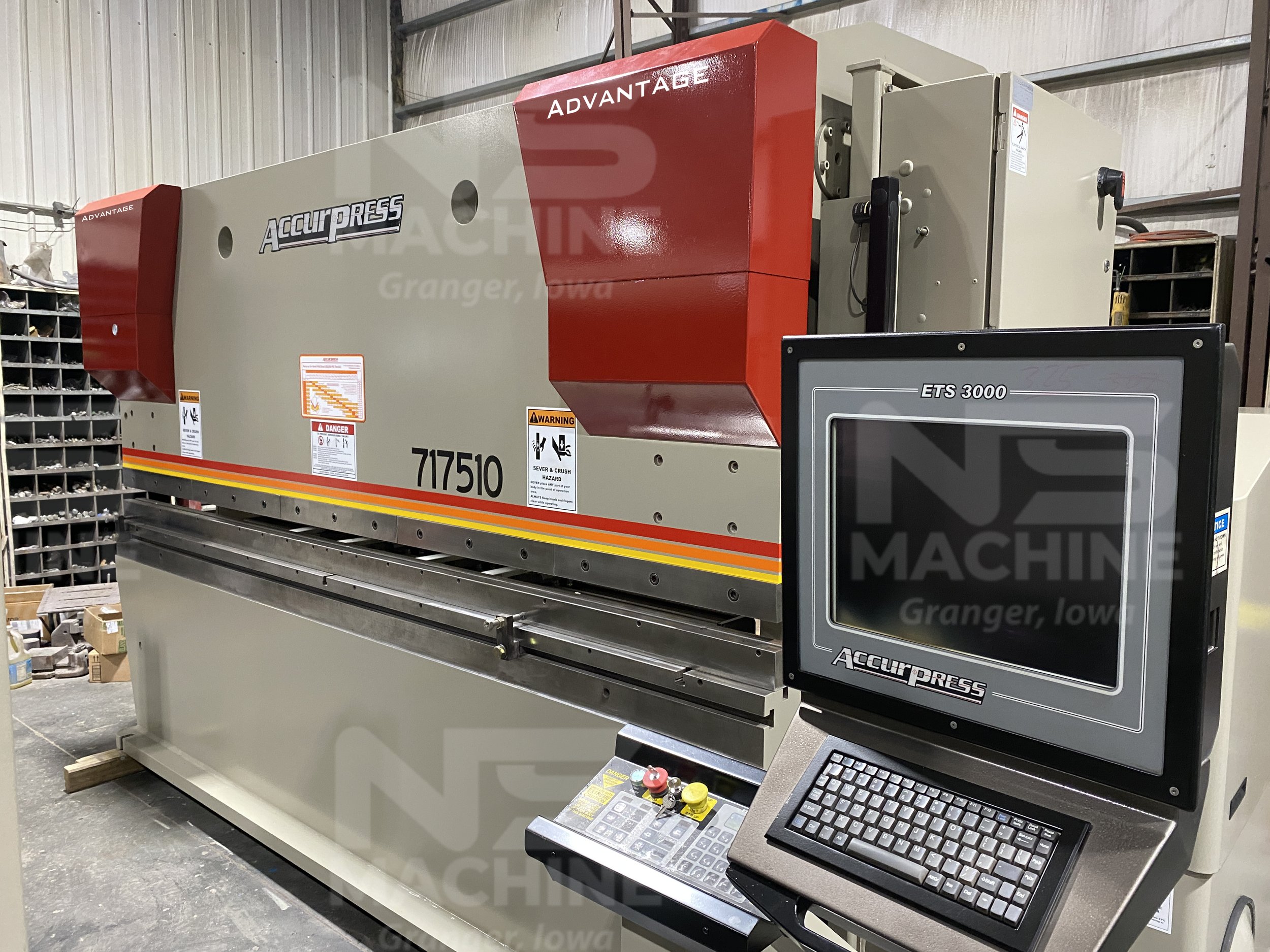

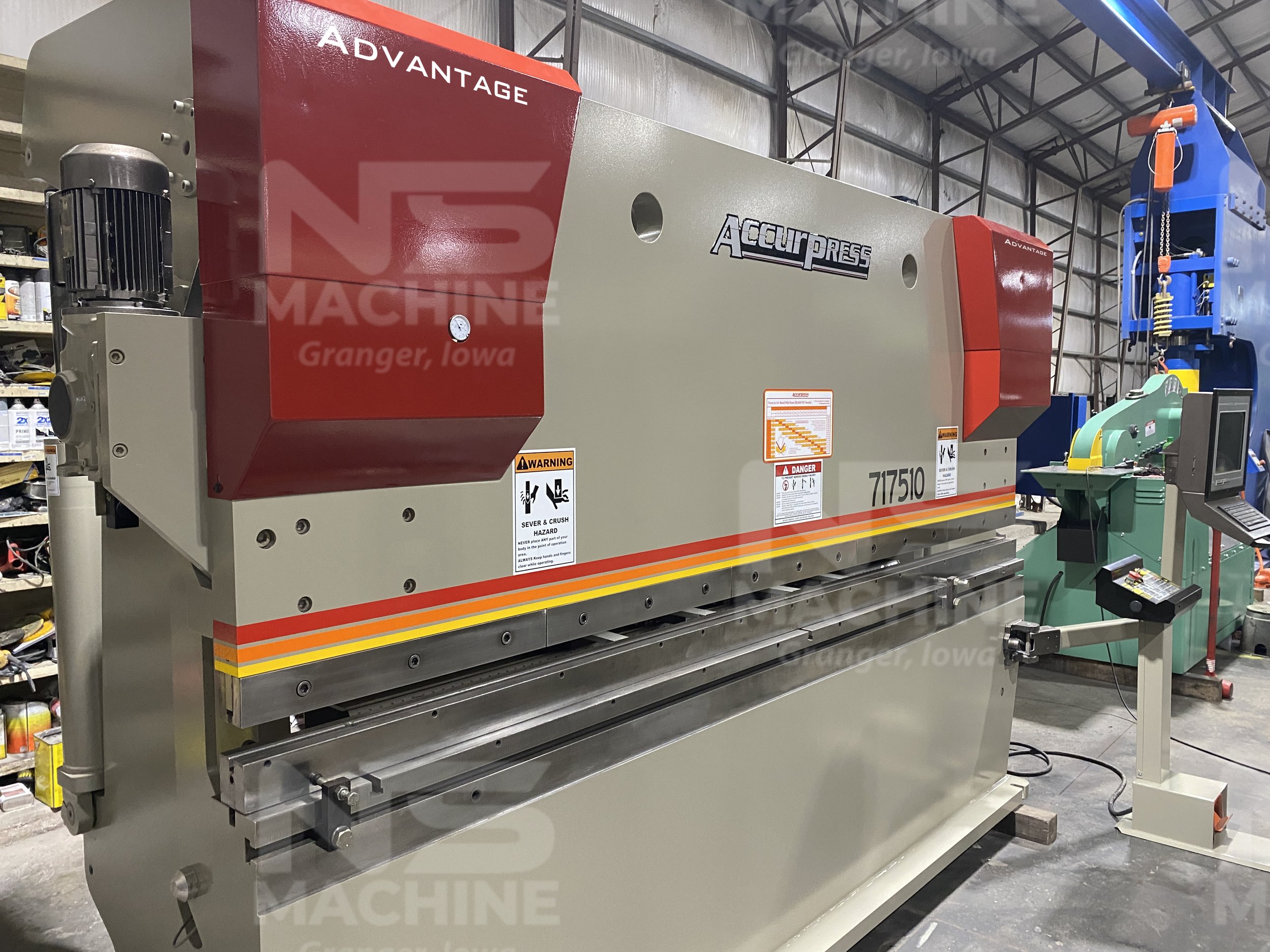

This 175 ton Accurpress Advantage CNC Press Brake comes equipped with a full length die holder, CNC back gauge, ETS3000 CNC pendant arm control and ETS100 control stand with foot pedal. It is a 2002 Model 717510.

For questions or to schedule an inspection of this 175 ton Accurpress Advantage CNC Press Brake, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote, use the “Request Quote” button on this page.
