Manufacturer: US Industrial

Model Number: US HB125-10

Serial Number: W2007-130

Model Year: 2007

Size / Capacity: 125 ton x 10′

Stock Number: 13800

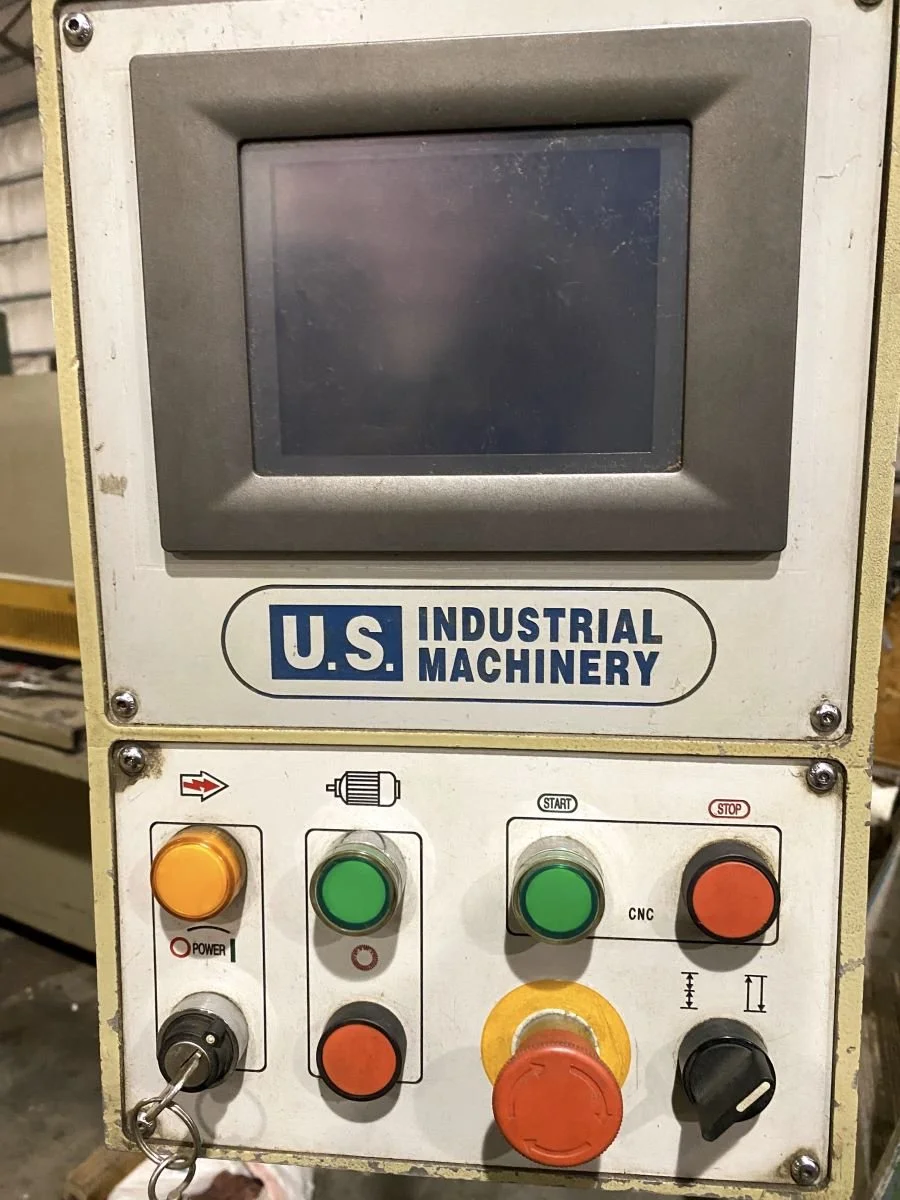

Advantech 2-axis CNC control on pendant swing arm

CNC Backgauge

Sick C4000 light curtains

Pedestal control with dual foot pedals, dual push buttons & emergency stop

Rear safety enclosure

Spare PLC

Capacity - 125 tons

Working table length - 125.9"

Distance between housings - 106.2"

Throat depth - 12-1/2"

Stroke adjustment of ram - 2.36"

Ram travel - 5-1/2"

Open height - 15.9"

Ram approach speed - 2.4"/sec

Ram retreat speed - 2"/sec

Hydraulic oil capacity - 79 Gal.

Motor - 10 HP

Approximate dimensions - 150" x 60" x 105" high

Approximate weight - 18,800 lbs

Shipping height on blocks - 108" high
