7.5 Ton Auto-Sert Hydraulic Insertion Press, Model AS-7.5/20″
sold
-
Manufacturer: Auto-Sert
Model Number: AS-7.5/20″
Serial Number: 0744
Size / Capacity: 7.5 tons
Stock Number: 13394
-

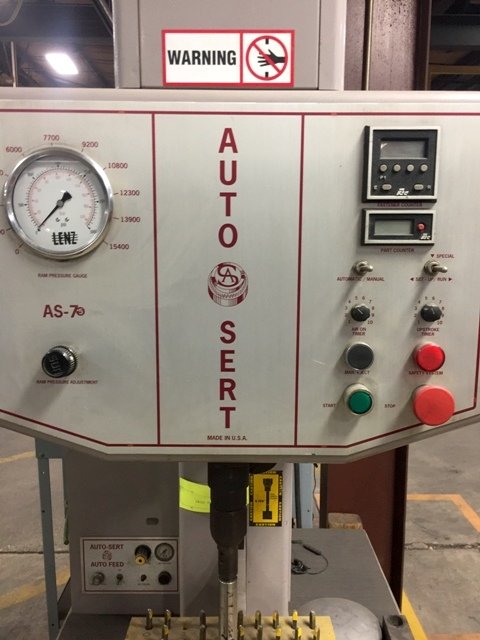

Auto feed with feed control
Foot pedal
Air On timer
Upstroke timer
Fastener counter
Part counter
Ram pressure adjustment & gauge
Built in tool storage cabinet
Automatic & manual operation
Manual eject
Safety system
-
Maximum tonnage capacity
7.5
Minimum capacity
350 lbs (159 kgs)
Throat depth to back
20" (508 mm)
Throat depth to top
20" (508 mm)
Ram stroke
6" (152 mm)
Hydraulic pressure
40 to 3000 PSI
Volts
208-230/460
Phase
3
Hz
50/60
Approximate dimensions
79" x 36" x 45" high
Approximate weight
1,900 lbs.
