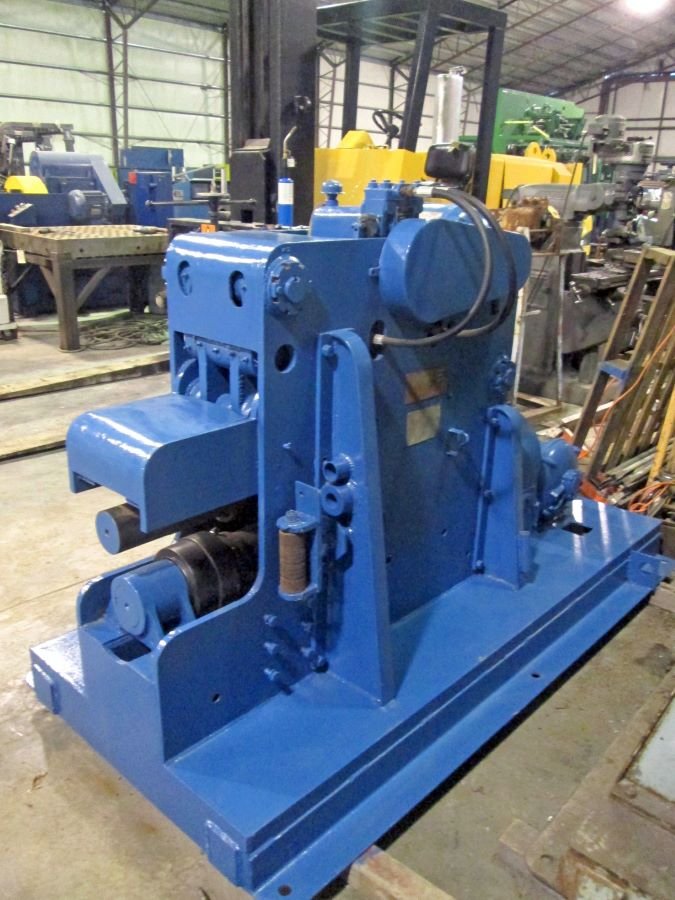

3/8″ Webb – Reed Offset Rolls

sold

  • Manufacturer: Webb – Reed

    Model Number: M4

    Serial Number: 54115

    Model Year: 1954

    Size: 3/8″

    Stock Number: 12959

  • *1 – Thinner material can be offset with special dies at extra cost. Material range for special dies should be as shown.

    *2 – Turntable to handle 12′ max. diameters at extra cost

  • Max. material thickness (70000 PSI steel)

    3/8"

    Minimum thickness with std. dies (*1)

    1/8"

    Min. to max. material opening (*1)

    1/4"

    Std. number of material settings

    5

    Rolling speed

    24 FPM

    Min. shell diameter

    18"

    Max. shell diameter, using turntable (*2)

    6' (turntable not included)

    Turntable capacity

    3000 lbs.

    Roll motor

    7-1/2 HP

    Adjusting motor

    1-1/2 HP
