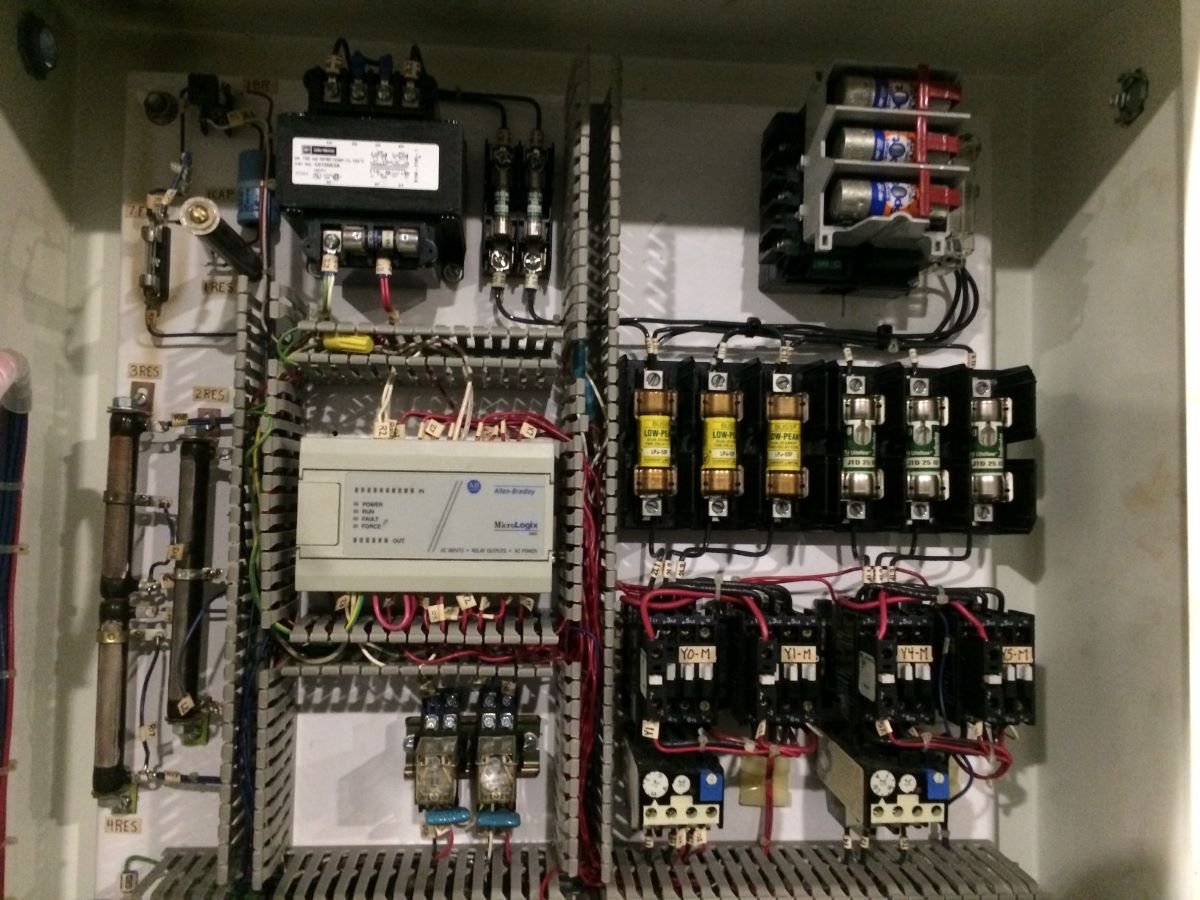

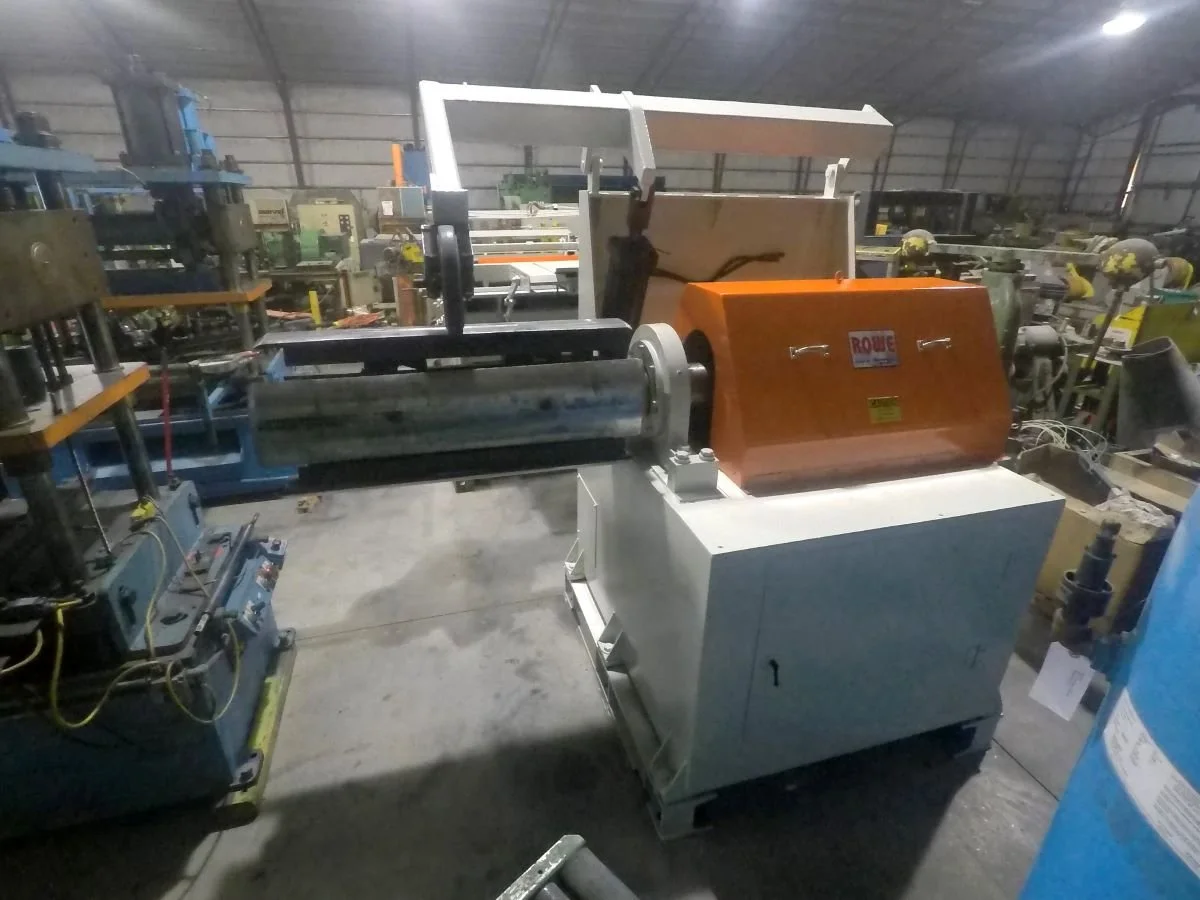

Updated controls: Allen Bradley MicroLogix 1000 PLC

Pneumatic coil clamping

Powered drive & expansion

Morse gear reducers on drive & expansion motors

Maximum coil weight

16,000 lbs.

Maximum coil OD

60"

Stock width

40"

Speed

20 FPM / 3.5 RPM

Line direction

Left to Right

Air Supply

120 PSI

Power Supply

480V, 3PH, 60 Hz

Main drive motor

1 HP, 1725 RPM, 208-230/360V, 3HP, 60HZ, 3.7-3.4/1.7A

Gear reducer on main drive

Ratio – 25

Expansion motor

1.5 HP, 1745 RPM, 230/460V, 3PH, 60HZ, 4.6/2.3A

Gear reducer on expansion motor

Ratio – 10; HP – 1.92; RPM – 1750

Approximate dimensions

117" x 71" x 100" high

Approximate weight

8,000 lbs.
