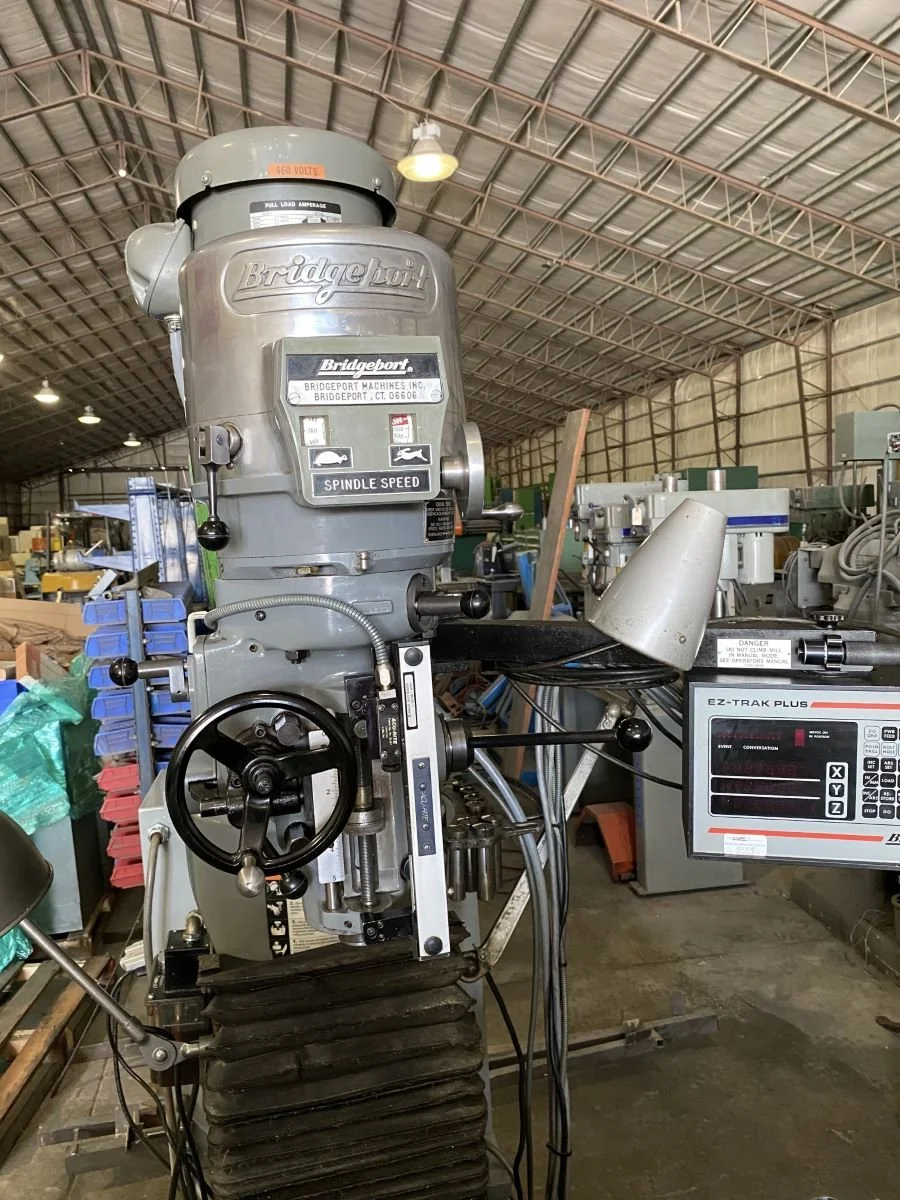

Bridgeport EZ Trak Plus 3-axis CNC control

Bijur automatic lubrication system

Accordian way covers

R-8 collets

(2) work lights

Table size

9" x 48"

Longitudinal travel

29-3/4"

Cross travel

13"

Vertical knee travel

14"

Spindle quill travel

5"

Spindle speeds

60 to 4200 RPM (infinitely variable)

Spindle quill feeds

0.0015" – 0.003" – 0.006"

Spindle taper

R-8

Ram travel

12"

Positioning speed (X-Y axis)

100 inch / minute

Feed rate range (X-Y axis)

0.1 to 100 inch / minute

Throat distance

6-3/4" to 18-3/4"

Distance table to spindle nose

2-1/2" to 18-1/4"

Motor

2 HP / 1735 RPM

Volts

230 / 460

Phase

3

Cycles

60

Full load amps

6.2 / 3.1

Approximate dimensions

70" x 77" x 87" high

Approximate weight

3,000 lbs.
