Manufacturer: Haas

Model Number: TM-1P

Serial Number: 1074936

Model Year: 2009

Size / Capacity: 30″ x 12″ x 16″

Stock Number: 13422

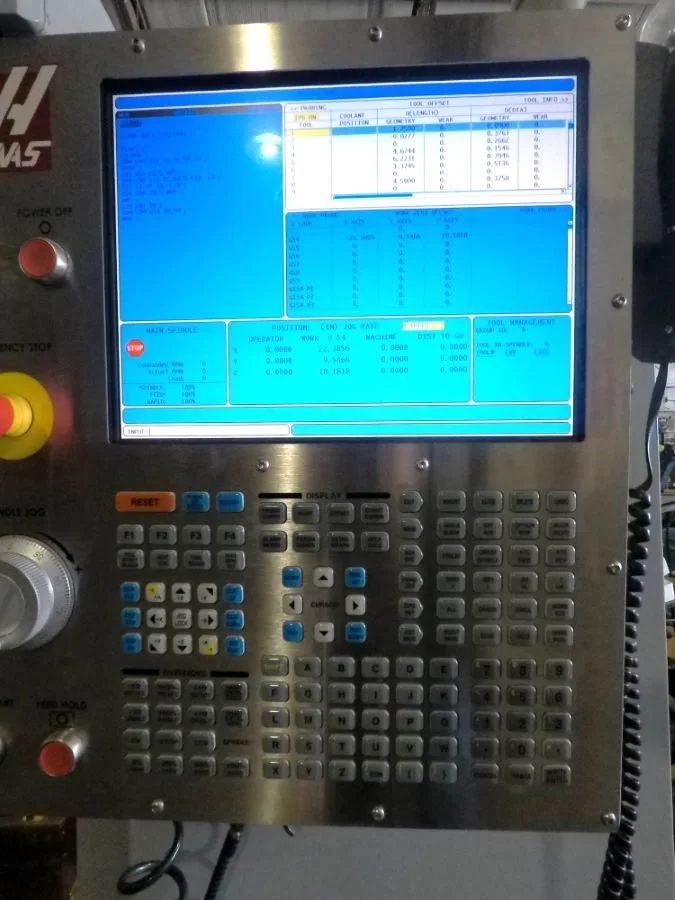

Haas CNC control

Remote jog handle

Wired for 4th Axis

6,000 RPM spindle

10 pocket tool carousel

CAT40 tooling

Wireless intuitive probing system

Rigid tapping

Spindle orientation

Macro variables

Rotational inscaling

High flow coolant system

Full enclosure

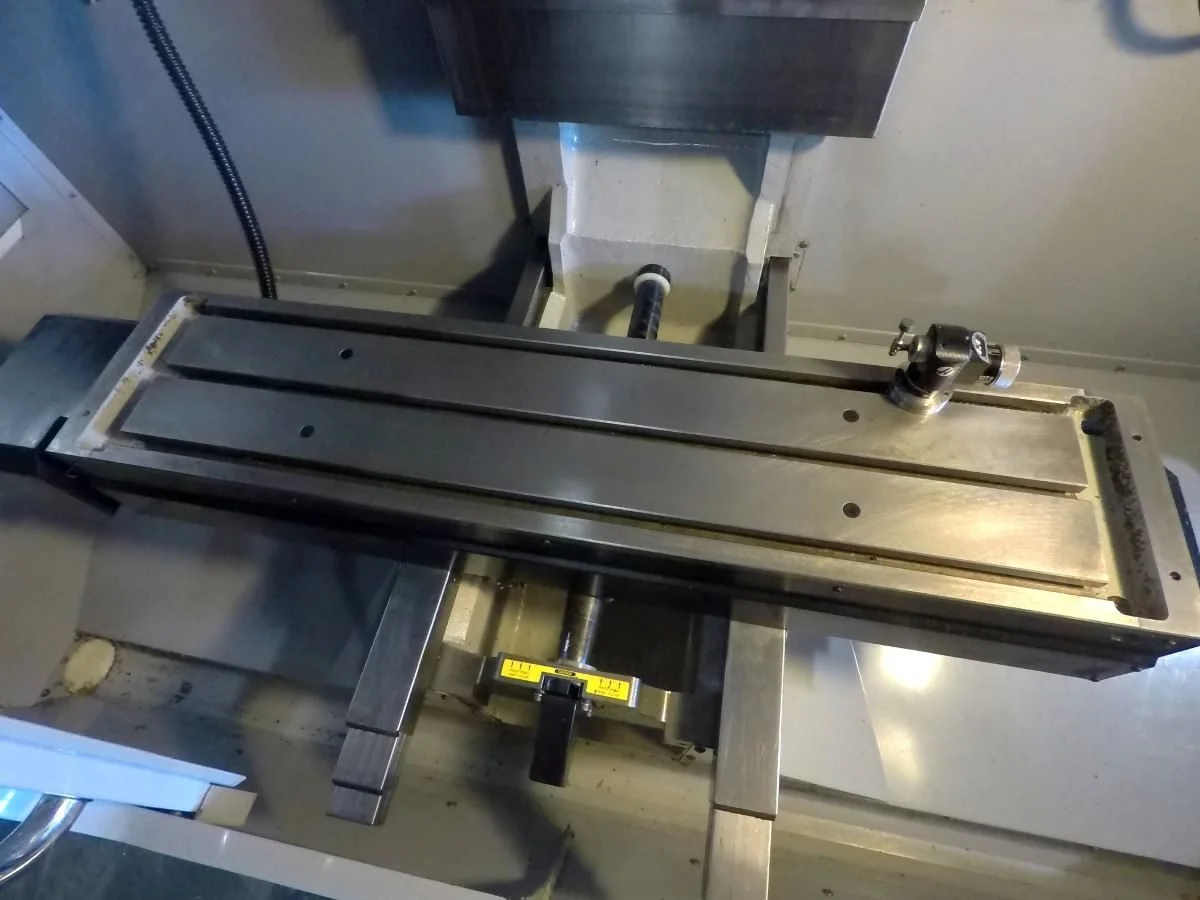

Table length

47.8" (1213 mm)

Table width

10.5" (267 mm)

Maximum table weight capacity

1,000 lbs. (evenly distributed)

T-slot (number x width)

3 x 0.630" (16 mm)

T-slot center distance

4.00" (102 mm)

X-axis travel

30.0" (762 mm)

Y-axis travel

12.0" (305 mm)

Z-axis travel

16.0" (406 mm)

Spindle nose to table (max)

20.0" (508 mm)

Spindle nose to table (min)

4.0" (102 mm)

Spindle speed

6000 RPM

Spindle motor

7.5 HP

Maximum torque at 1200 rpm

33 ft/lbf (45 Nm)

Maximum cutting feedrate

400 IPM (10.2 m/min)

Rapids on X, Y, Z

400 IPM (10.2 m/min)

Maximum thrust X, Y, Z

2000 lbf (8896 N)

Tool changer type

Carousel

Tool changer capacity

10

Maximum tool diameter

3.5" (89 mm)

Maximum tool weight

12 lb (5.4 kg)

Tool to tool average

5.7 s

Chip to chip average

6.5 s

Air required

4 scfm @ 100 psi (113 L/min @ 6.9 bar)

Inline Air Hose

3/8"

Coupler (Air)

3/8"

Air Pressure Min

80 PSI (5.5 bar)

Approximate weight

3,850 lbs.
