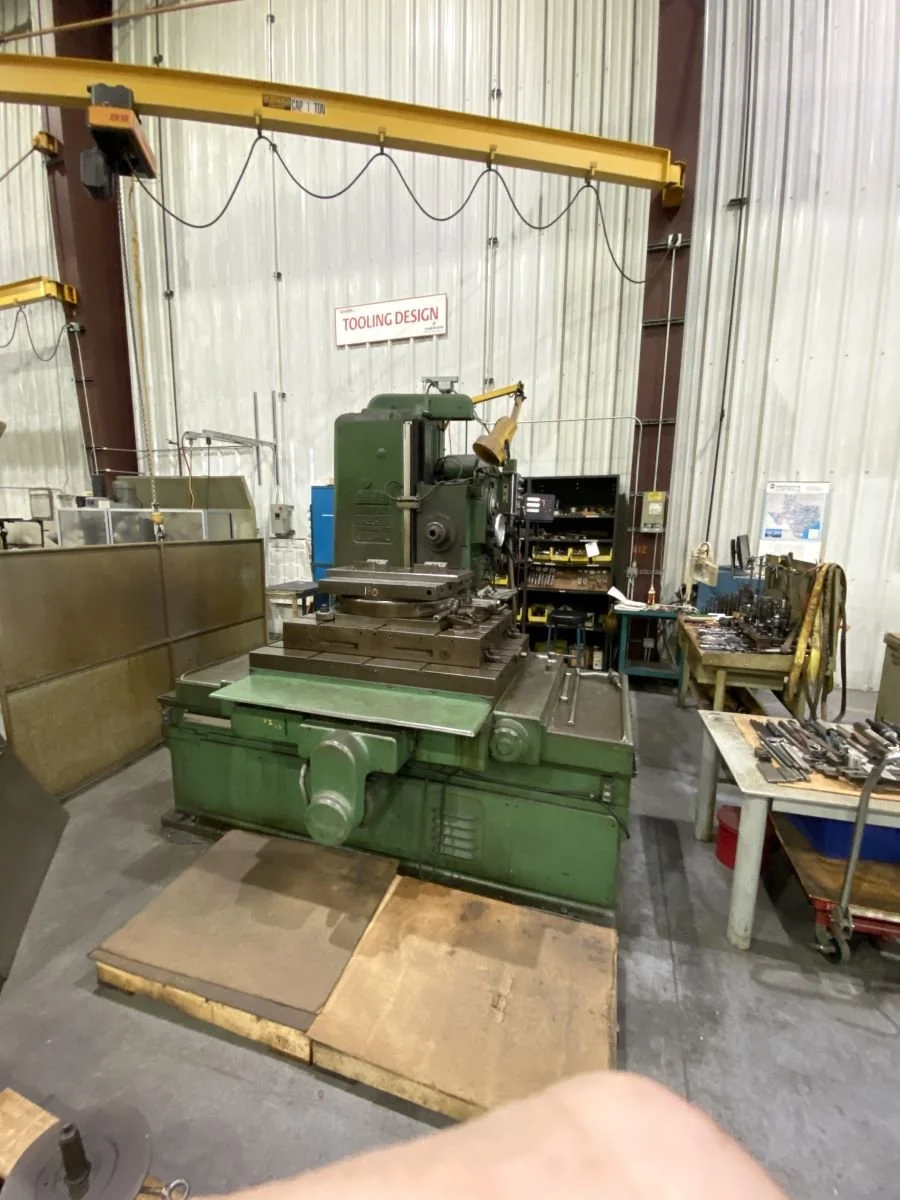

Manufacturer: DeVlieg

Model Number: 3H-48

Size / Capacity: 3″

Stock Number: 13659

Heidenhain 3-axis digital read out

Rapid traverse in all directions

Diameter of spindle

3''

Spindle taper

N.M.T.B. No. 40

Table size

48" x 35"

Horizontal table travel

48"

Table refraction

16"

Vertical spindle travel

36"

Horizontal spindle travel

16''

Spindle speeds (#)

25 to 1200 RPM

Spindle feeds (#)

0.002 to 0.024 IPR

Spindle bar rapid traverse

95 IPM

Table feeds

0.5 to 36 IPM

Milling rapid traverse

50 IPM (X), 150 IPM (X)

Height from floor to table top

41-3/8"

Motor

7-1/2 HP

Volts

400/440

Phase

3

Cycles

50

Amps

10.3

Full load current

60 amps

Approximate dimensions

132" x 100" x 112" high

Approximate weight

30,000 lbs.
