Digital readout

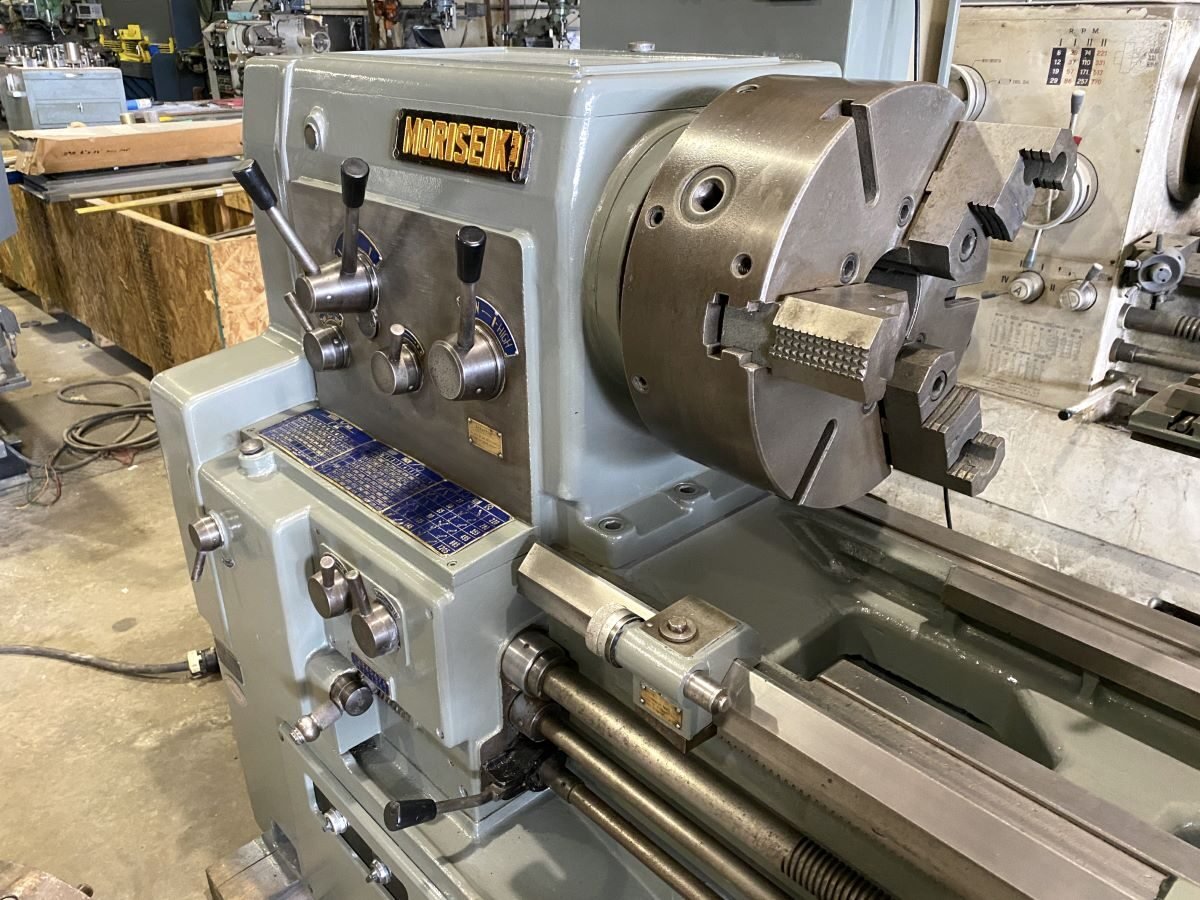

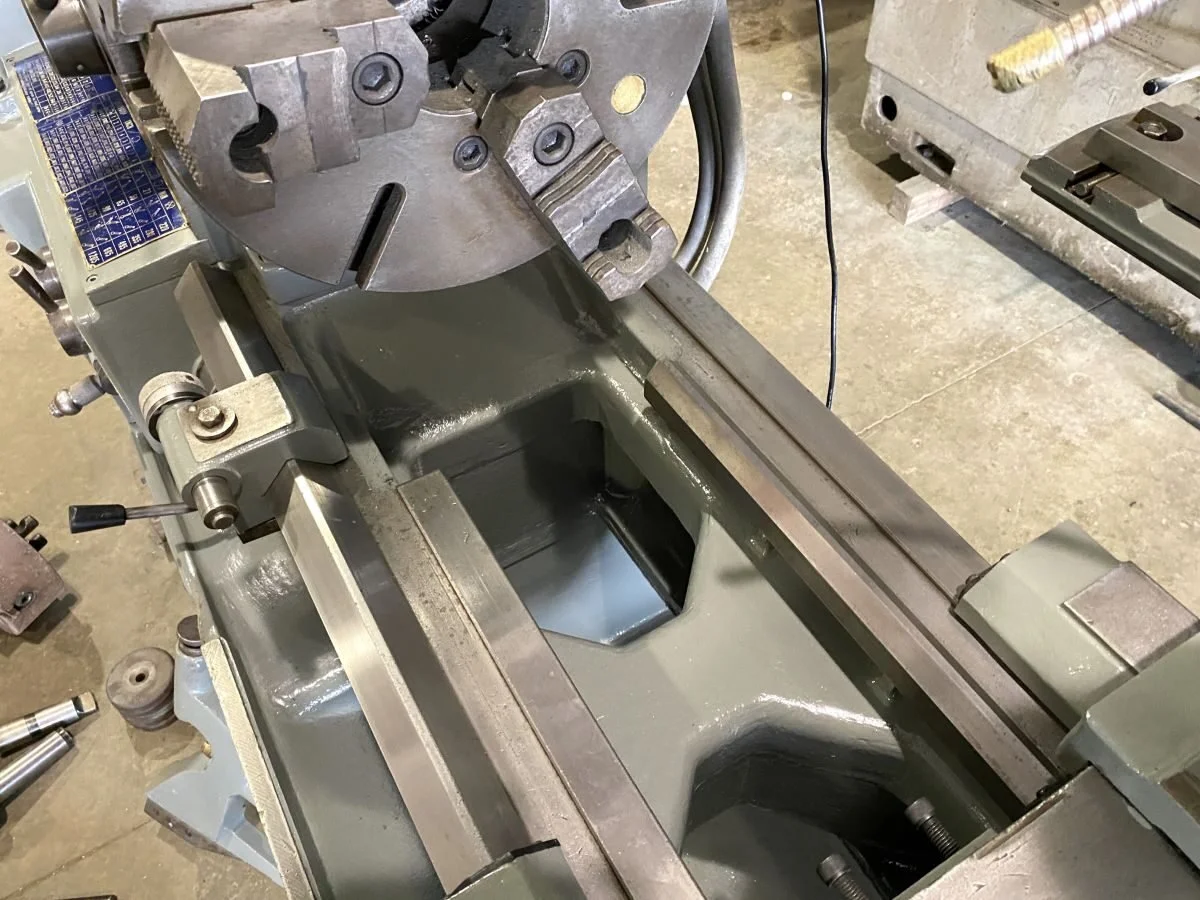

15″ 3-jaw chuck with 4″ hole

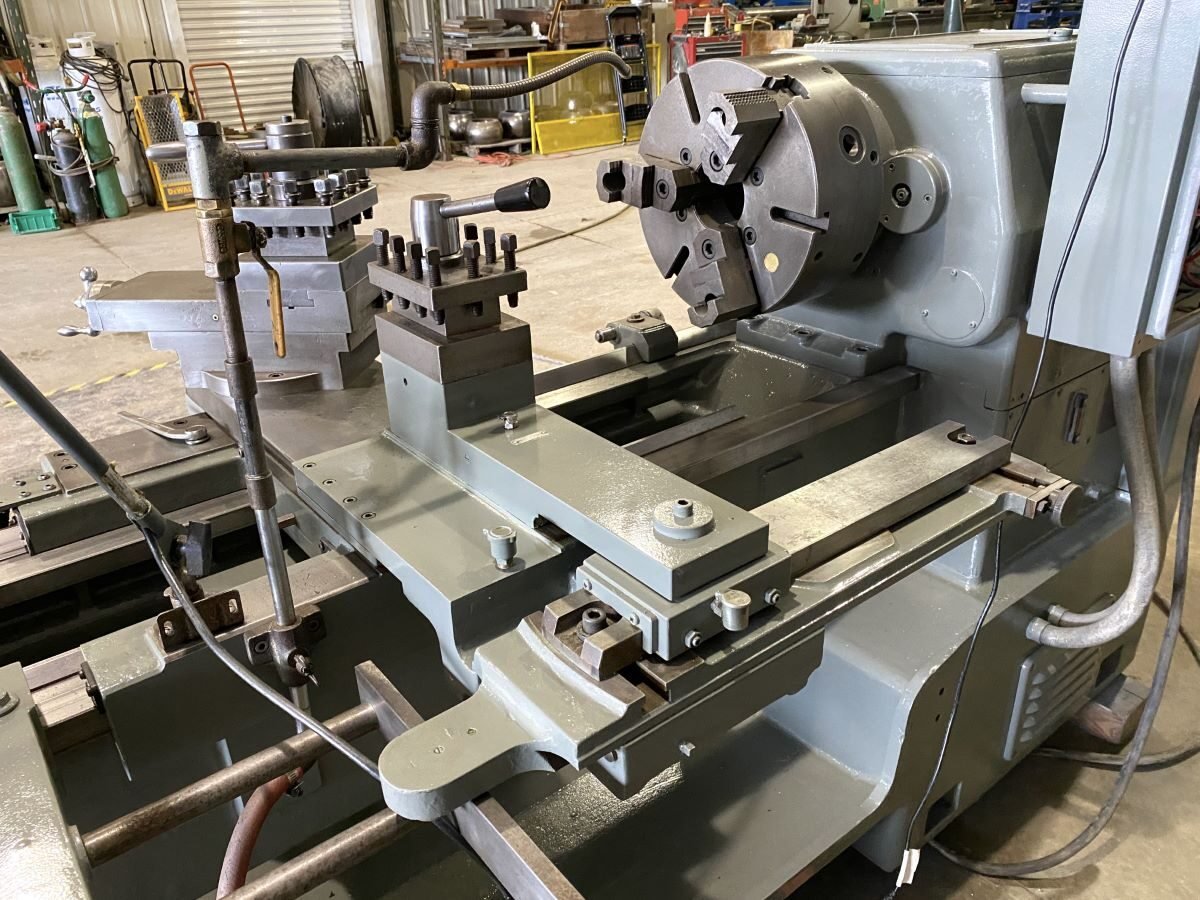

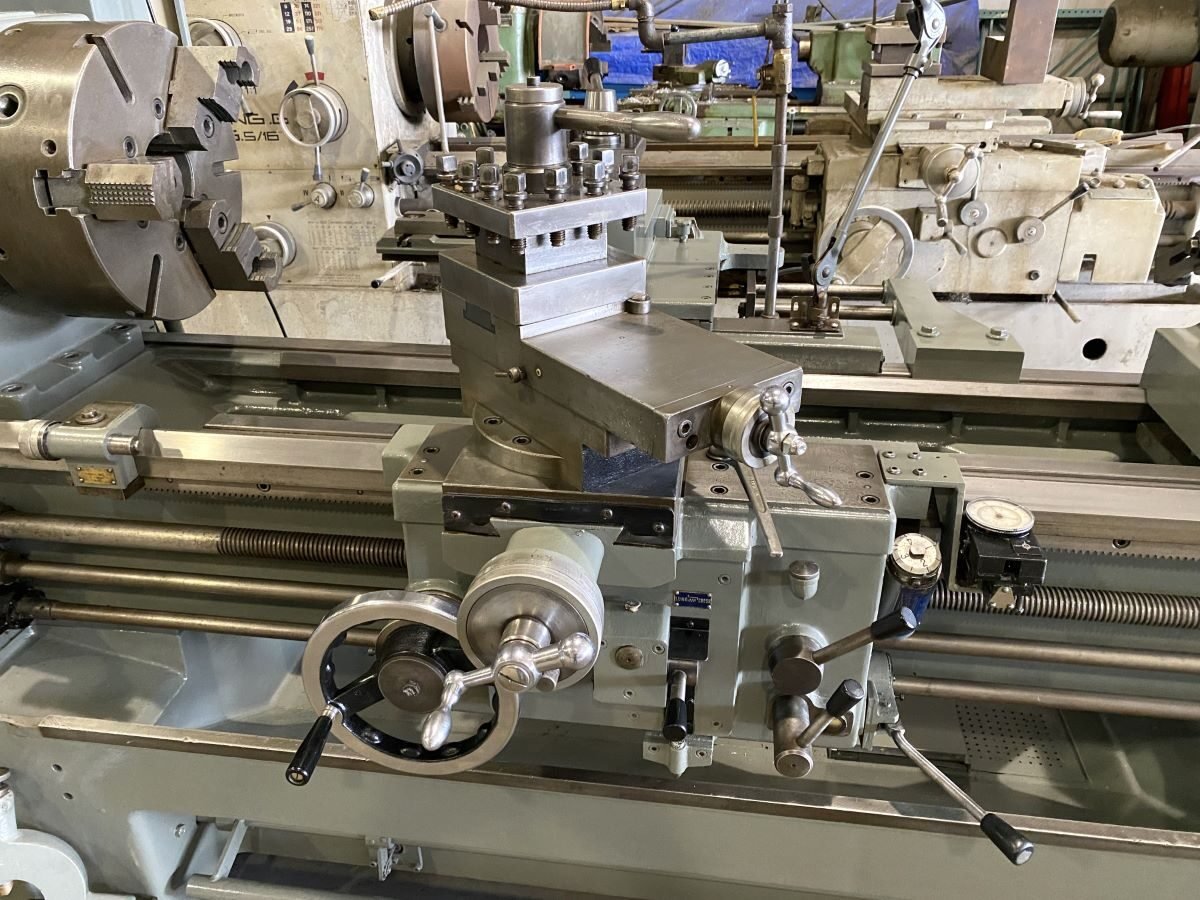

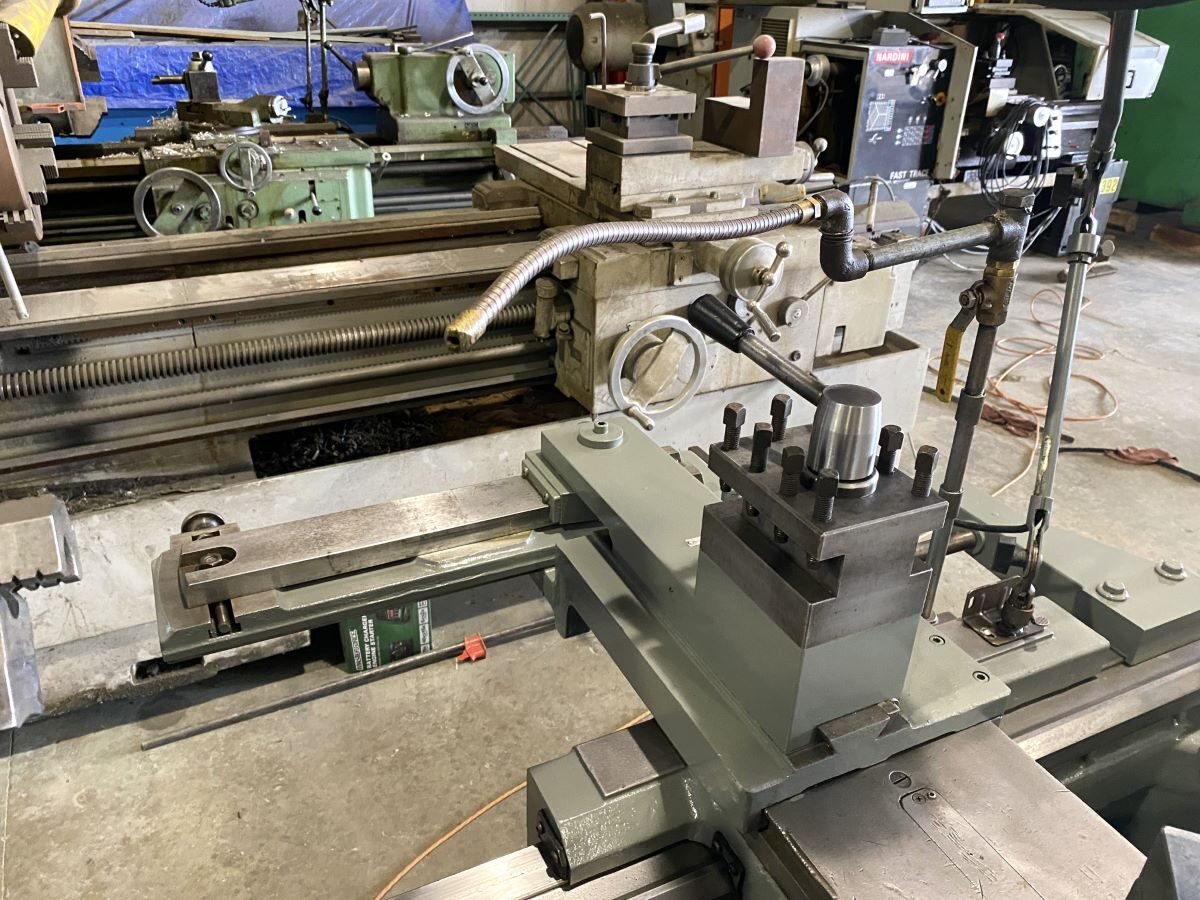

4-way toolpost

Work light

Coolant

Foot brake

Swing over bedways

24"

Swing over cross slide

16"

Distance between centers

60"

Hole through spindle

3"

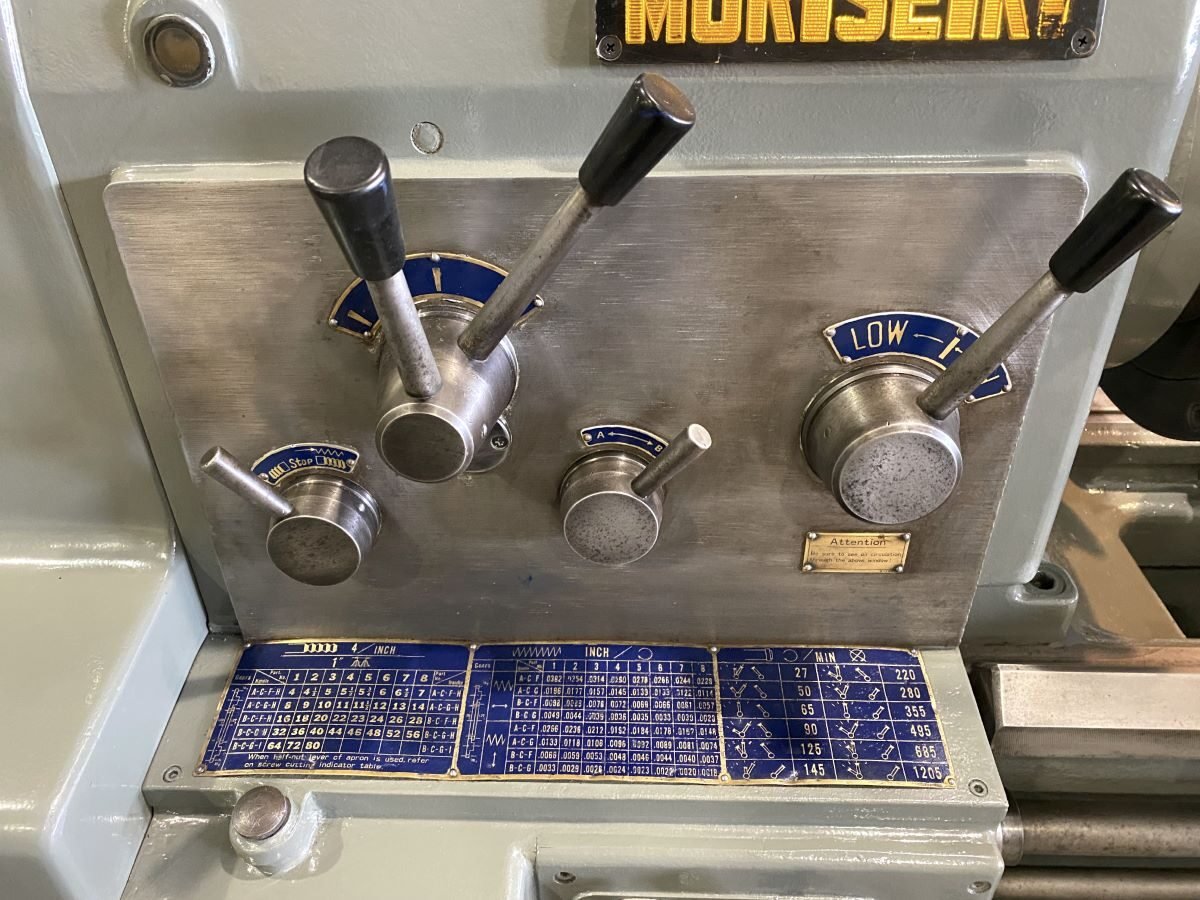

Spindle speeds (#)

(12) 27-1205

Threading

(64) 4 – 80 TPI

Feeds

(64) 0.0392 – 0.0018

Cross slide travel

13-1/2"

Compound slide travel

7-1/4"

Bed width

16-1/4"

Leadscrew diameter

1-3/4"

Leadscrew pitch

2 TPI

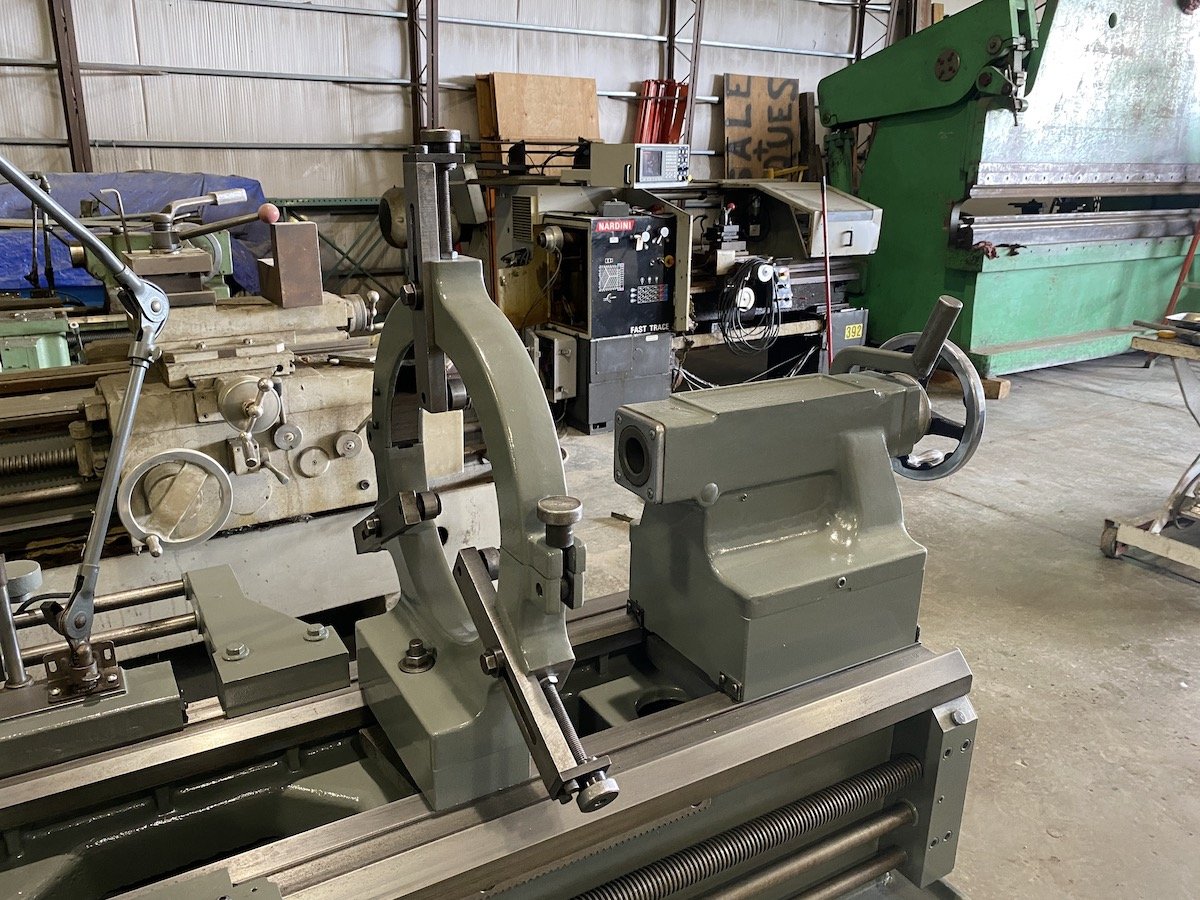

Tailstock quill diameter

3"

Tailstock quill taper

#5 MT

Tailstock quill travel

7-3/4"

Motor

15 HP (11 KW)

Volts

220 / 440

Phase

3

Cycles

60

Amps

38/19

Approximate dimensions

123" x 48 x 62" high

Approximate weight

6,500 lbs.
