Newall digital readout

Taper attachment

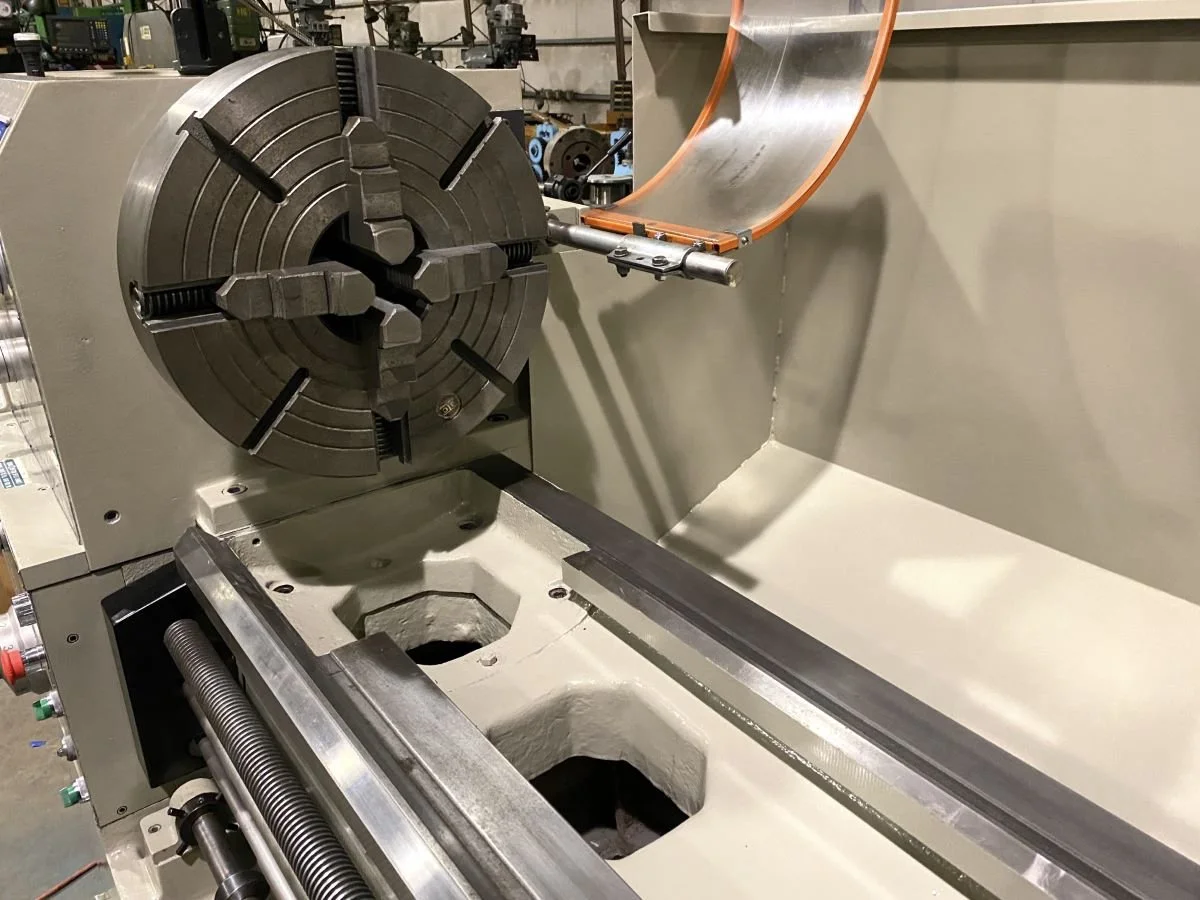

16″ 4-jaw chuck

Steady rest

Follow rest

Quick change toolpost

Thread dial

Full length splash guard

Coolant

Foot brake

Work light

Swing over bed

22"

Swing over cross slide

13.2”

Swing over gap

31”

Distance between centers

80”

Spindle nose

D1-11

Spindle bore diameter

4-1/2”

Spindle speeds

10-1000 RPM

Taper in spindle

MT #7

Longitudinal feeds

0.002 – 0.032 IPR

Cross feeds

0.001 – 0.0094 IPR

Inch threads

2-56 TPI

Metric threads

0.5 – 14 mm

Leadscrew pitch

4 TPI

Leadscrew diameter

1-1/2”"

Cross slide travel

12”

Compound slide travel

6.2"

Compound slide width

6"

Bed length

99"

Bed width

15-3/4"

Tailstock quill travel

6-1/2”

Tailstock quill diameter

3”

Tailstock quill taper

MT #5

Motor

15 HP

Volts

220 / 440

Phase

3

Cycles

60

Approximate dimensions

137” x 41” x 50” high

Approximate weight

6,380 lbs
