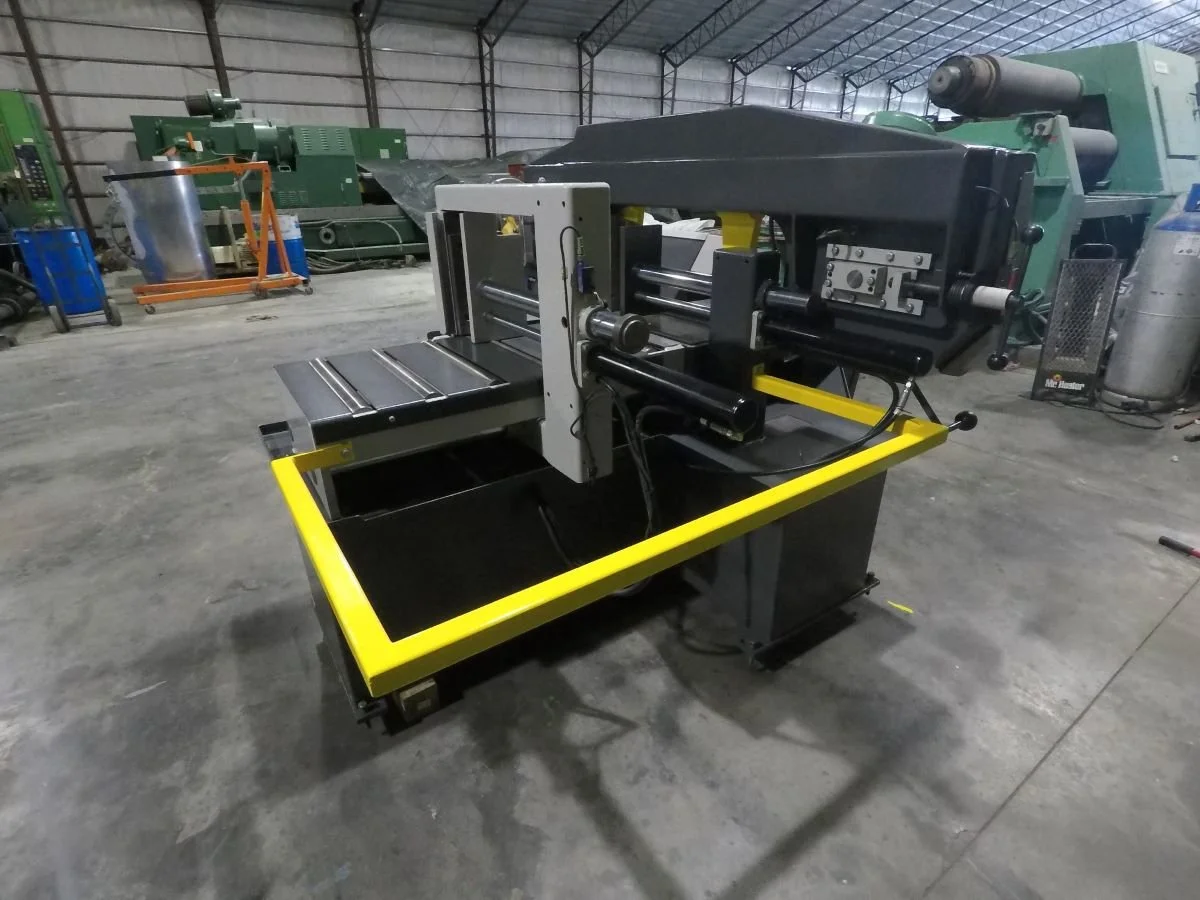

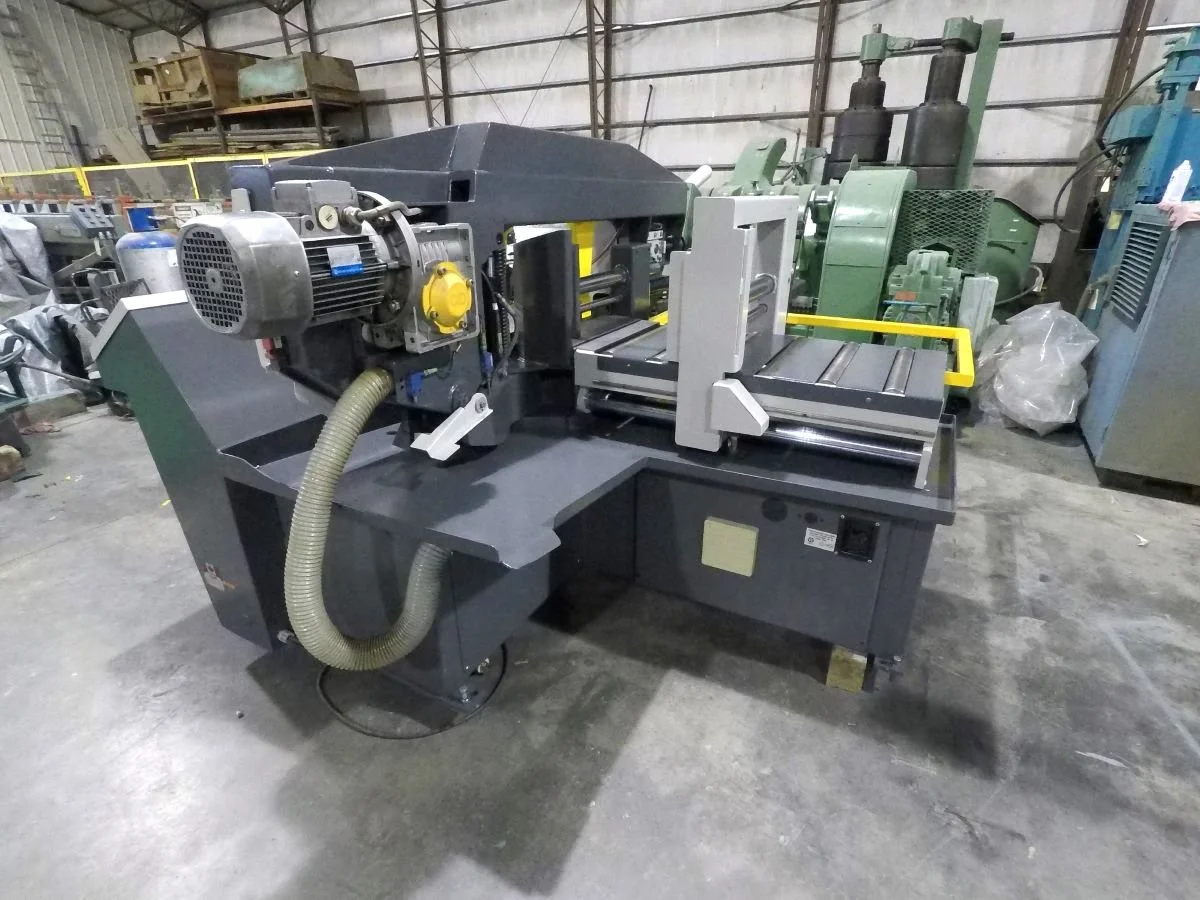

Manufacturer: Hyd-Mech

Model Number: S-20A Series II

Serial Number: 80804553FD

Model Year: 2004

Size: 13″ x 18″

Stock Number: 13331

Automatic feed table

Bundling

Mitering

Rectangles at 90 degrees

13" x 18"

Rectangles at 45 degrees

13" x 10-3/4"

Rounds at 90 degrees

13"

Rounds at 45 degrees

12"

Blade size

1" x 13' 6"

Blade speed

75 to 350 FPM

Mitering

0 to 45 degrees

Table height

31"

Work load

5,000 lbs.

Feed table stroke

0 to 29"

Motor

5 HP

Volts

480

Phase

3

Cycles

60

Full load amps

10.8

Approximate dimensions

93" x 86" x 52" high

Approximate weight

3,800 lbs.
