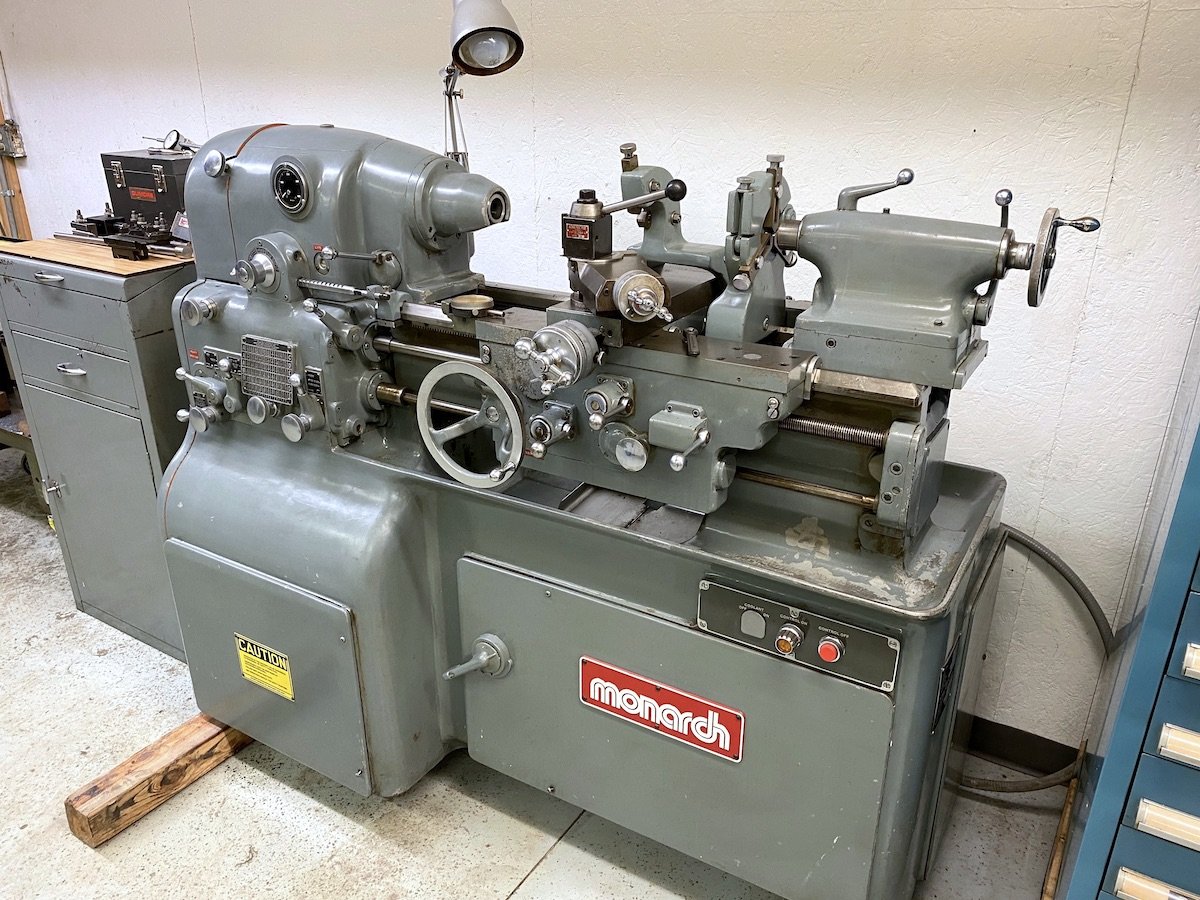

Manufacturer: Monarch

Model Number: 10EE

Serial Number: 52969

Model Year: 1982

Size / Capacity: 12.5″ x 20″

Stock Number: 13554

English-metric threading

Taper attachment

3-jaw chuck

4-jaw chuck

Quick change tool post & holders

Steady rest

Follow rest

Work light

Dial indicator

Thread dial

Collet closer & set of 5C collets

Cabinet with more miscellaneous tooling

Original operation manual

Original paint

Swing over bedways

12.5"

Swing over cross slide

7-1/4"

Distance between centers

20"

Range of spindle speeds

25 to 4000 RPM

Spindle bore diameter

1-13/32"

Center morse taper

#2

Range of threads

3 to 184 TPI

Range of mm threads(english/metric)

188 to 11.5

Number of thread changes(english/metric)

60

Number of feed changes(english/metric)

50

Bed width

10.5"

Bed depth

10.25"

Leadscrew diameter

1"

Leadscrew pitch

8 TPI

Tailstock spindle diameter

1.75"

Tailstock spindle travel

3.5"

Volts

460

Phase

3

Cycles

60

Full load amps

13

Approximate dimensions

62" x 33" x 56" high

Approximate weight

3,450 lbs.
