Manufacturer: National

Model Number: LBP-32-120

Serial Number: 12222

Stock Number: 14053

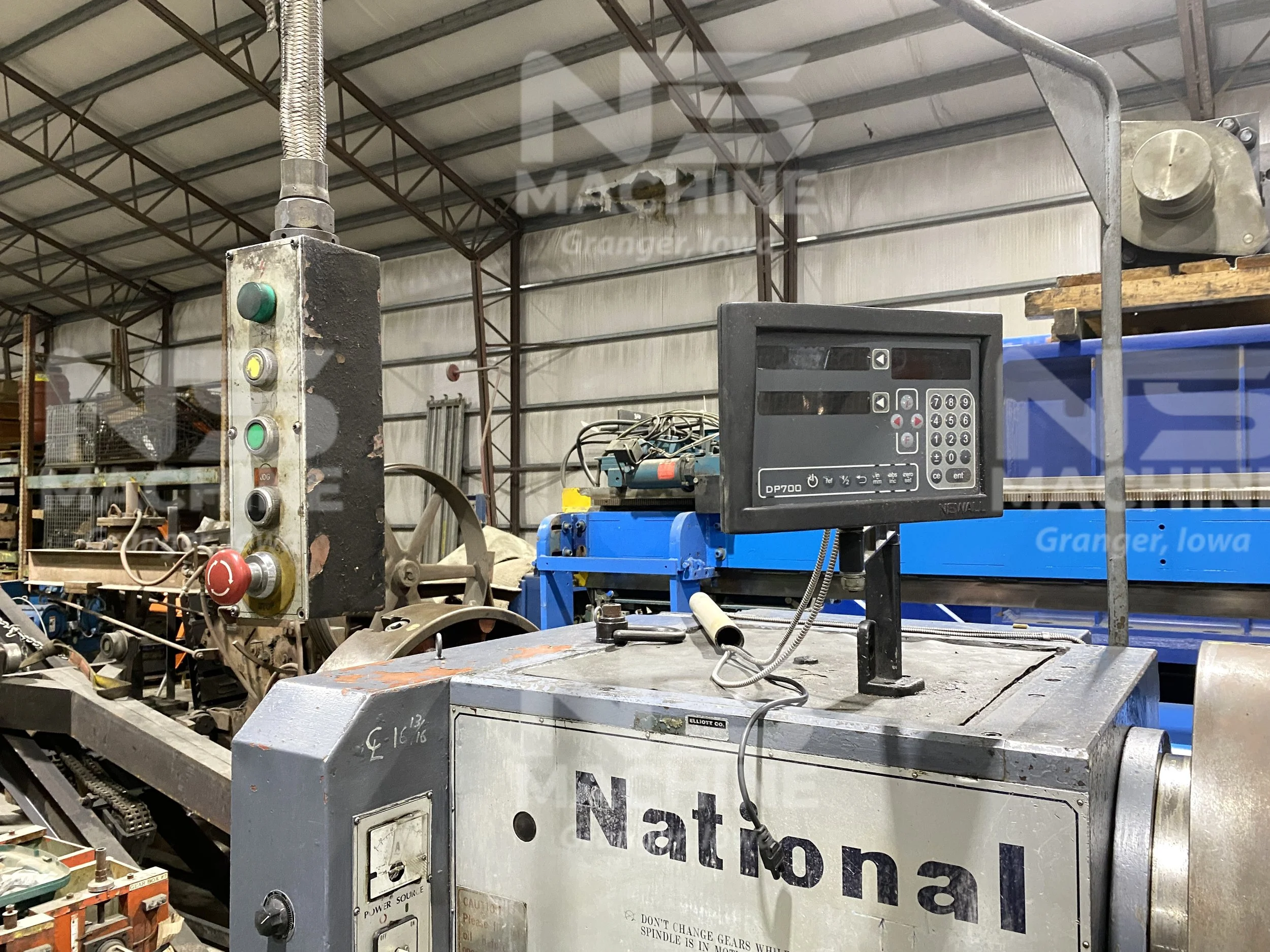

Newall DP700 2-Axis Digital Readout

Pendant control

Removable gap

24-3/4” Front 4 Jaw chuck

23-3/4 Rear 4 jaw chuck

Power rapids for longitudinal & cross

2 speed tailstock - 1/1 and 1/4

Aloris Quick Change Toolpost

Steady Rest roller type, 15” capacity

Taper attachment

Threading dial

Coolant pump

Swing over bed: 32"

Distance between centers: 120”

Swing over cross slide: 22"

Swing in gap: 55"

Length of removable gap: 10"

Spindle bore: 9"

Spindle speeds (12): 5 – 300 RPM

Inch threads (48): 1-1/4 - 27 TPI

Metric threads (48): 0.5 - 14 mm

Inch feeds (48): 0.0032 to 0.5540

Metric feeds (48): 0.081 to 2.288

Leadscrew diameter: 2"

Leadscrew pitch: 2 TPI

Tailstock taper: #6

Tailstock quill diameter: 4-1/4"

Tailstock travel: 10-1/2"

Main motor : 20 HP

Volts: 220 / 440

Phase: 3

Cycles: 60 Hz

Amps: 52 / 26

Approximate dimensions: 206" x 66" x 95" high

Shipping height: 65" (on 4" blocks w/DRO & Pendant removed)

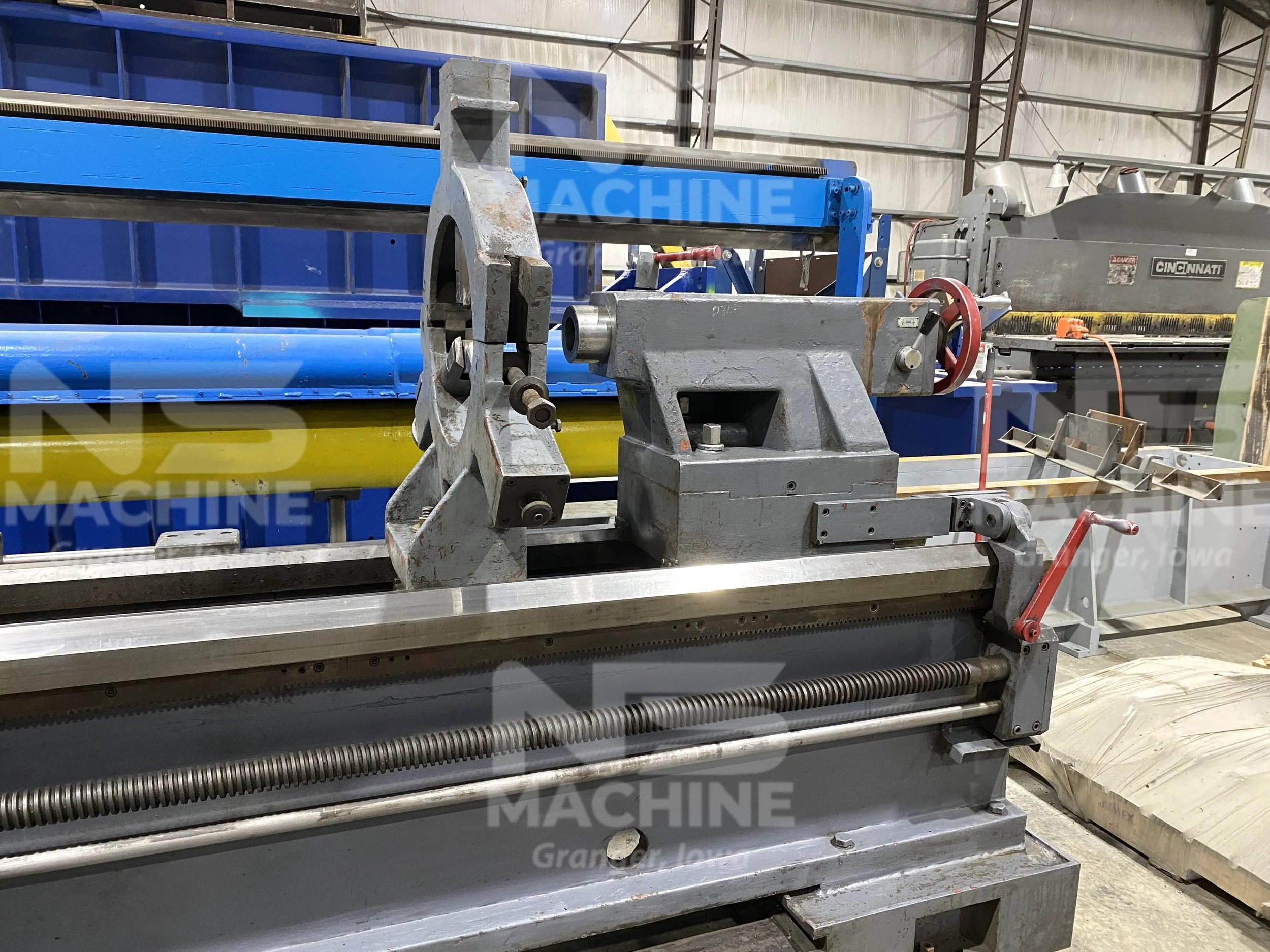

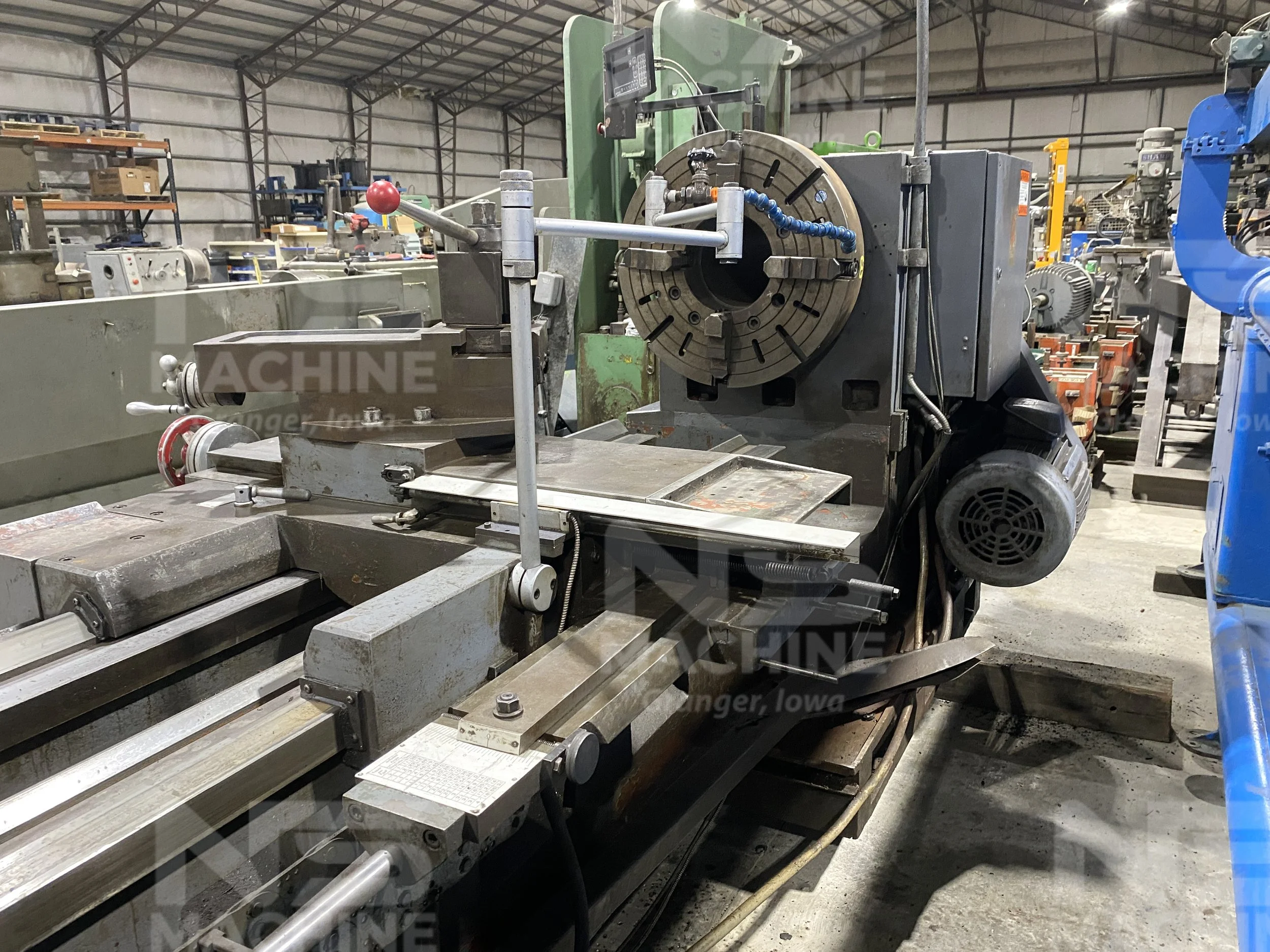

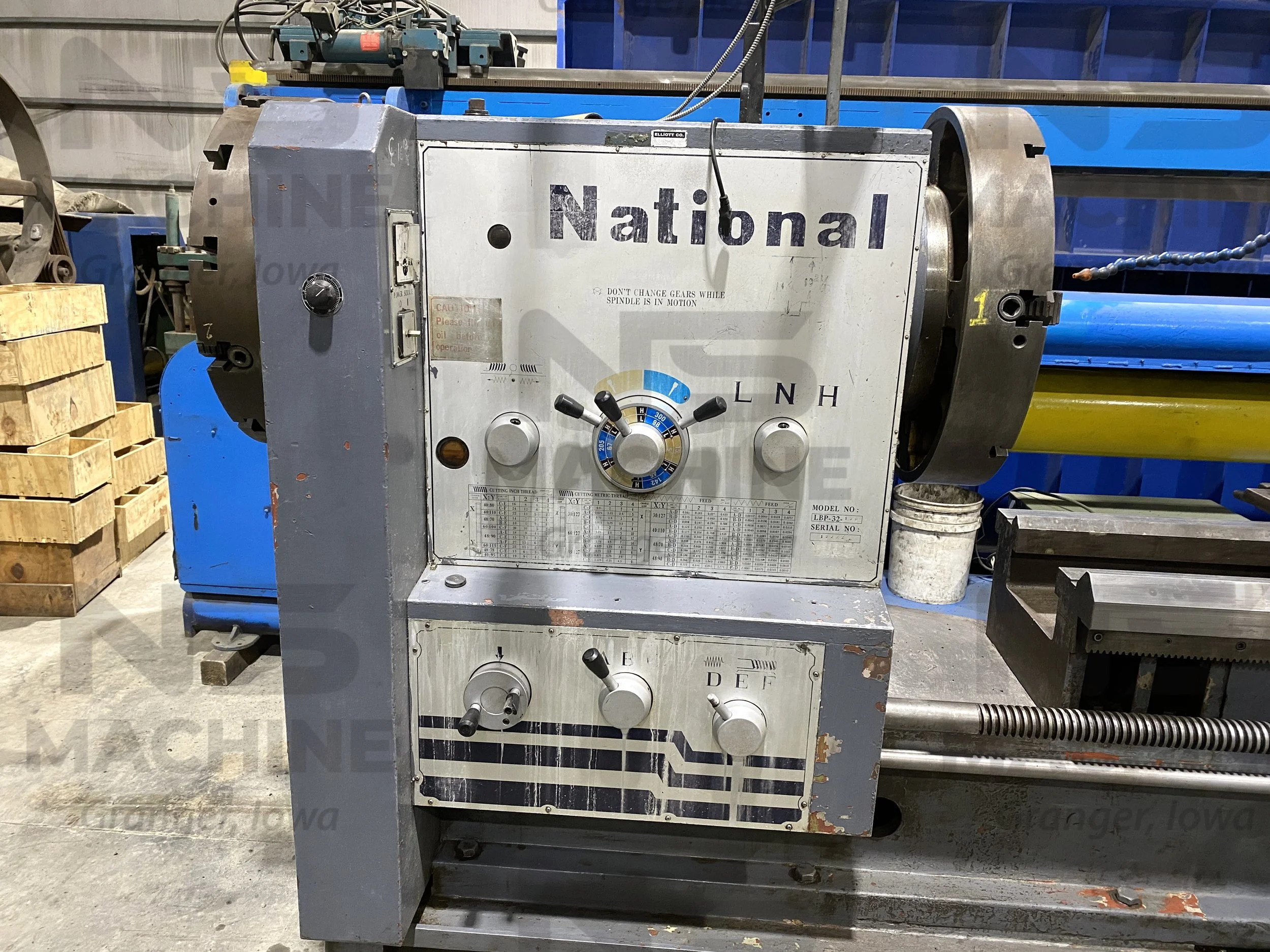

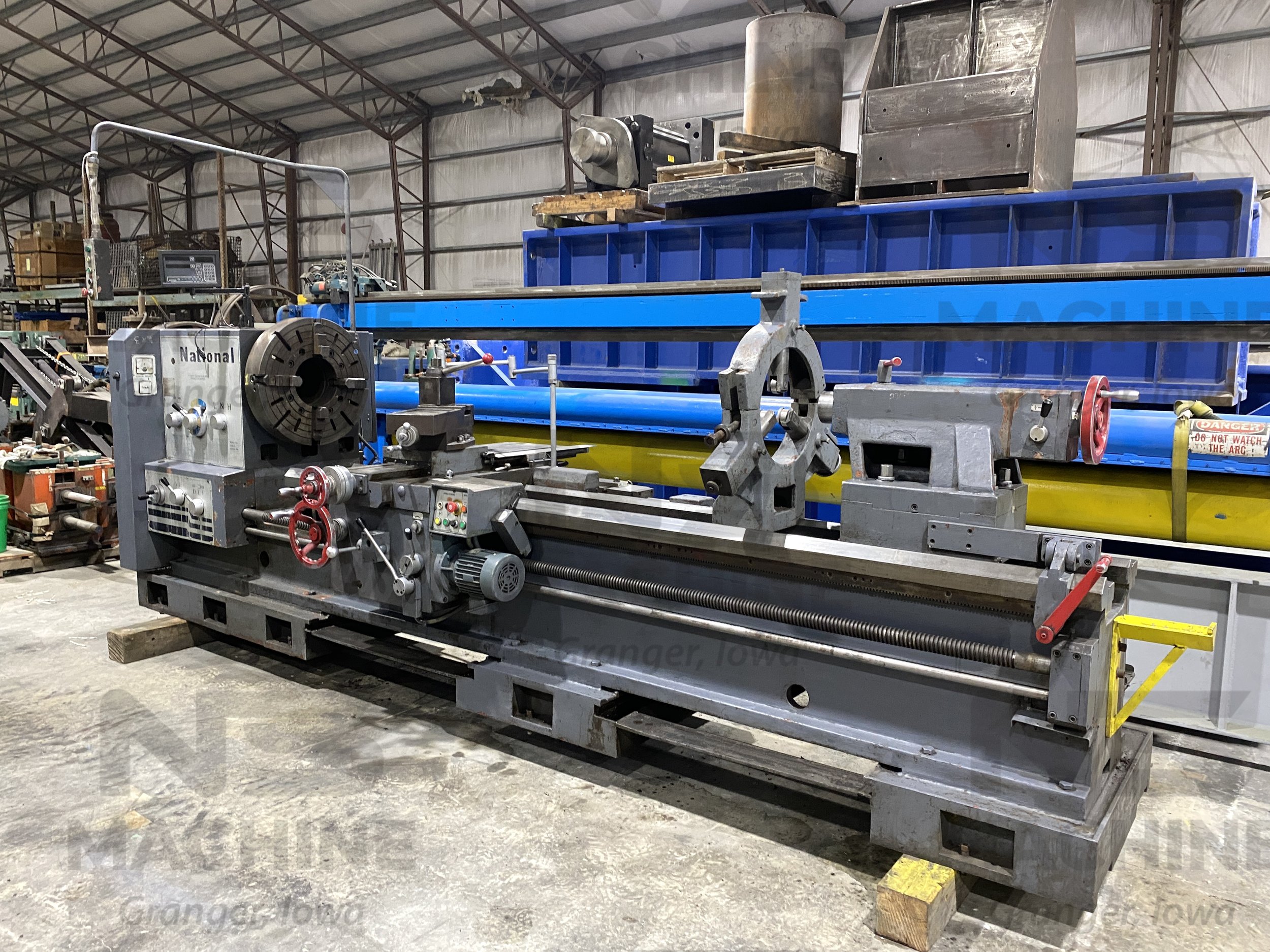

This 32” x 120” National Engine Lathe has a 9” through hole and is equipped with double chucks, Aloris quick change toolpost and taper attachment.

For questions or to schedule an inspection of this 32” x 120” National Engine Lathe, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 32” x 120” National Engine Lathe, use the “Request Quote” button on this page.
