Rebuilt main hydraulic cylinder

New top notcher blade

Cleaned, painted & cycled

30 day warranty (see full terms)

(5) work stations

(2) Joystick controls

Foot pedal control

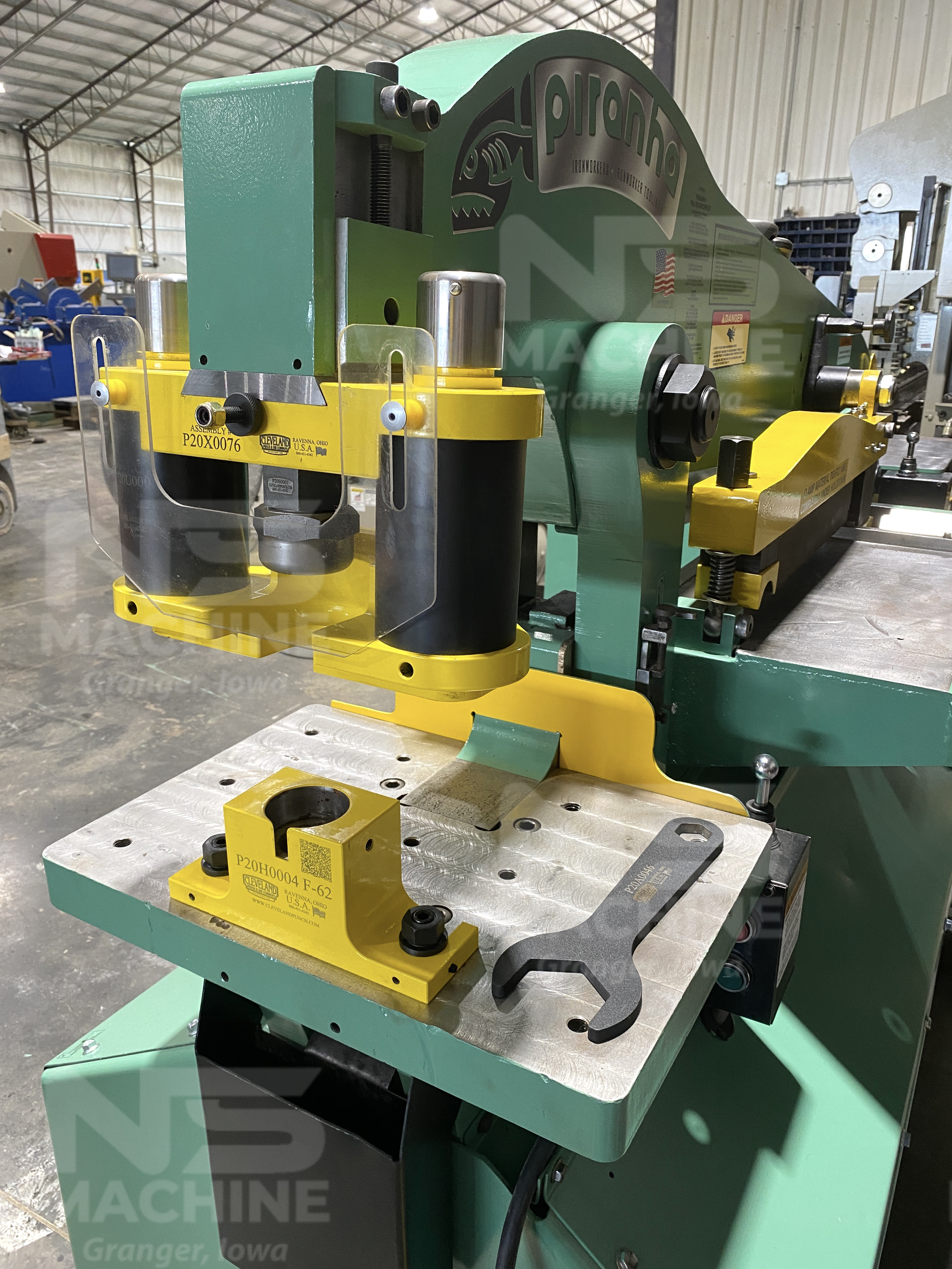

Punch/stripper & die block assembly

Chip buckets

Punching tonnage: 90

Punching capacity: 1-1/8” diameter through 1” plate

Throat Depth: 10”

Rated for mild steel: 60,000 PSI tensile strength

Round Bar Shear: 2”

Square Bar Shear: 1-3/8”

Plate Shear: 20” x 1/2”, 18” x 3/4”, 12” x 1”

Angle Shear: 6" x 6" x 5/8"

Coping / Notching: 4” x 6” x 3/8”

Motor: 10 HP / 1760 RPM

Volts: 230 / 460

Phase: 3

Cycles: 60

Amps: 39.2 / 19.6

Approximate dimensions: 91" x 36" x 60" high

Approximate weight: 5,800 lbs

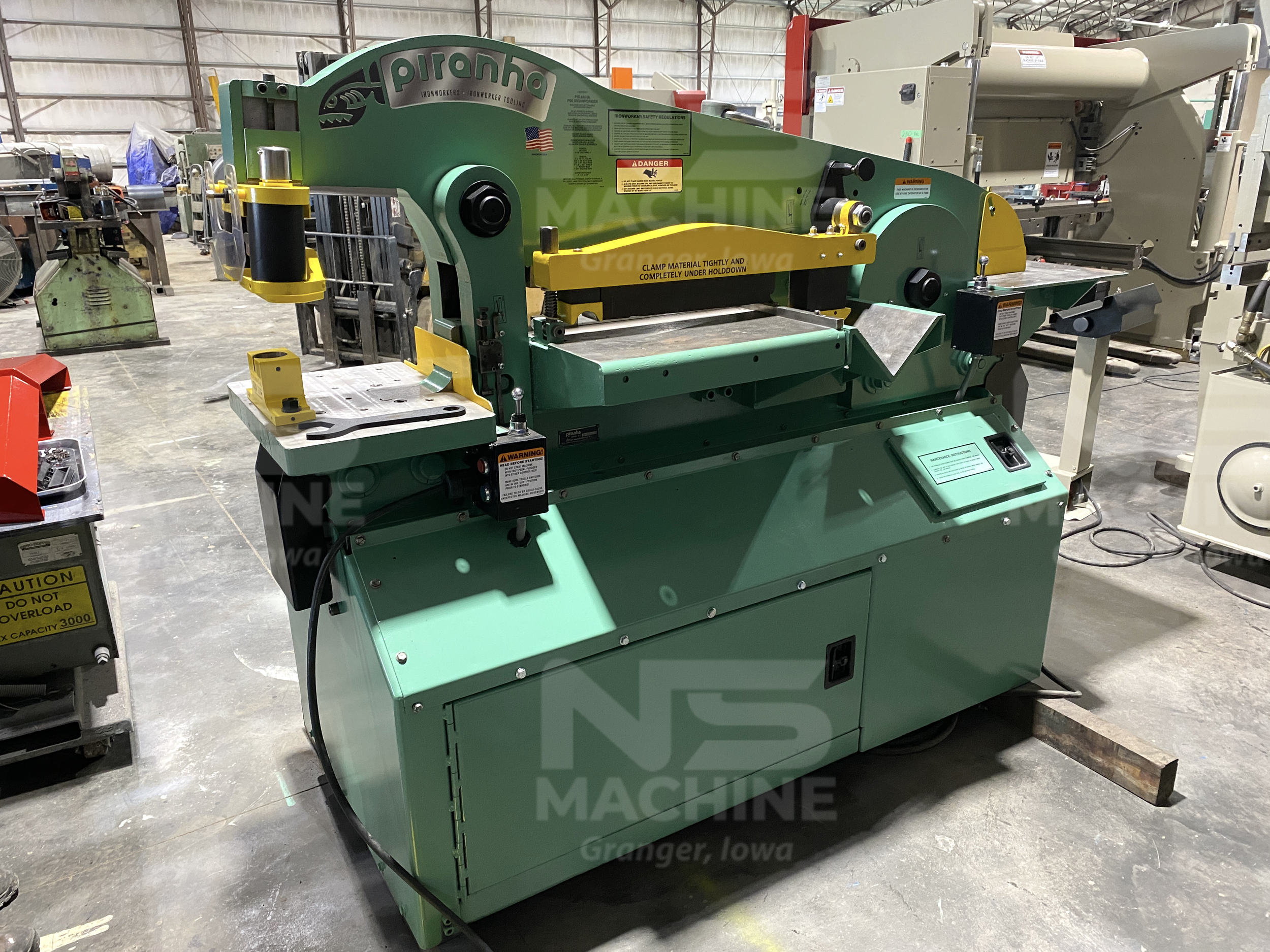

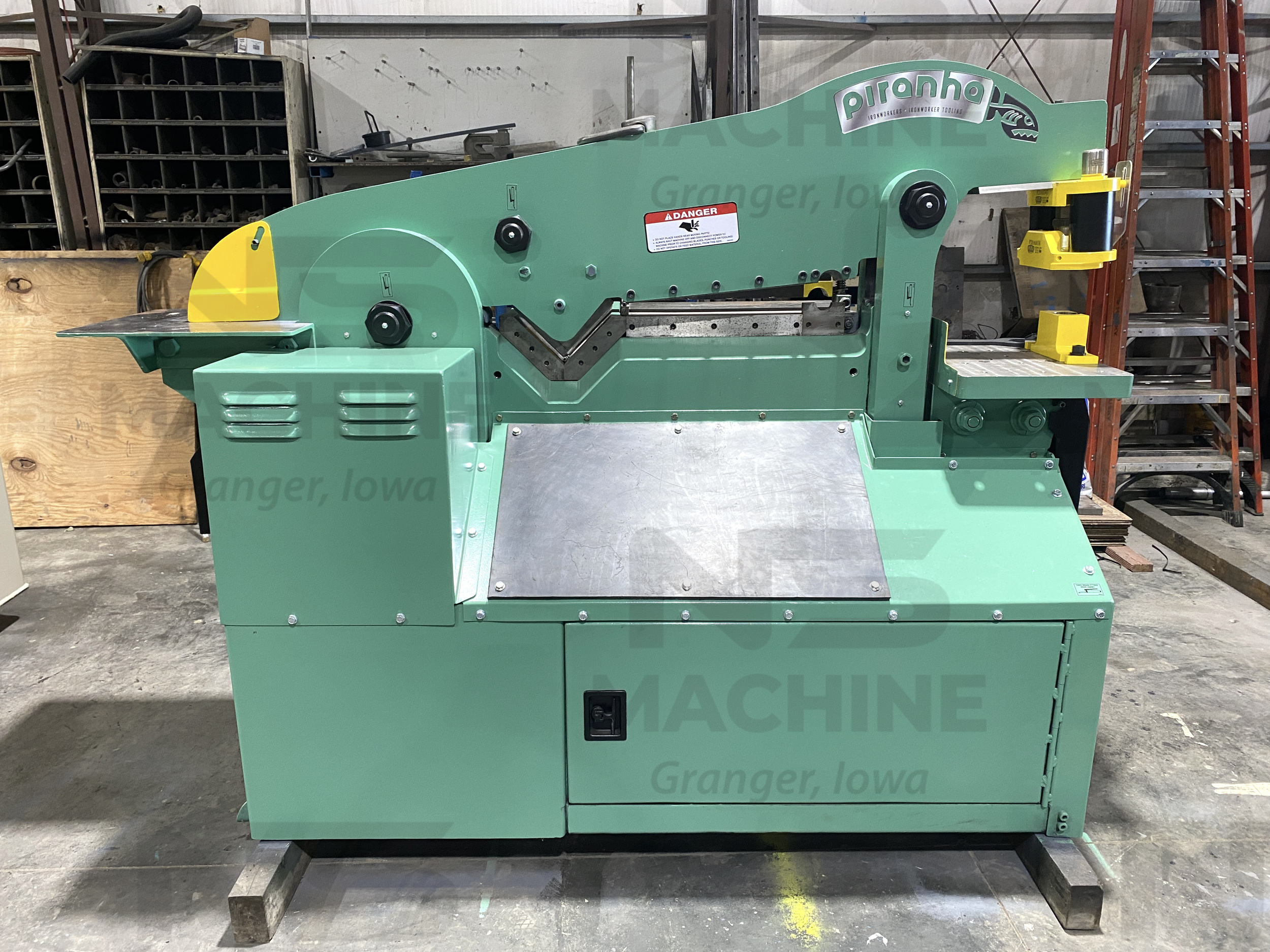

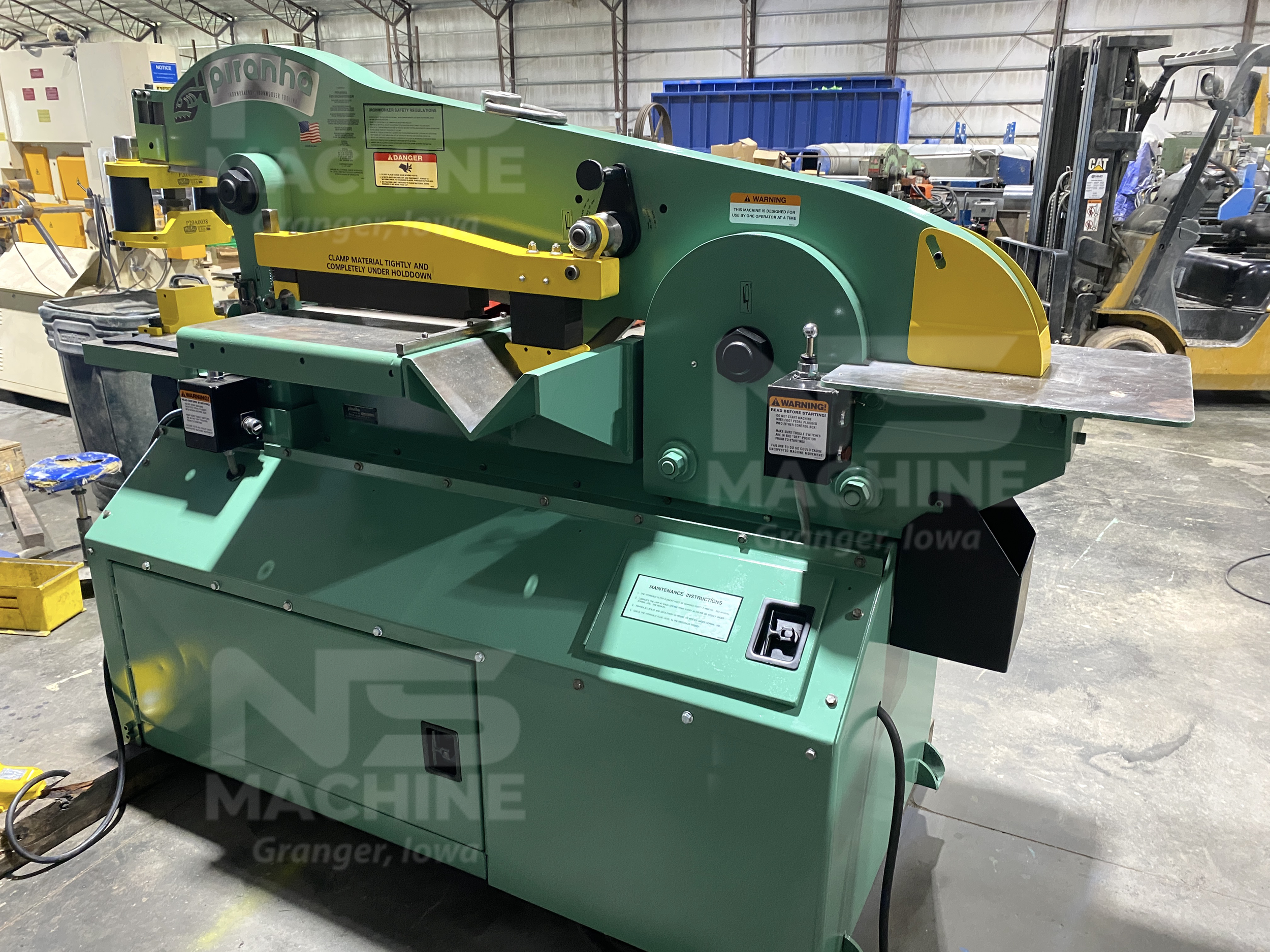

This 90 ton Piranha Hydraulic Ironworker has been refurbished with new cylinders seals and and a new top notching blade. Cleaned, painted & cycled.

For questions or to schedule an inspection of this 90 ton Piranha Hydraulic Ironworker, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 90 ton Piranha Hydraulic Ironworker, use the “Request Quote” button on this page.
