121 Ton Geka Hydracrop 110/A Ironworker
$29,950
-
Manufacturer: Geka
Model Number: Hydracrop 110/A
Serial Number: 21717
Model Year: 2007
Stock Number: 14003
-
Dual operator ironworker
Original Paint
(2) independent cylinders
(2) foot pedal controls
(5) work stations
- Punch station
- Angle shear station
- Section shear station
- Flat bar shear station
- Coper station
40" Electric "flip stop" for shearing stations
Round/square bar knives for section shear station
C-channel knives for section shear station (3", 4")
Pipe notching attachment (1-3/4")
Miscellaeous punch tooling
-
Tonnage: 121 tons (110 metric)
Punch capacity: 1-1/2" through 3/4"
Punch throat depth: 12"
Punch stroke: 3"
Punch work table height: 45.5"
Angle shear capacity, 90 degrees: 6.5" x 6.5" x 1/2"
Angle shear capacity, 45 degrees: 3" x 3" x 5/16"
Flat bar shear capacity: 24" x 5/8"
Flat bar shear work table height: 38-1/2"
Round bar shear capacity: 2"
Square bar shear capacity: 2"
4" C-channel capacity: 4" x 5.4 lb/f
3" C-channel capacity: 3" x 4.1 lb/f
Coper capacity: 4" x 2" x 1/2"
Coper & flat shear stroke: 4.5"
Coper table work height: 38-1/4"
Motor: 7.4 HP (5.5 KW)
Volts: 240 / 480
Phase: 3
Cycles: 60
Amps: 21.2 / 10.6
Approximate dimensions: 78" X 35" X 77" high
Approximate weight: 5,500 lbs.
-

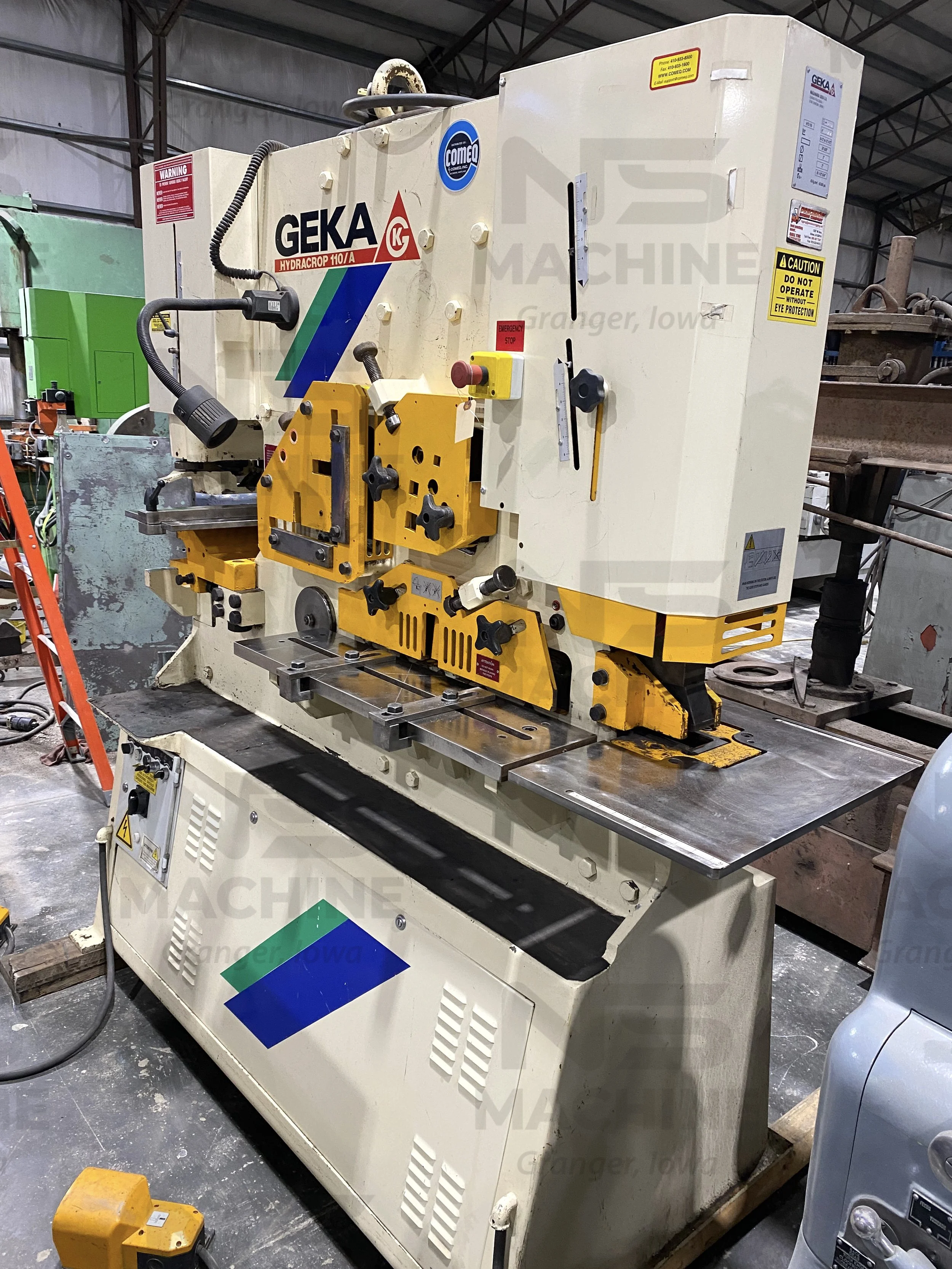

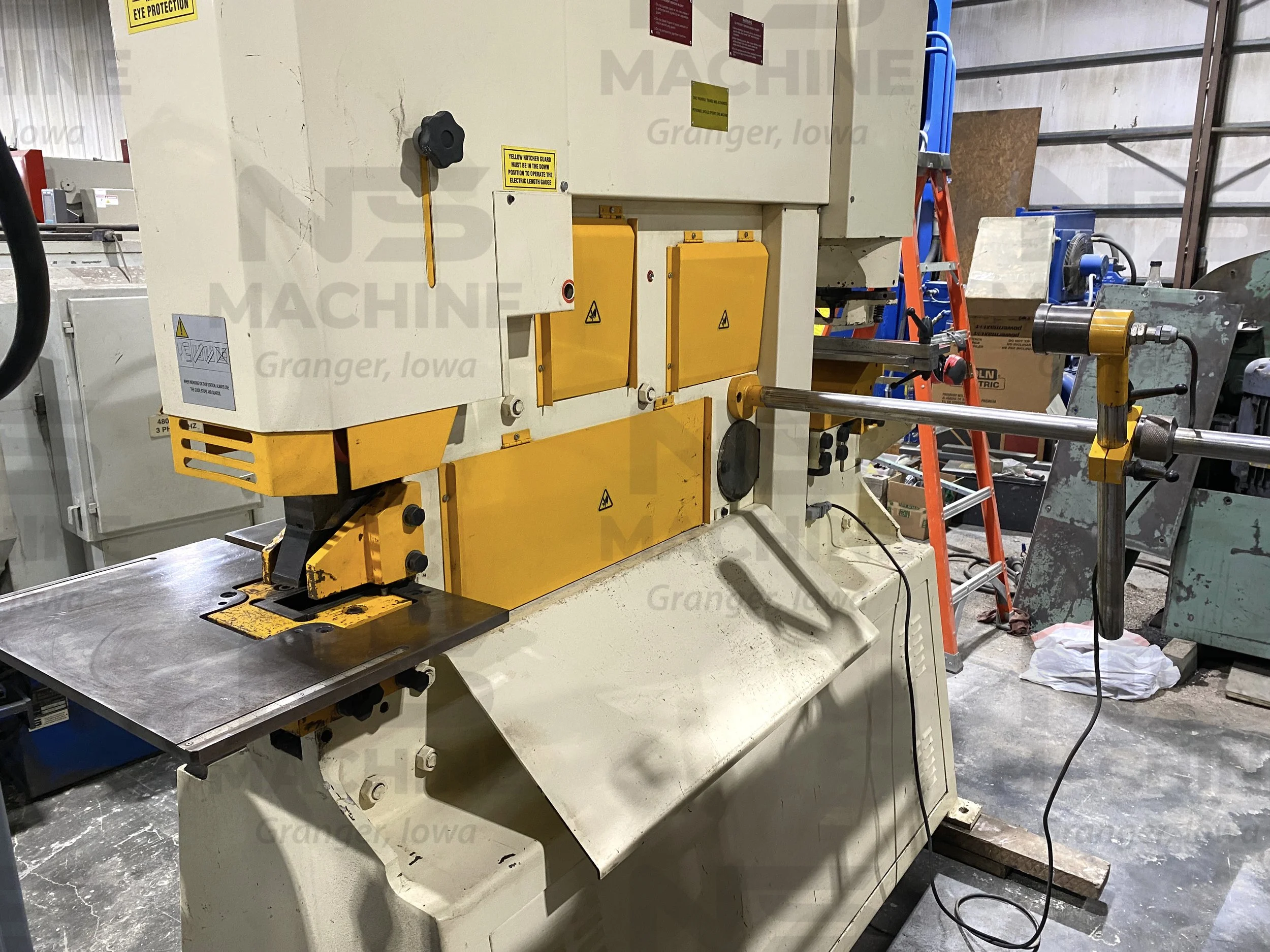

This 121 Geka Hydracrop 110/A Hydraulic Ironworker is a 2007 model in excellent condition with original paint. It features (2) hydraulic cylinders for simultaneous operation by (2) operators. Five (5) work stations include a punch, coper/notcher, angle shear, section shear and plate shear. It is equipped with a 40” electric “Flip Stop”, a 1-3/4” pipe notching attachment, C-channel section blades and miscellaneous punch tooling.
For questions or to schedule an inspection of this 121 Geka Hydracrop 110/A Hydraulic Ironworker, please call 515-999-2999 or email your request to sales@nsmachine.com. To request a quote for this 121 Geka Hydracrop 110/A Hydraulic Ironworker, use the “Request Quote” button on this page.
