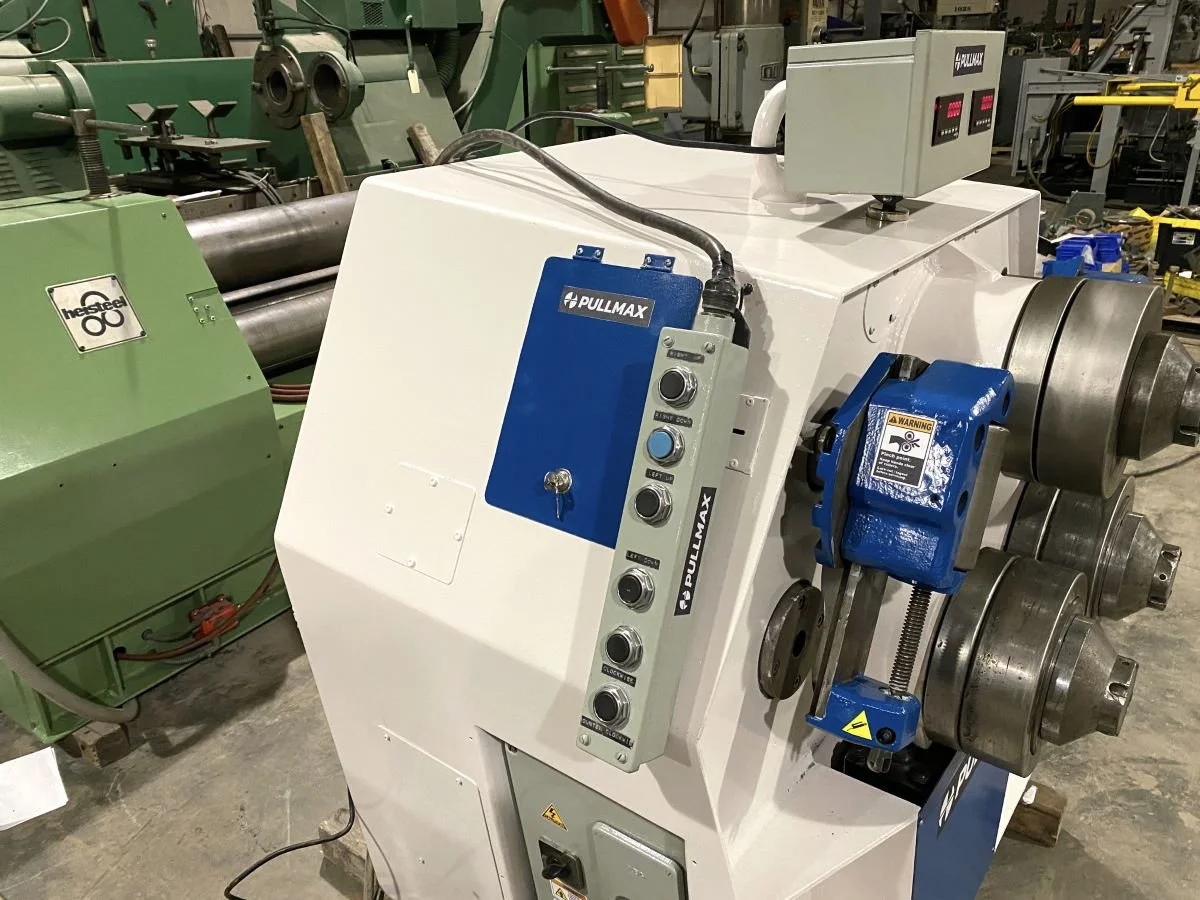

Manufacturer: Pullmax

Model Number: Z-31

Size / Capacity: 3″ x 3″ x 3/8″

Stock Number: 13594

NEW encoders and digital readout display

Manual guide roll adjustment

Adjustable guide rolls

Hydraulic adjustment of upper roll

Horizontal or vertical use possible

Handheld pendant control with push buttons

Bending roll diameter

9-13/16"

Bending rolls speed

10.2 RPM

Rolling speed

26 FPM

Max. bending force

24,200

Capacities rated for:

Mild steel

...angles, max. (leg out)

3" x 3" x 3/8" – 36" dia.

...angles, min. (leg out)

1” x 1” x 1/4” – 14” dia.

...angles, max. (leg in)

2.5" x 2.5" x 3/8" – 48" dia.

...angles, min. (leg in)

1” x 1” x 1/4” – 14” dia.

...tees, max. (leg out)

4” x 3” x 3/8” – 23” dia.

...tees, min. (leg out)

3/4” x 3/4” x 1/8” – 14” dia.

...tees, max. (leg in)

4” x 3” x 3/8” – 34” dia.

...tees, min. (leg in)

3/4” x 3/4” x 1/8” – 14” dia.

...flats, max.

5” x 3/4” – 16” dia.

...squares, max.

1-3/4” x 1-3/4” – 16” dia.

...rounds, max.

2” solid bar- 16” dia.

...tubing, max.

3” / 2.704” – 30” dia.

...tubing, min.

3/4” – 12” dia.

...I-beam, max.

4” x 2-5/8” – 40” dia.

...channel, max. (leg out/leg in)

5” x 1-3/4” – 32” dia.

Main Motor

5.5 HP

Hydraulic motor

2.4 HP

Approximate dimensions

40" x 44" x 50"

Approximate weight

3,770 lbs
