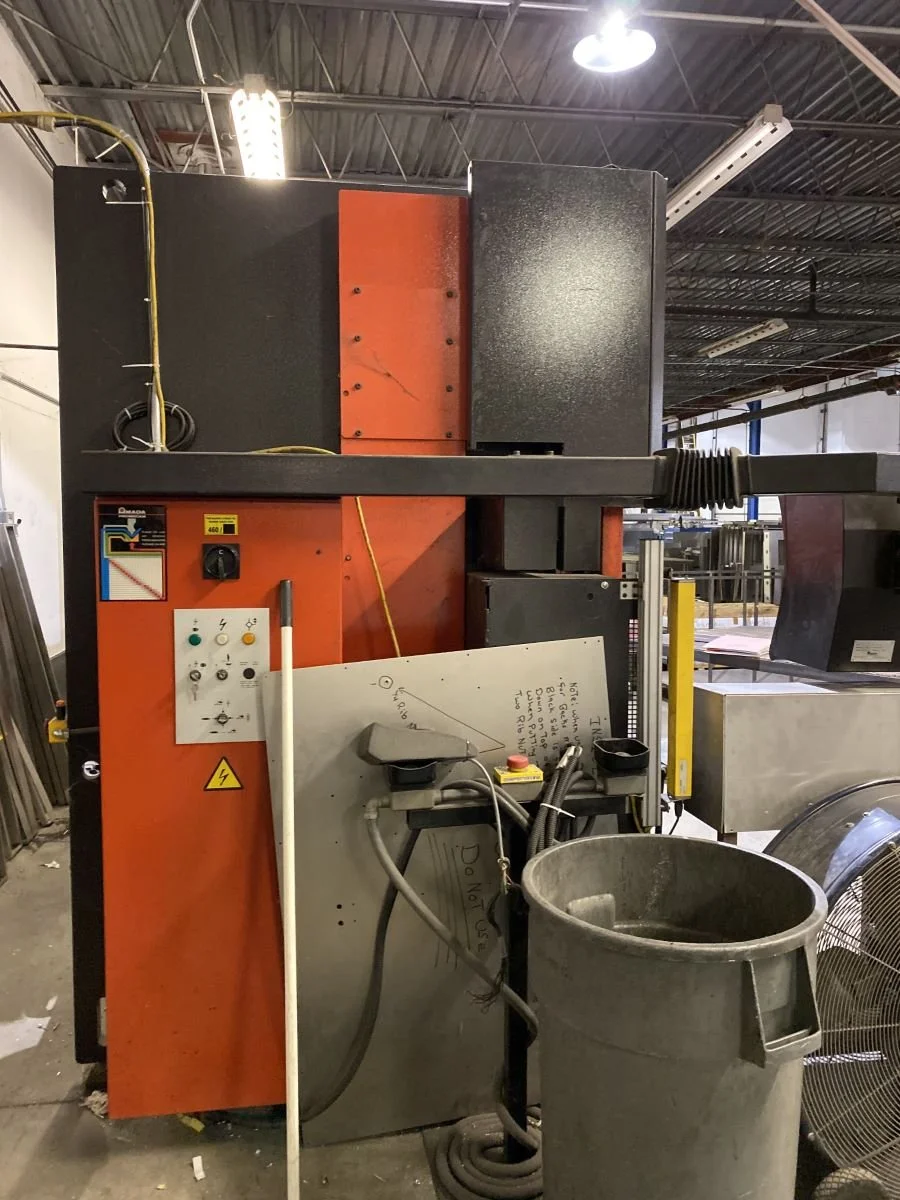

Manufacturer: Amada

Model Number: HFBO 170-40

Model Year: 1995

Size / Capacity: 187 tons

Stock Number: 13480

8-axis Operateur CNC control

6-axis CNC back gauge

Light curtains

Dual foot pedal control

Tonnage

187.4 (170 metric)

Bed length

166.5" (4230 mm)

Bed width

7.1" (180 mm)

Distance between housings

148.0" (760 mm)

Stroke

7.1" (180 mm)

Open height

17.7" (450 mm)

Throat depth

16.1" (410 mm)

Bed height

37.8" (960 mm)

Approach speed

236.4 IPM (100 mm/s)

Pressing speed

2.6 IPM – 18.9 IPM (1 – 8 mm/s)

Return speed

2.4 IPM – 189 IPM (1 – 80 mm/s)

Oil capacity

39.6 gallons (150 L)

Max. pressure

4467 PSI (308 Bar)

Approximate length

185.8" (4720 mm)

Approximate width

82.1" (2085 mm)

Approximate height

112.0" (2870 mm)

Motor

14.75 HP (11 Kw)
