10′ x 1/2″ Roundo Hydraulic Plate Bending Roll | Model PS-255/10
sold
-
Manufacturer: Roundo
Model Number: PS-255/10
Serial Number: 976680
Model Year: 1997
Size / Capacity: 10′ x 1/2″
Stock Number: 13677
-
Double initial pinch
Hydraulic roll drive
Hydraulic roll positioning
Hydrauilc drop end
Wire encoders for roll positioning

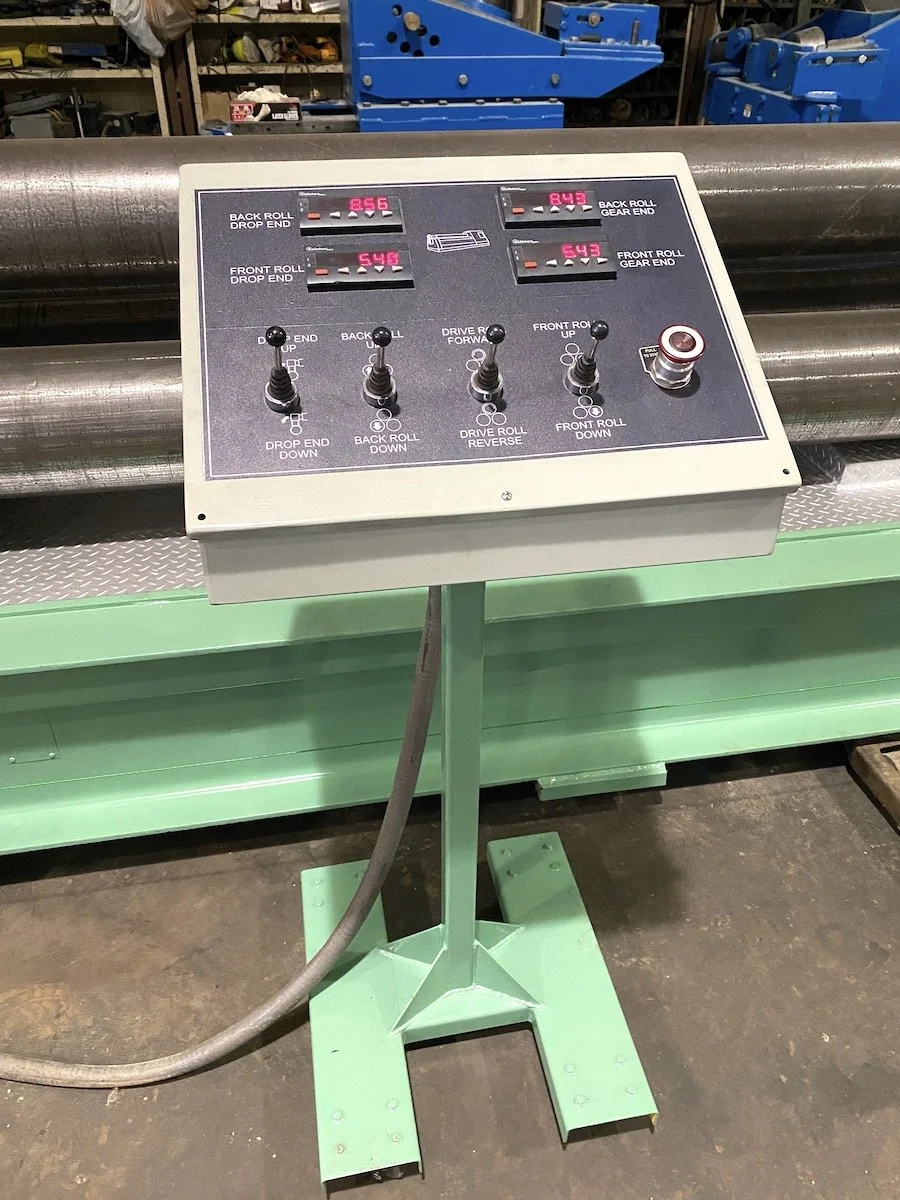

Pedestal control station includes:
Heavy duty stand with casters
(4) Joystick controls
(4) Digital roll position indicators
Quick disconnect
Emergency stop button
Push-pull style Stop/Start button
Emergency stop safety switches & cables – front and back
Emergency stop buttons on machine – front and back
-
Rated capacity
10' x 1/2"
Capacity @ over 10' to 14' rolling diameter
10' x 9/16"
Top roll diameter
10.04" (255 mm)
Motor
7.5 HP
Volts
208-230/460
Phase
3
Cycles
60 Hz
Amps
21-20/10
Approximate dimensions
15' x 5' 2" x 4' 2" high
Approximate weight
17,000 lbs.
