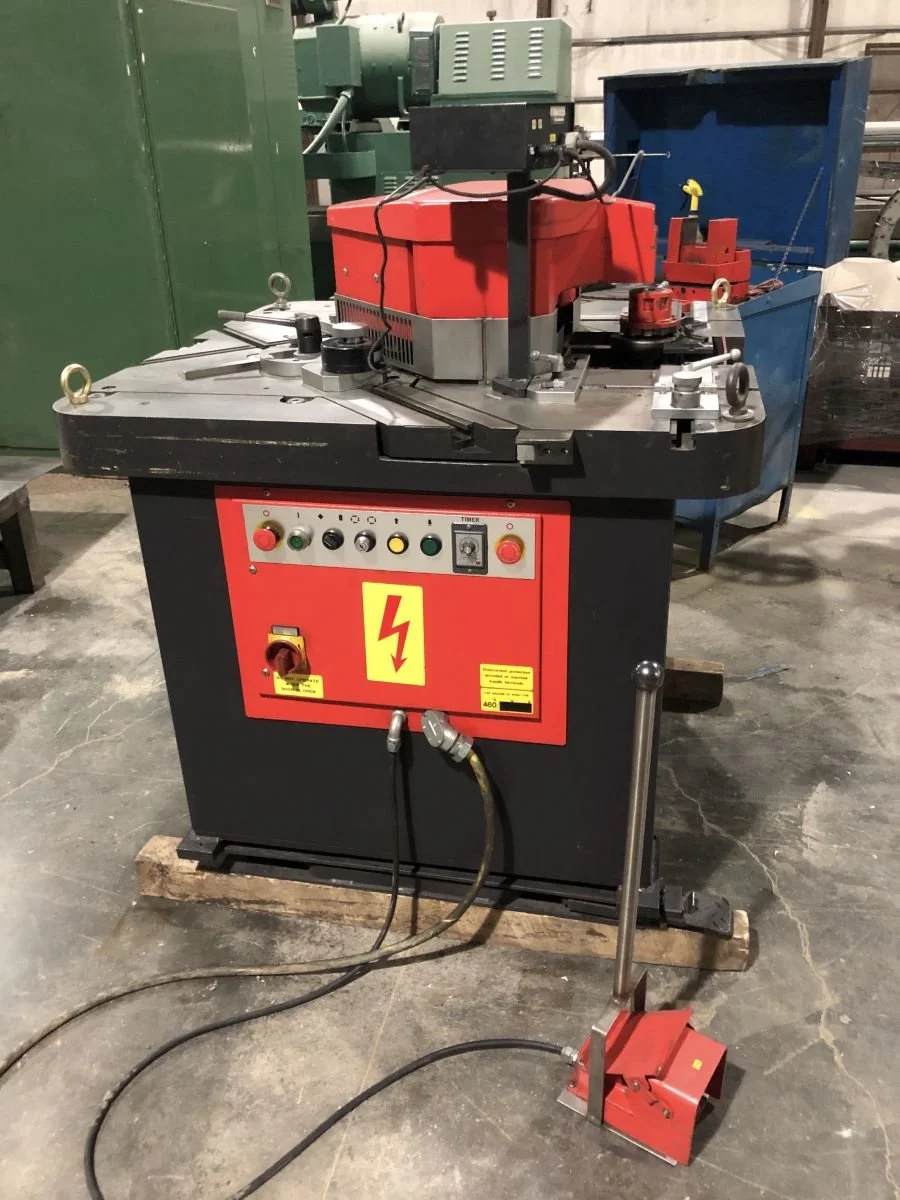

Manufacturer: Amada

Model Number: CSHW-220

Serial Number: 220011373

Model Year: 1991

Size / Capacity: 1/4″ x 8″ x 8″

Stock Number: 13488

Coping Attachment

Digital readout system (with encoders)

Electric Foot Switch

Start/Stop Push Buttons

Single/Continuous Selector Switch

Blade Clearance Adjustment

Solid State Timer

Side Gauge Attachemnt

Part Chute In Base

One Shot Lube

Tonnage

27

Maximum Sheet Thickness

0.236"

Strokes Per Minute, Corner notcher

34 (50Hz), 40 (60Hz)

Strokes Per Minute, Edge notch

35 (50Hz), 42 (60Hz)

Stroke Length, Corner notcher

1.02"

Stroke Length, Edge notch

0.94"

Notching Dimensions, Corner notcher

8.66" x 8.66"

Notching Dimensions, Edge notch

1.97" x 3.94"

Oil Pressure

2700 PSI

Oil Tank Capacity

14.5 gallons

Hydraulic pump motor

5 HP (3.7 kW)

Power Required

5 KVA

Motor

5 HP

Volts

230 / 460

Phase

3

Cycles

60

Amps

12.5 / 6.7

Approximate dimensions

45" x 53" x 67"

Approximate weight

3,600 lbs
